Quick Fuel Technology 34-104 Fuel Bowl Extension Kit - Manual

270-793-0900
www.quickfueltechnology.com
P/N 34-104
Installation Instructions for 34-104 Fuel Bowl Extension Kit
Thank you for purchasing our Fuel Bowl Extension Kit.
1. Place the fuel bowl so the opening is facing down on the workbench. With a small punch drive the
roll pin that retains the operating arm out of the accelerator pump housing. Install the bent pump arm
supplied with the angled section facing away or pointing down. Tap in the original roll pin with a small
punch until the roll pin is just about flush with the housing (see illustration below).
2. Install the metering block gasket and fuel bowl gasket on the metering blocks.
3. Install the second fuel bowl gasket on the fuel bowl extension. Note the location of the accelerator pump
channel and ensure that it will not be obstructed.
4. Place the metering block on the main body, install the fuel bowl extension , then install the fuel bowl (be sure
the accelerator pump operating arm is orientated correctly over the fuel bowl pump arm). Install the blue
nylon gaskets, insert the supplied fuel bowl screws through the fuel bowl, fuel bowl extension, and
metering block. Tighten the fuel bowl screws in criss-cross sequence.
5. It may be necessary to re-adjust the accelerator pump orientation and over-ride spring adjustment. With the
carburetor inverted, check the alignment of the fuel bowl accelerator pump arm to be sure it is centered
on the adjustment bolt head. If necessary re-align with an adjustable wrench or suitable pliers that will not
mar the finish. Once aligned, check the pump over-ride adjustment. There should be tension on the fuel
bowl pump arm at idle and some clearance at wide-open throttle. The recommended clearance at wide
open is .015”. The clearance does not have to be exact; the primary reason for this measurement is to
prevent the pump arm from bottoming out against the bowl. This could possibly result in the accelerator
pump housing loosening up over time resulting in a fuel leak.
6. Once the engine has been heat cycled once or twice, re-tighten the fuel bowl screws. The non-stick gaskets
will compress relaxing the original torque value on the fuel bowl screws. Only one re-tightening procedure
should be necessary once the gaskets have taken a “set” from compression.
We thank you for purchasing Quick Fuel Technology products. We are passionate about about our products and
your performance - if you are experiencing any difficulty in your installation or are having other issues please call
our technical serivce phone line at 270-793-0900. Our business hours are M-F 8:00 am - 5:00 pm Central Time.
©2010 QUICK FUEL TECHNOLOGY 99-34-104

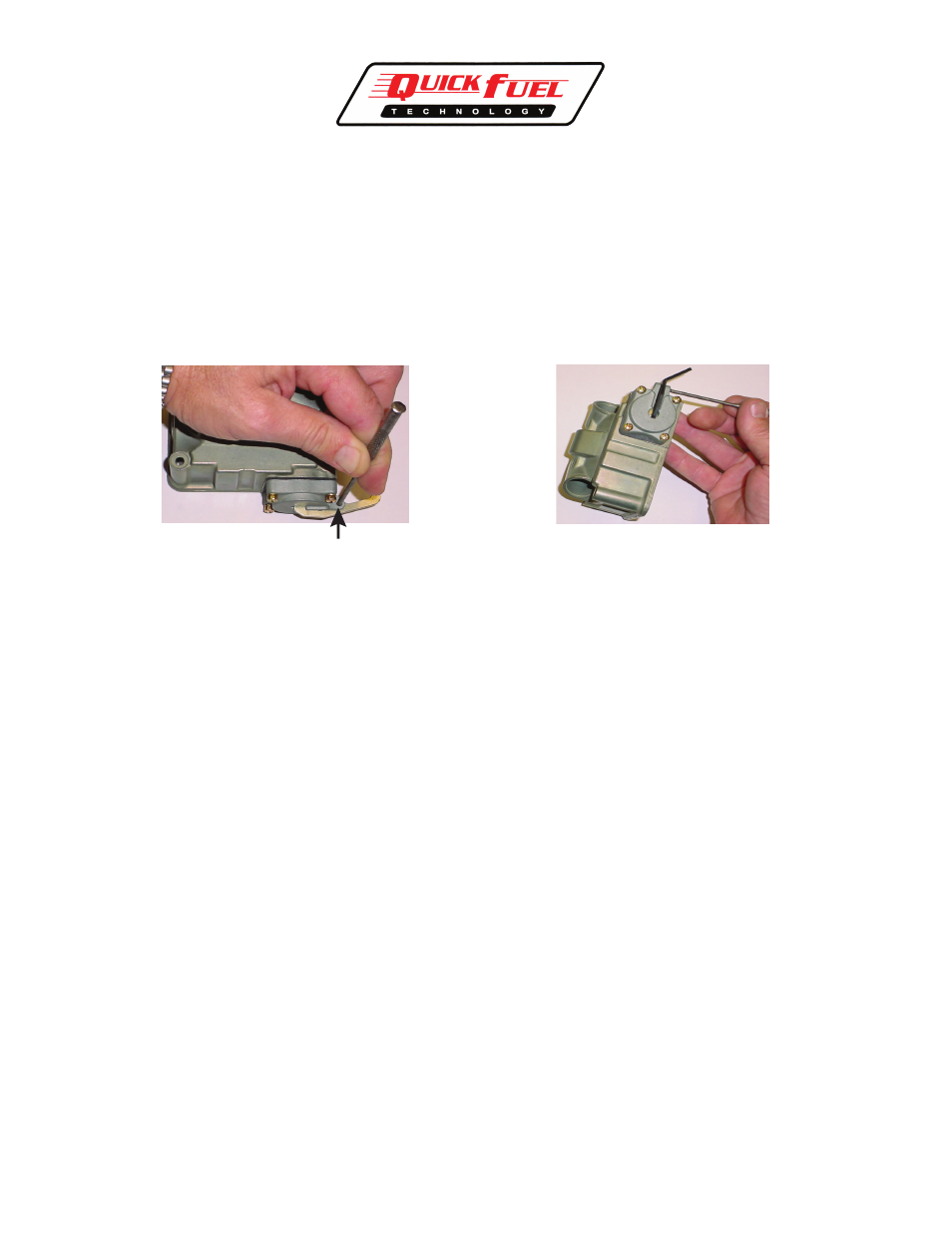

Reinstall roll pin with new pump arm as shown Remove roll pin with small punch
