18
MAXIMIZER-II rev A
6 6 . . 8 8 W W O O T T S S w w i i t t c c h h

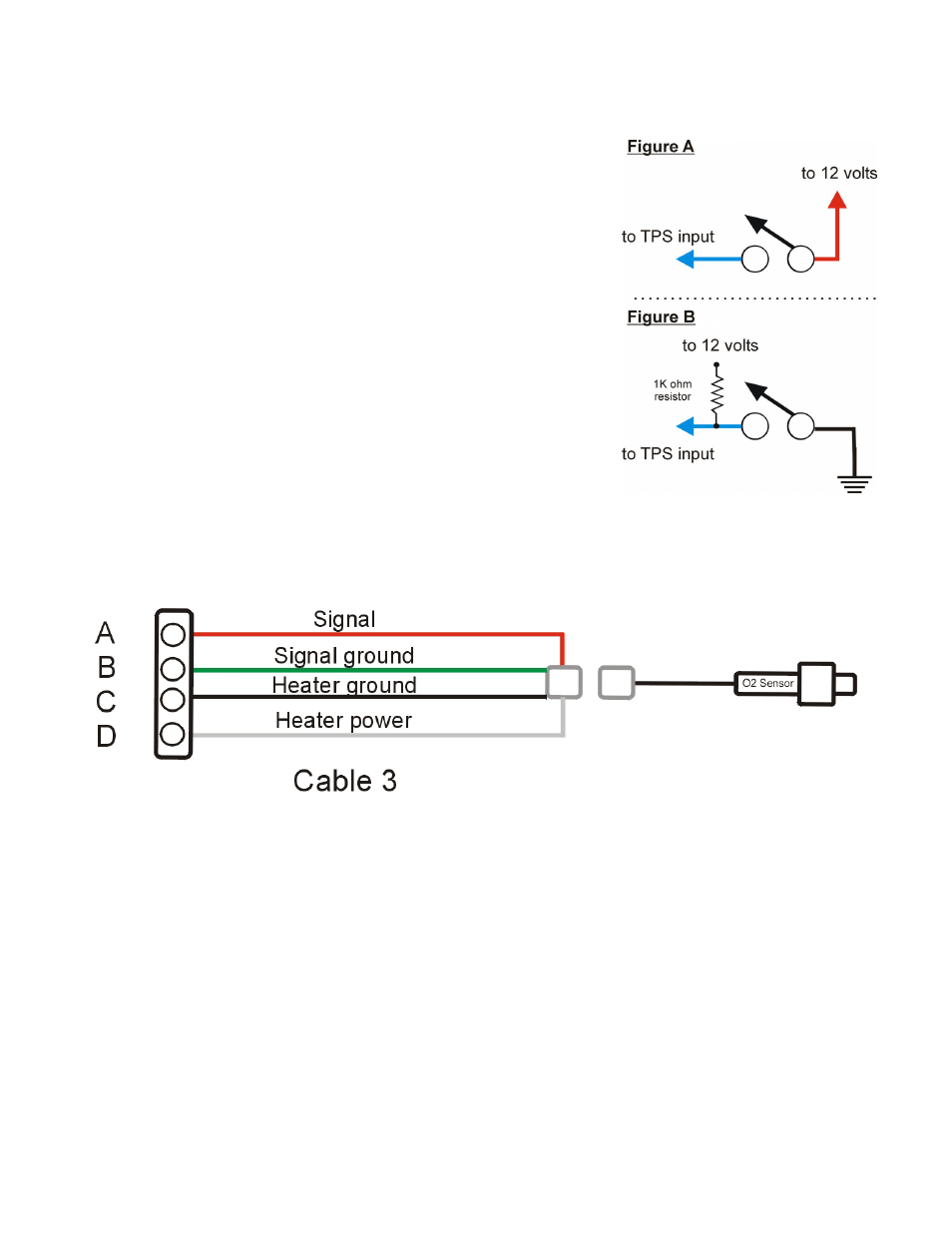

Figure A illustrates how to connect a “HOT” wide-open-throttle
switch. Set the WOT setting in the MAXIMIZER-II configuration to
4.5 volts, the TPS TRIGGER to 95%, and the IDLE to 0.5 volts.
Figure B illustrates how to connect a “GROUND” wide-open-
throttle switch. Set the WOT setting in the MAXIMIZER-II
configuration to 0.5 volts, the TPS TRIGGER to 95%, and the
IDLE to 4.5 volts.
Note: The 1K ohm resistor is included in the kit.
6 6 . . 9 9 N N a a r r r r o o w w b b a a n n d d O O 2 2 S S e e n n s s o o r r
