Nitrous Express NISSAN GTR PLATE SYSTEM User Manual

Page 4

FUEL SUPPLY CONNECTION

WARNING: THE FUEL RAIL AND/OR FUEL LINES ARE UNDER HIGH PRESSURE. USE
EXTREME CAUTION WHEN DISCONNECTING ANY FUEL LINE. QUICKLY COLLECT AND
PROPERLY DISPOSE OF ANY EXCESS FUEL SPILLAGE.

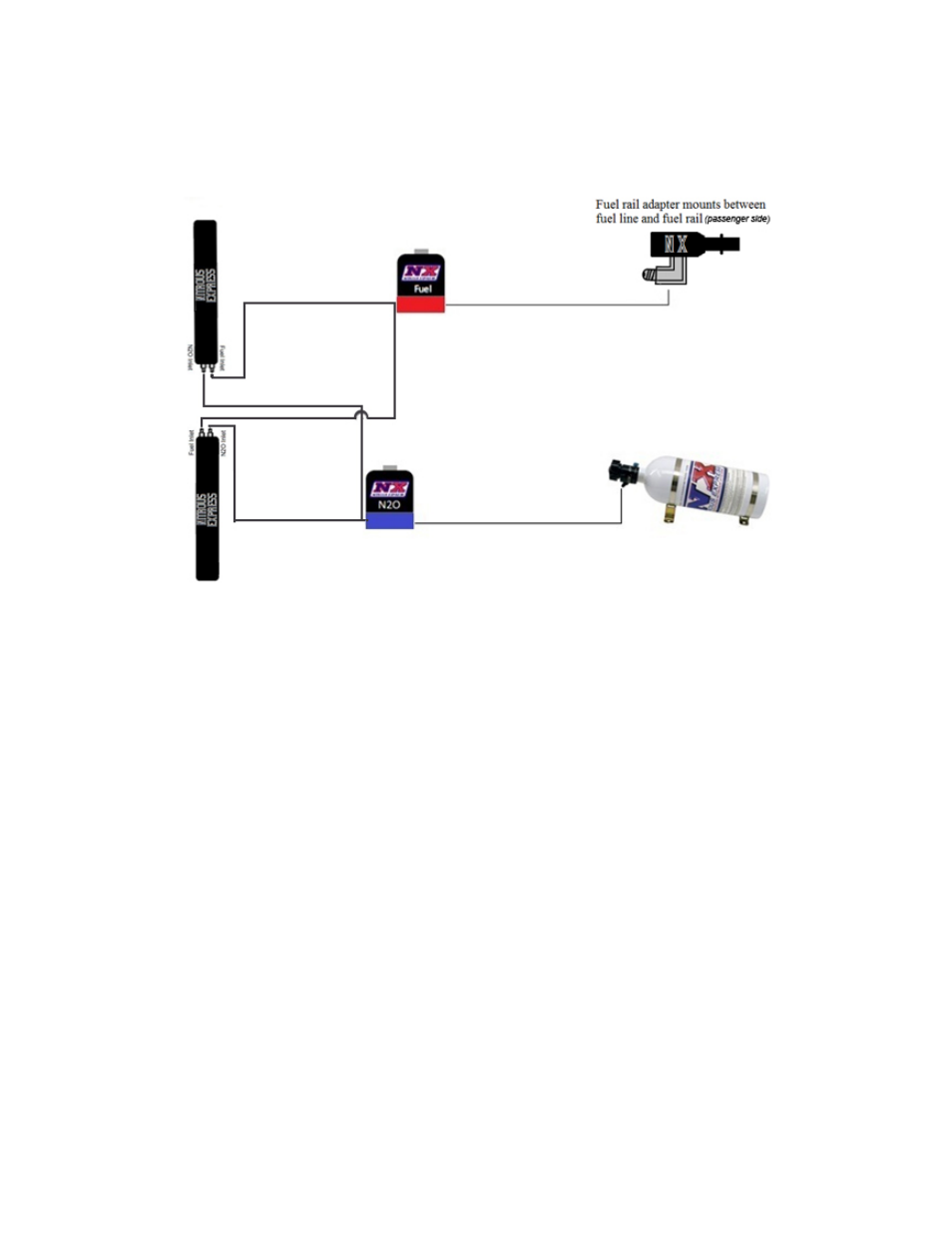

ILLUSTRATION C

Install the supplied Fuel Line Adapter on the Passenger side fuel rail (located in the fender well by the

strut tower brace).

2. The Fuel Rail Adapter has 2-1/8npt holes. Install the 1/8xD-4 Fitting in one, and the 1/8npt hex plug in

the other. NX Thread Sealer must be used on the pipe threads. DO NOT USE ON FLARE SIDE of
fitting.

3. Install the desired jet in the Fuel fitting in the Plate. Connect Plate Fuel Fitting to the D-4 fitting in your

Ford Fuel Rail Adapter.

ELECTRICAL HOOK-UP

1. Mount the toggle (Arming) switch in a location that is within easy reach of and in plain sight of the

driver.

2. Using 18-ga. Blue wire and connectors supplied in the switch kit, connect a HOT lead (12 VDC

POSITIVE) to the “Power” terminal of the toggle switch. (Use 5 amp inline fuse if desired). This
power source must be controlled by the ignition switch (See wiring Schematic).

3. Connect a grounded wire to the “Ground” terminal of the toggle.

Attach an 18-ga. jumper wire from the remaining terminal “ACC” of the master arming switch to the

red wire of the TPS autolearn WOT Switch.

5. Using the 18-ga. wire supplied with the system, connect the remaining White wire of the TPS

Autolearn WOT Switch to the Blue wire at the ECM (should be pin 36 or 40) (See wiring diagram).

6. Use the red 12-ga. wire to connect the + post on the vehicle battery, to the “Black” wire on the heavy

duty relay. (If desired a 40 amp fuse may be installed here)
