Nitrous Express NISSAN GTR PLATE SYSTEM User Manual
Page 3
3
MOUNTING THE NITROUS/FUEL SOLENOIDS
1. Remove the next to the last bolt on both sides of the intake manifold.
2. Mount solenoids (nitrous solenoid on driver’s side, fuel on passenger’s side) to the solenoid mounting
bracket with the supplied screws.
(See Illustration B)
3. Place the 1/8” NPT pipe plug in the “PurgePort” of both solenoids using the supplied NX Thread sealer.
4. Screw in the supplied “Y” fitting into the bottom of the solenoids using the supplied NX Thread sealer.
5. Line up holes in bracket with holes in the intake where the 2 bolts were removed.
6. Re-install intake manifold bolts

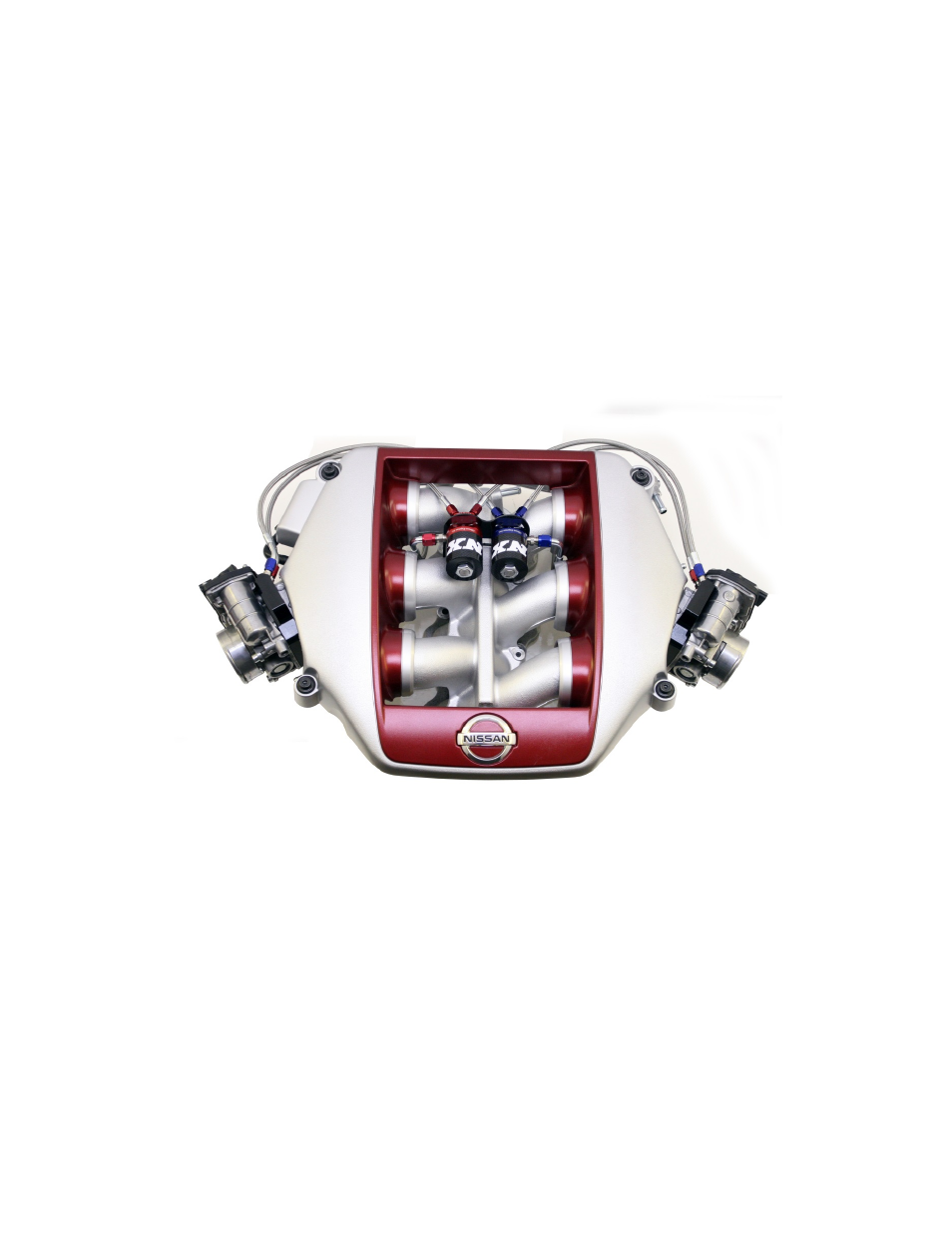

ILLUSTRATION B
