Malco UC1 Wheel Kit Uncoiler: Pex Tubing - Manual

UWK WHEEL KIT Instructions
SL12830A
1. Verify that all the components are included and undamaged.
A. Caster wheels- 2
B. Supports- 2
C. Handle- 1
D. 6mm Phillips screws- 8
E. 6mm Lock nuts- 8
F. 4mm Phillips screws- 4
G. 4mm Lock nuts- 4
2. The supports contain holes for both the casters and the handle.

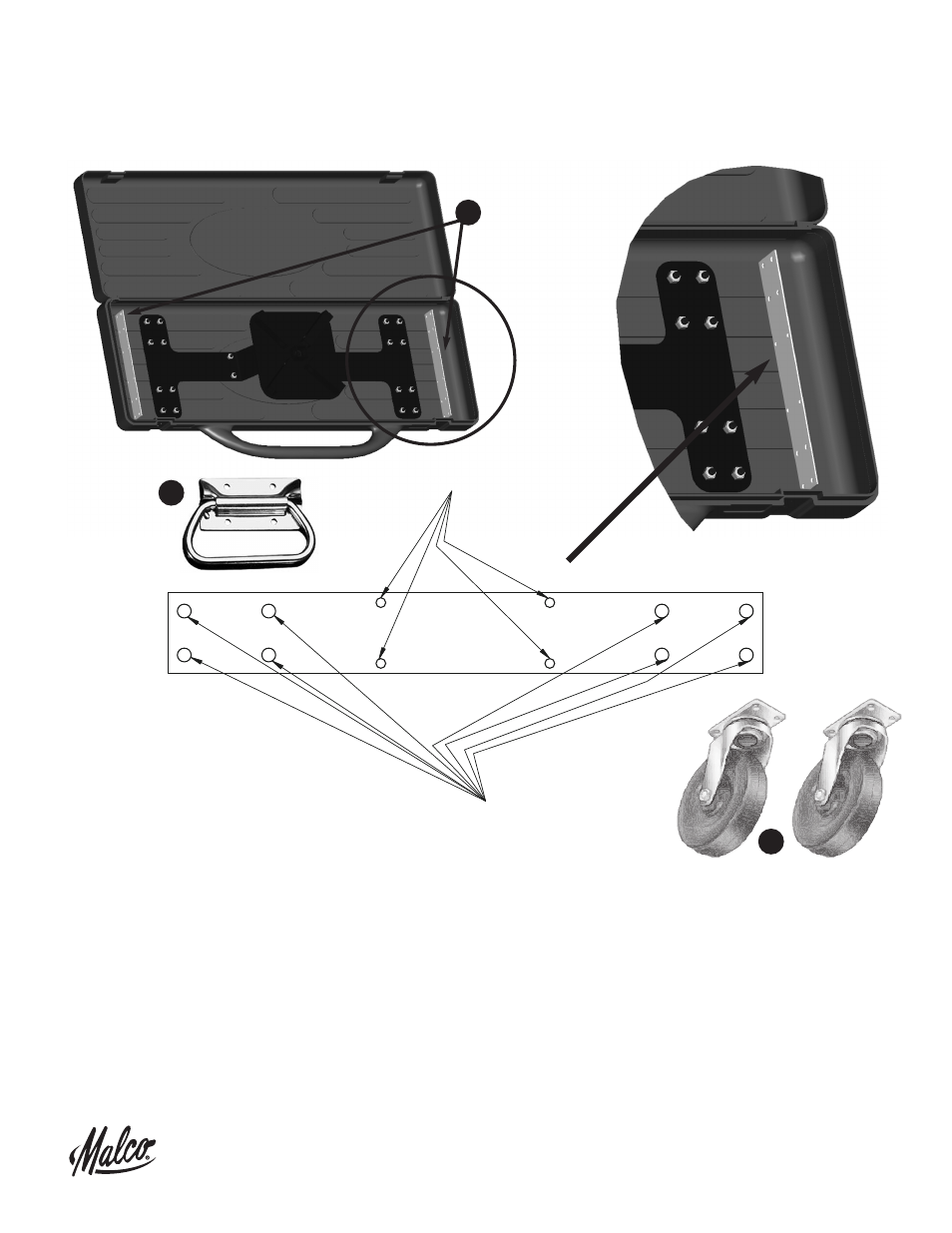

3. Using the holes in the supports as drill guides (see figure), drill 6.5mm (1/4") holes
for the casters and mount the casters on one end of the case as indicated.
4. Use the same technique, using a 4.5mm (3/16") drill bit, to mount the handle on the opposite end of the case.
SUPPORT
SUPPORTS
IMPORTANT:
Use these holes for each CASTER.
HANDLE
CASTERS
A
C
B
IMPORTANT:
Use these holes for
the HANDLE.
