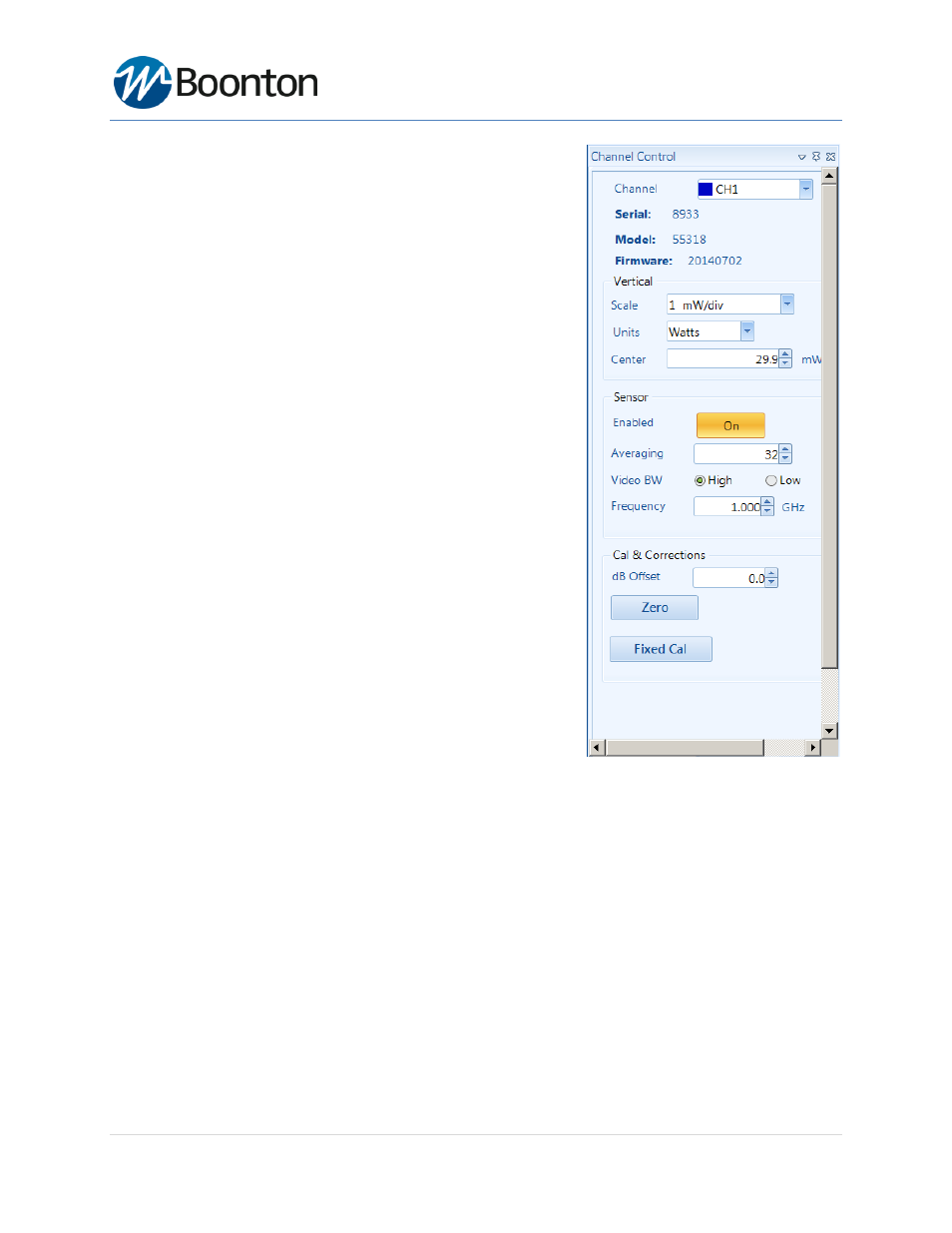

Channel: You can select an individual or all channels (for
multi-channels) by using drop down list. Sensor model with
serial number and firmware version displayed under this
channel parameter.

Multi-Channel: Simultaneous measurement of multiple
channels can be performed by selecting from drop down list.
The Multi-Channel capability of the software provides up to
8 parallel power measurements by allowing 8 resources per
Virtual Power Analyzer software.

Scale: Vertical scale sets the scaling of the level axis with the
selection of units

Units: Three units can be used : dBm, watt and voltage

Center: Center position can be adjusted by using up and
down arrow keys.

Sensor Enabled: Individual sensor or all selected sensors can
be enabled or disabled by using ON button.

Averaging: Sensor averaging can be selected by selecting up-
down arrow keys.

Video BW: High or Low video bandwidth selection.

Frequency: Operating frequency can be adjusted by selecting
up and down arrow keys or numerically. Note that cal data is
automatically adjusted with the selection of operating
frequency.

Cal & Corrections: dB offset can be set by using arrow keys or
numerically.

Zeroing and Fixed cal : Sensor zeroing and fixed calibration
can be performed by selecting each specific button.
