55 Series Wideband USB Sensor
Page 13 of 28

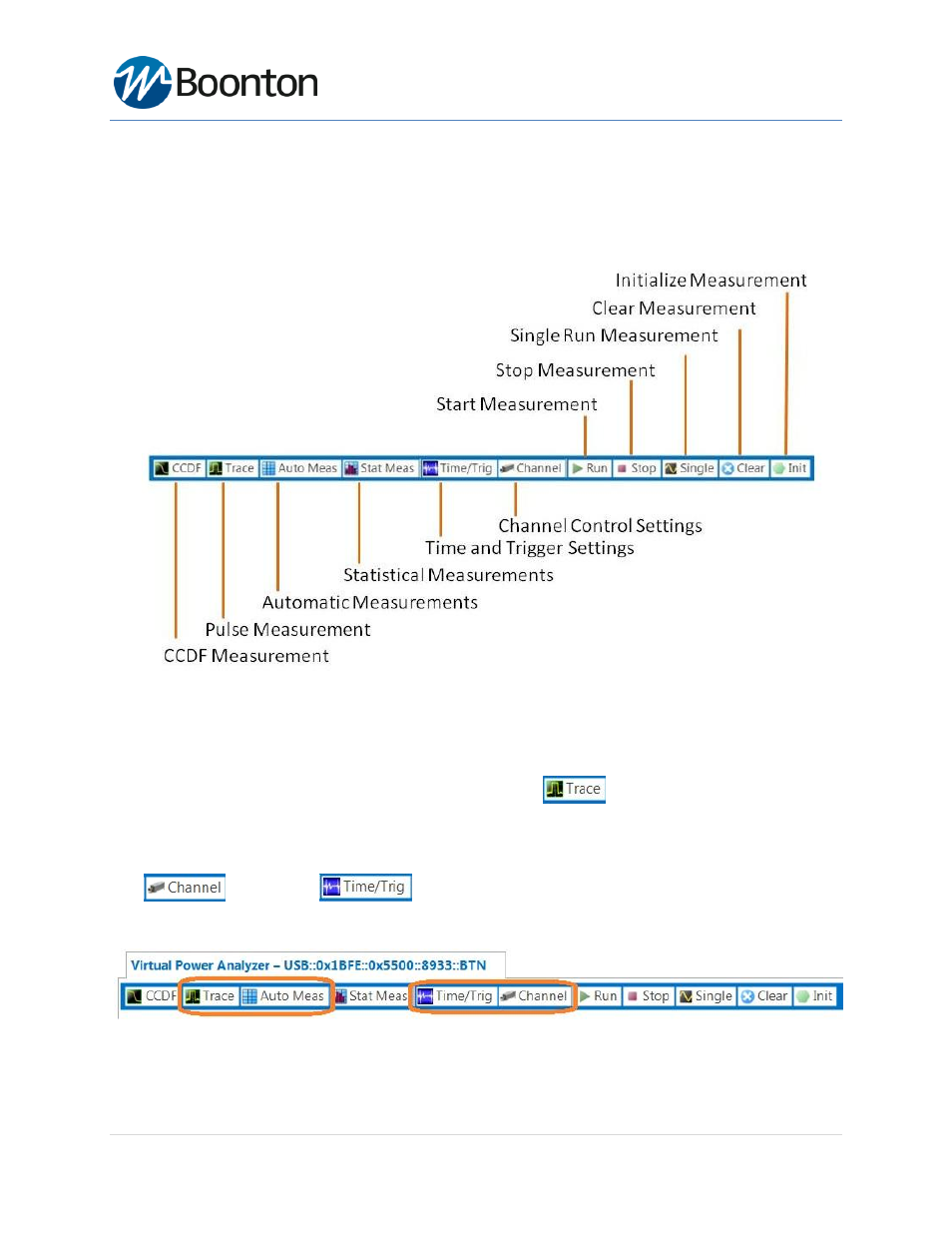

The Main Toolbar:
The software provides a main toolbar that is located at the top of the main program window and hosts
shortcuts to commonly used functions and measurements.
Making Pulse Measurement:
In order to display a pulse measurement user need to select icon from the main toolbar. The
trace button tries to adjust level scaling, trigger level and timing according to the applied signal. All other
parameters are set back to defaults. If the auto set process fails, all settings are left untouched.
The settings and settings related to pulse measurement can be selected from
main toolbar and can be applied to the measurement.
