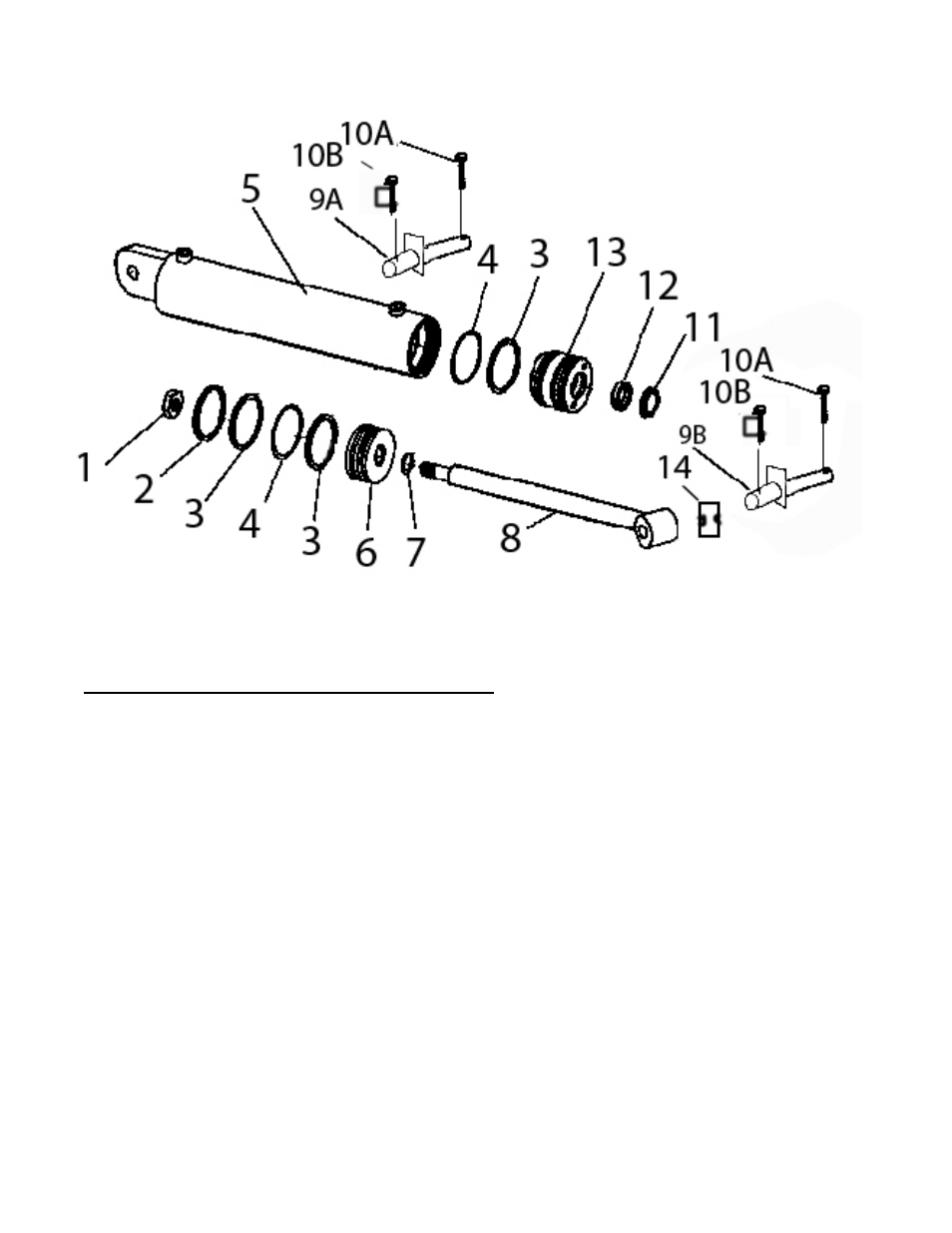

HYDRAULIC CYLINDER - A520H275 5” X 20”
LIFT CYLINDER
KEY NO. PART NO. DESCRIPTION
. A400H7 Nut -/4” NF, Lock Type
2. A400H04 Cast Ring, 5” OD
3. A400H05 Back-up Washer, 5” OD x /4”
4. A400H06 “O” Ring, 5” OD x /4”
5. A80H35 Barrel Assembly with 2” holes
6. A80H0 Piston, 5” OD
7. A60H52 “O” Ring, -/4” OD x /6”
8. A80H32 Shaft 2” Dia.
9A. A23372 Pin, upper
9B. A23335 Pin, lower
0A. AFP-0000 Cotter Pin, /4” x 3”
0B. A25006 SafetySnap Pin
. A80H06 Wiper Seal 2” ID
2. A80H04 Seal 2” ID
3. A80H05A Head Gland
A80H07 Packing Kit, Containing:
() A400H04 () A60H52
(3) A400H05 () A80H04
(2) A400H06 () A80H06
4. A2323-88 Spacer for lower Pin
PARTS LIST
LIFT CYLINDER
