APC KVM Switch Installer/User Guide
4
1. Power down all computers that will be part of your APC KVM Switch
system.
Connecting your Local Peripherals
2. Locate your keyboard, video monitor and mouse.
3. Plug your VGA monitor cable into the port labeled on the back of your
APC KVM Switch or plug your 13W3 monitor cable into the included
adapter. Either plug your Sun connector into the port labeled “SUN” or
plug your PS/2 keyboard cable and your PS/2 mouse cable into the ports
labeled and respectively.
Note: A PS/2 keyboard will not function if a Sun keyboard is attached.
However, you may use a PS/2 mouse with a Sun keyboard.

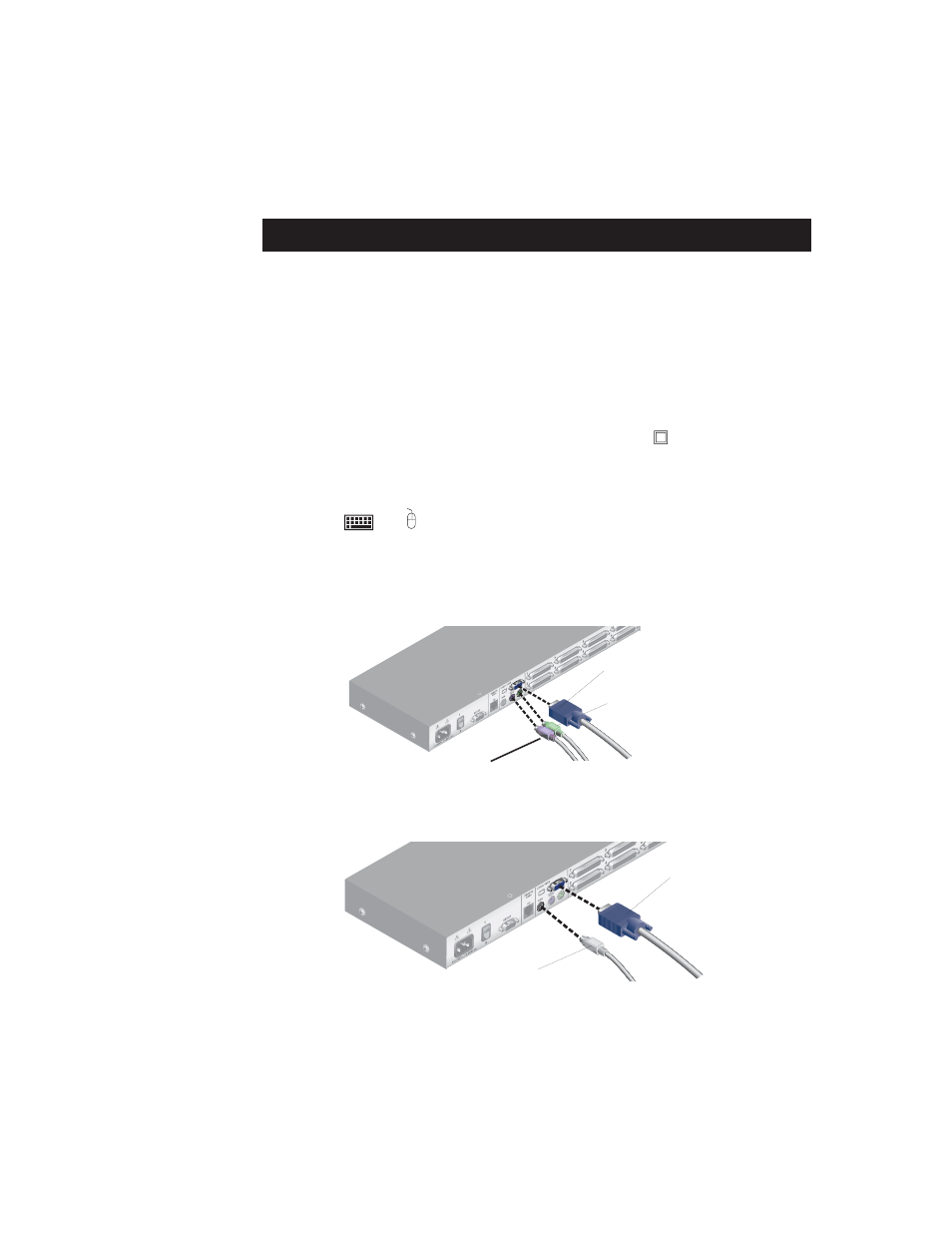

2.1 Basic Installation
VGA MONITOR CABLE
PS/2 MOUSE CABLE
PS/2 KEYBOARD CABLE
SUN KEYBOARD CABLE
Attaching your PS/2 keyboard and mouse
Attaching your SUN connector
VGA MONITOR CABLE
