9
Basic Installation

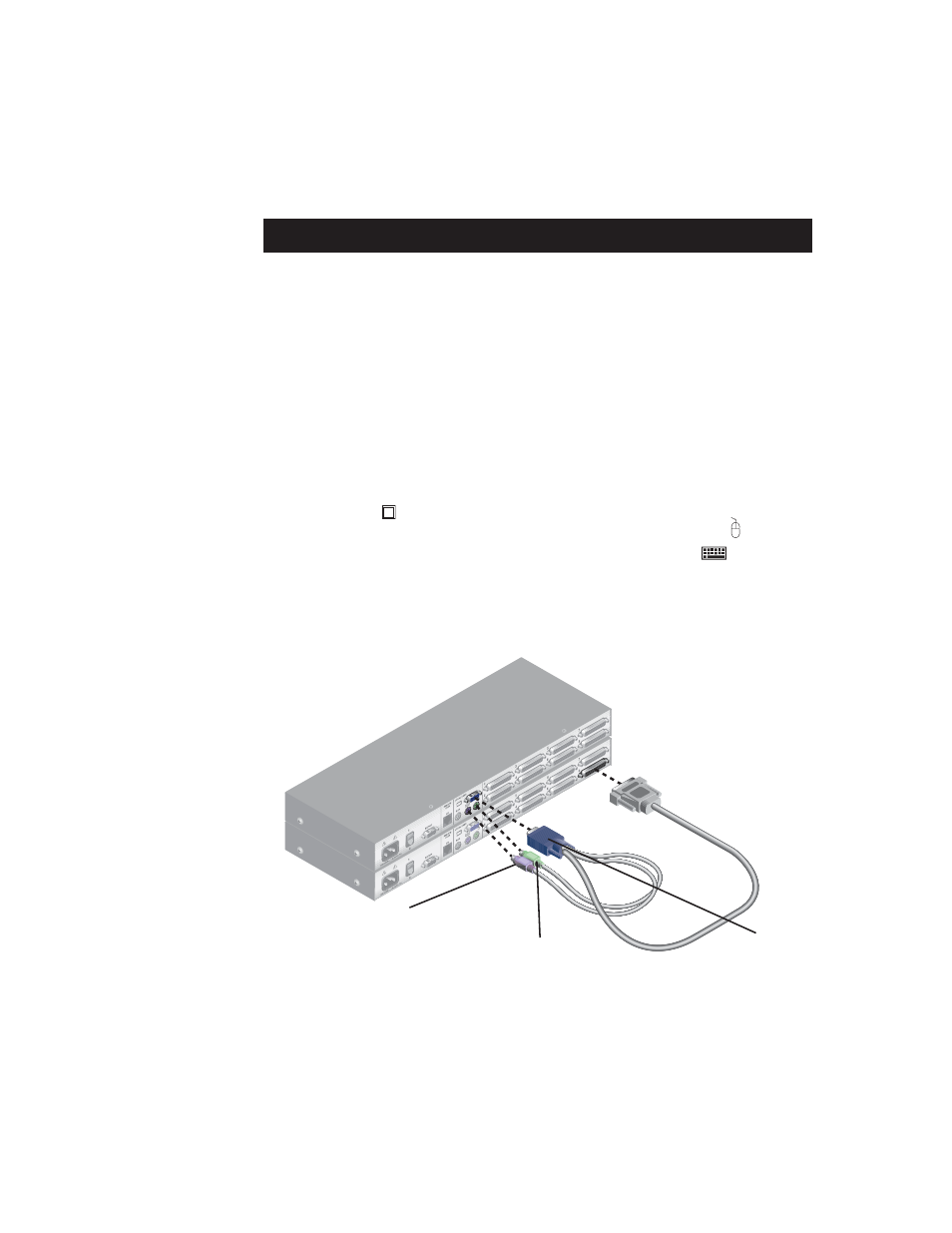

Attaching Multiple Switch Units
(Please note that cascading can only be done with AP9850, AP9851
or AP9853 cables)
1. Follow steps 1-8 of the Basic Install section for each cascaded unit.
2. Plug the 25-pin “D” connector of your input cable into any available channel
port on the rear of your base Switch unit.
3. Plug the 15-pin video connector on the other end of the cable into the
port labeled on your fi rst cascading Switch unit. Plug the PS/2 mouse
connector, designated by a yellow band or mouse icon, into the port. Plug
the remaining 6-pin miniDIN keyboard connector into the
port.
4. Follow steps 9-11 for each attached computer.
2.2 Advanced Install
5. Repeat steps 2-3 for every cascaded Switch unit in your system.
6. Power-up your Switch unit(s) fi rst, then all attached computers.
CASCADING
UNIT
BASE UNIT
PS/2 KEYBOARD CABLE
PS/2 MOUSE CABLE
VGA
MONITOR
CABLE
