POWER SUPPLY LOCATIONS

ELECTRICAL SUPPLY:

The built-in gas downdraft cooktop features

pilotless electric ignition for energy savings and

reliability. It operates on a 120-volt, 60-Hz power

supply. A separate circuit, protected by a 15-amp

time-delay fuse or circuit breaker, is required.
• A properly grounded 3-prong receptacle should

be located within reach of cooktop’s four foot

power cord.

IMPORTANT: (Please read carefully.) FOR

PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED.
The power cord of this appliance is

equipped with a three-prong (grounding) plug

which mates with a standard three-prong

grounding wall receptacle to minimize the

possibility of electric shock hazard from this

appliance. The customer should have the wall

receptacle and circuit checked by a qualified

electrician to make sure the receptacle is properly

grounded and has correct polarity.
Where a standard two-prong wall receptacle is

encountered, it is the personal responsibility and

obligation of the customer to have it replaced with

a properly grounded three-prong wall receptacle.
Do Not, Under Any Circumstances, Cut Or

Remove The Third (ground) Prong From The

Power Cord.
Do not use an extension cord.

CL

GAS SUPPLY:

These cooktops are designed to operate on

natural gas at 4" of water column pressure or

on LP gas at 10" of water column pressure.
• These cooktops are shipped from the factory

set for natural gas. If you decide to use this

cooktop with LP gas, conversion adjustments

must be made by a service technician or

other qualified person.

• The pressure regulator must be connected in

series with the manifold of the cooktop and must

remain in series with the supply line regardless

of type of gas being used.

For proper operation, the maximum inlet pressure

to the regulator must be no more than 10" water

column pressure for natural gas and 14" water

column pressure for LP gas.

• When checking the regulator, the inlet pressure

must be at least 1" greater than the regulator

output setting. If the regulator is set for 4" of

water column pressure, the inlet pressure must

be at least 5". If the regulator is set for 10" of

water column pressure, the inlet pressure must

be at least 11". For ease of installation, and if local

codes permit, the gas supply line into the cooktop

should be 1/2" or 3/4" ID flexible metal appliance

connector, three to five feet long.

NOTE: Purchase a new flexible line. DO NOT USE

AN OLD PREVIOUSLY USED LINE.

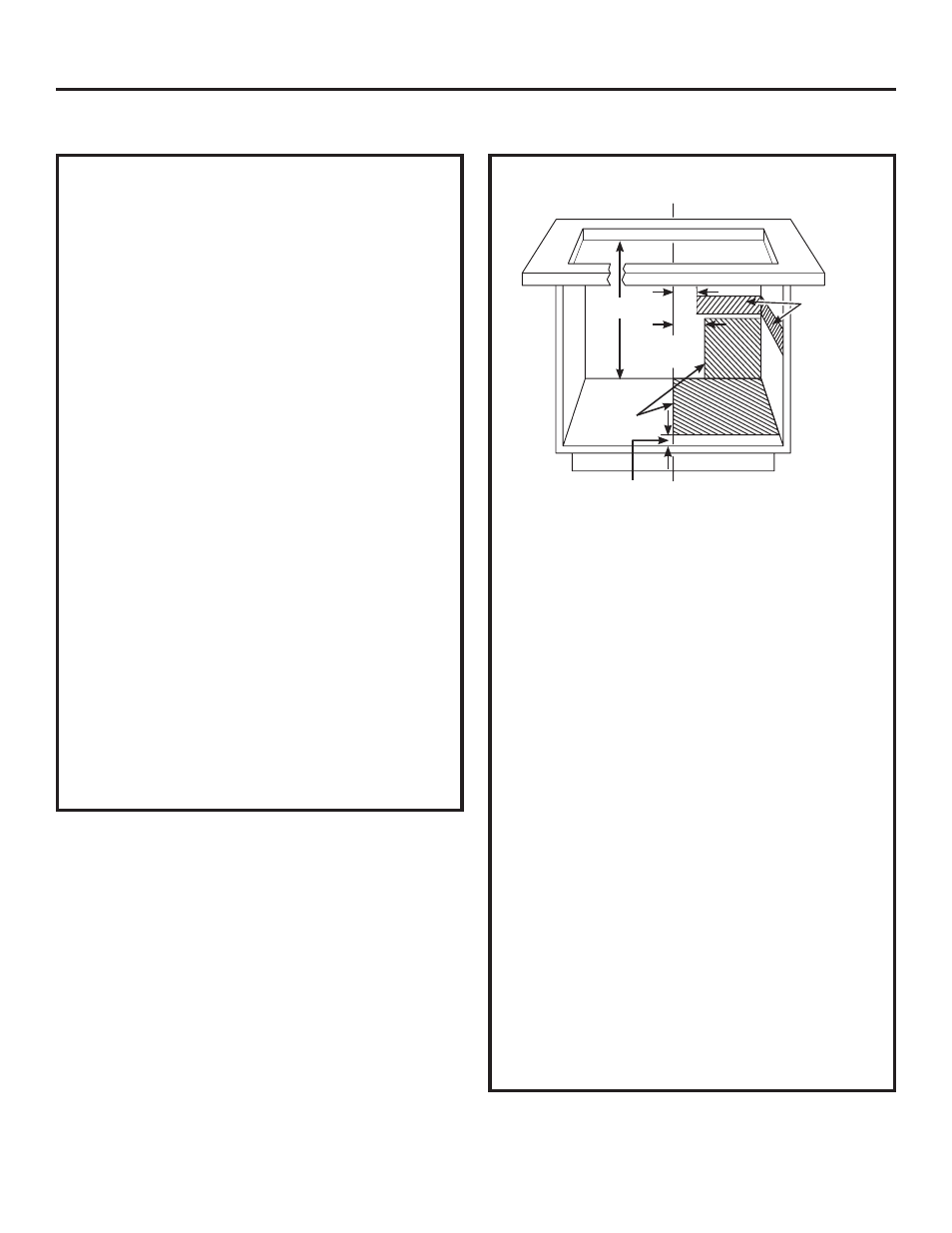

• Make gas connection through rear wall, or on

cabinet floor at rear, as illustrated.

Gas pipe

location

Electrical

outlet 12”

above cabinet

floor (mount

on side or

back cabinet

wall 2” min.

from

centerline)

3”

min

29

1

2

2”

min

4" (to clear toe kick area)
