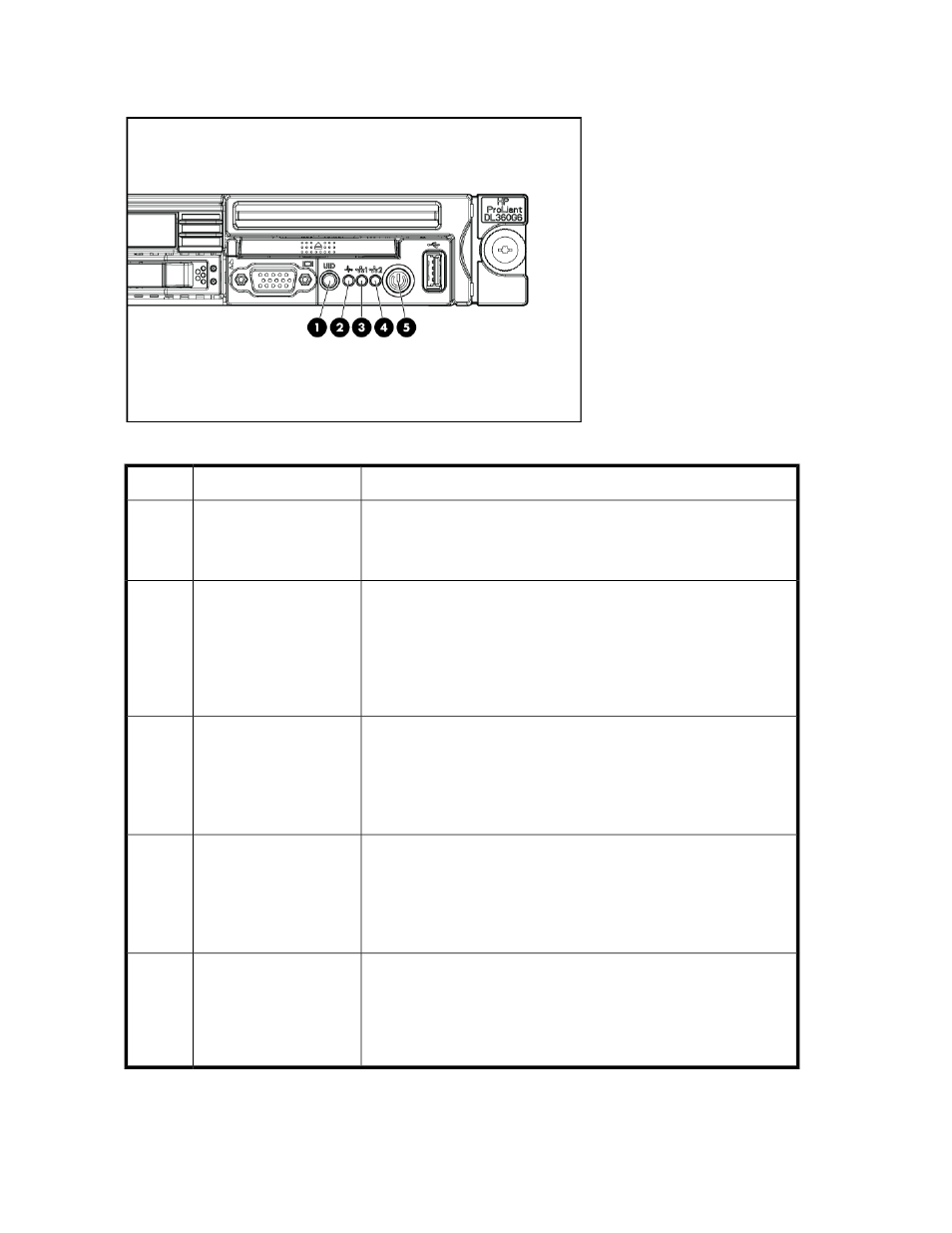

Front panel LEDs and buttons
Table 2 Front panel LEDs and buttons
Status
Description
Item
Blue = Identification is activated.
Flashing blue = System is being managed remotely.
Off = Identification is deactivated.
UID LED/button
1
Green = System health is normal.
Amber = System health is degraded. To identify the component in a
degraded state, see “
HP Systems Insight Display LEDs
Red = System health is critical. To identify the component in a critical
state, see “
HP Systems Insight Display LEDs
Off = System health is normal (when in standby mode)
Health LED
2
Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No link to network exists.
If power is off, the front panel LED is not active. For status, view the
RJ-45 connector LEDs (“
NIC 1 link/activity LED
3
Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No link to network exists.
If power is off, the front panel LED is not active. For status, view the
RJ-45 connector LEDs (“
NIC 2 link/activity LED
4
Green = System is on.
Amber = System is in standby, but power is still applied.
Off = Power cord is not attached, power supply failure has occurred,
no power supplies are installed, facility power is not available, or the
power button cable is disconnected.
Power On/Standby but-
ton and system power
LED
5
