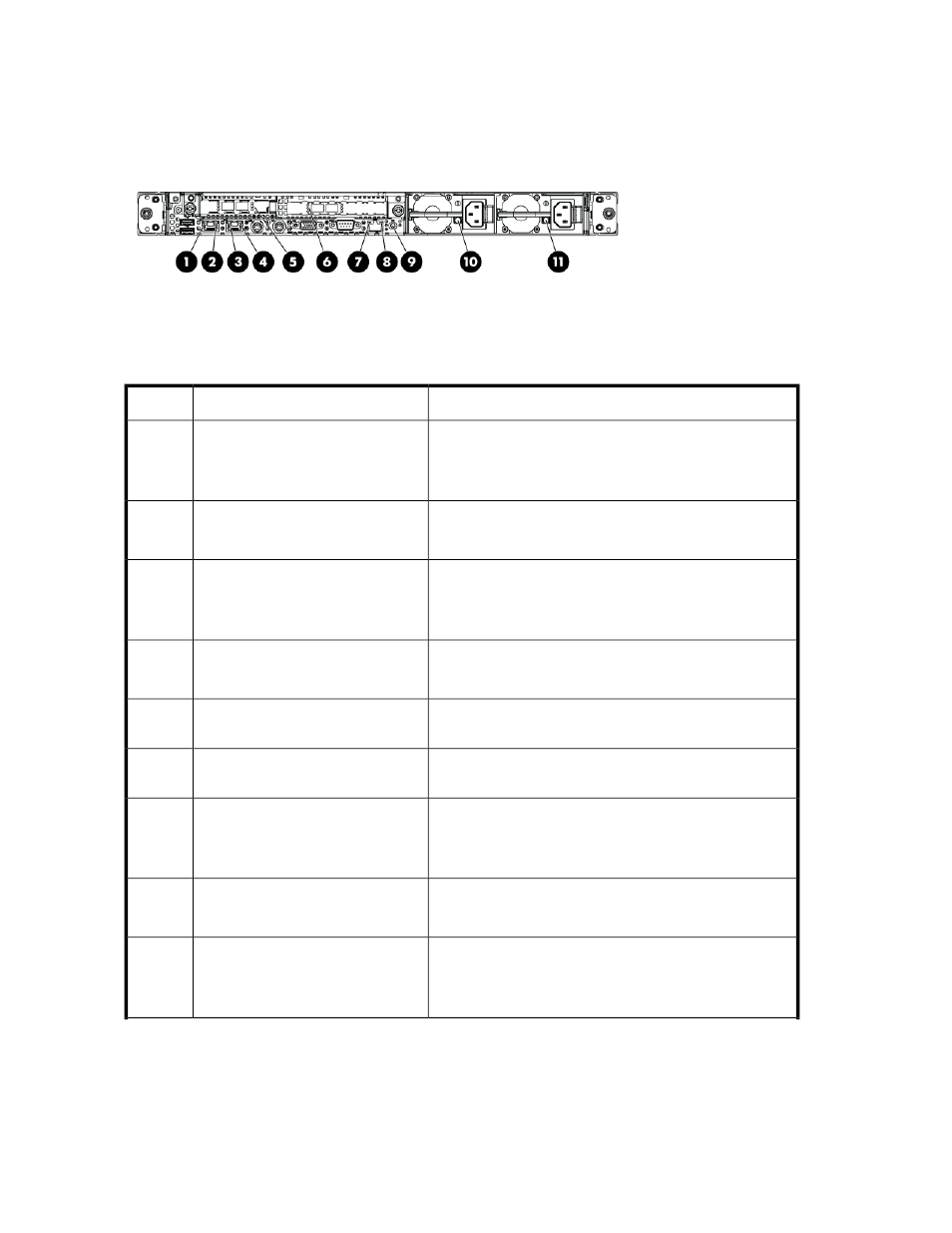

Rear panel LEDs and buttons
Table 4 Rear panel LEDs and buttons
Status Description Item
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
10/100/1000 NIC 1 activity LED 1
Green = Link exists.
Off = No link exists.
10/100/1000 NIC 1 link LED 2
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
10/100/1000 NIC 2 activity LED 3
Green = Link exists.
Off = No link exists.
10/100/1000 NIC 2 link LED 4
See Table 5 on page 11 for status indication.
HBA 1 LEDs (1 set for each connect-
or)
5
See Table 5 on page 11 for status indication.
HBA 2 LEDs (1 set for each connect-
or)
6
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
iLO 2 NIC activity LED 7
Green = Link exists.
Off = No link exists.
iLO 2 NIC link LED 8
Blue = Identification is activated.
Flashing blue = System is being managed remotely.
Off = Identification is deactivated.
UID button/LED 9
Component identification 10
