1 Component identification

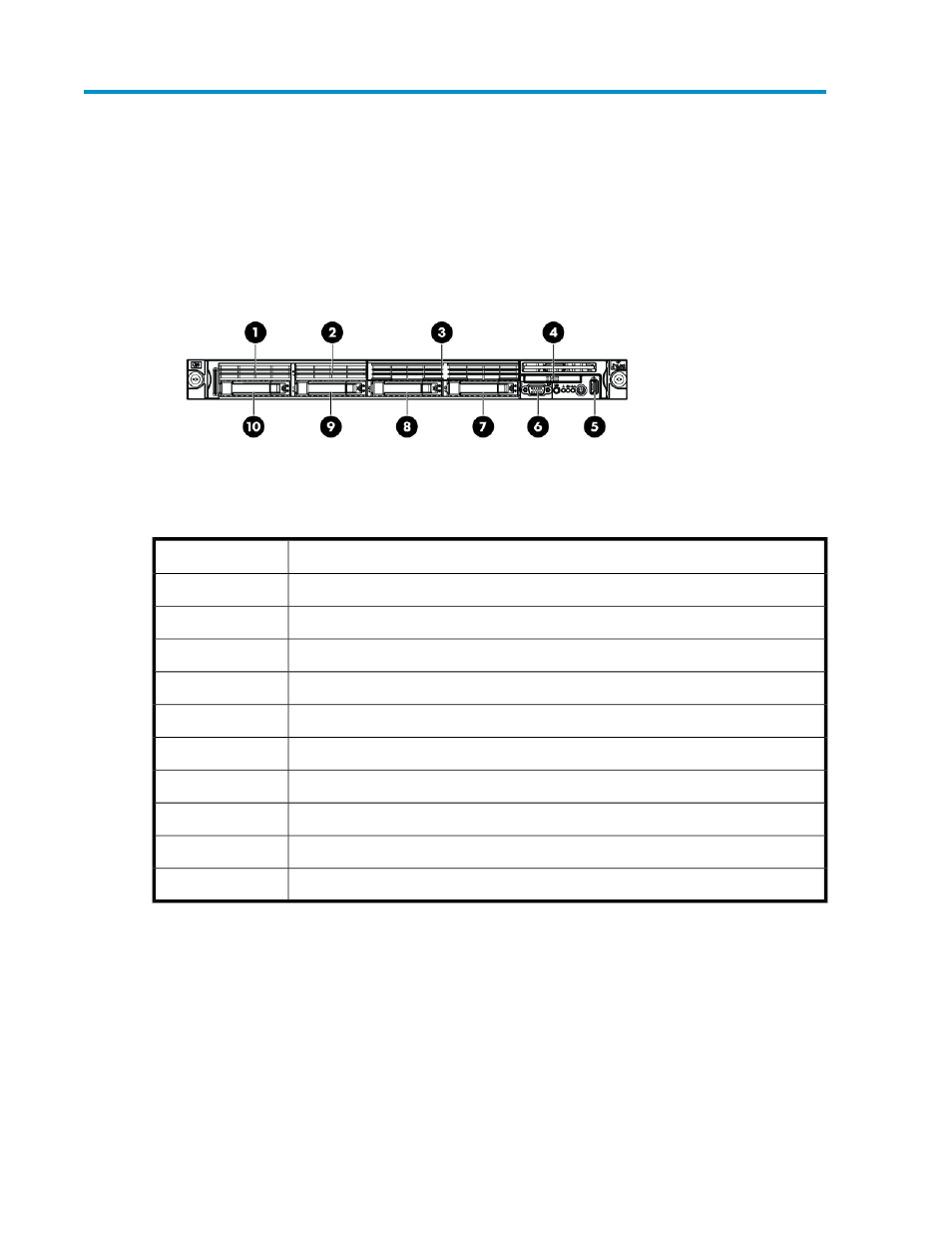

Front panel components
Table 1 Front panel components
Description Item
Hard drive bay 5 (not used) 1
Hard drive bay 6 (not used) 2
DVD tray 3
HP Systems Insight Display (see page 18 to access) 4
Front USB connector 5
Video connector 6
Hard drive bay 4 (not used) 7
Hard drive bay 3 (not used) 8
Hard drive bay 2 9
Hard drive bay 1 10
HP StorageWorks Virtualization Services Manager v2 server user guide 7
