OPERATION INTRAC-305
Page 40 INTRAC-305 MANUAL - Issue 3.2 ©2011 Advantech Wireless

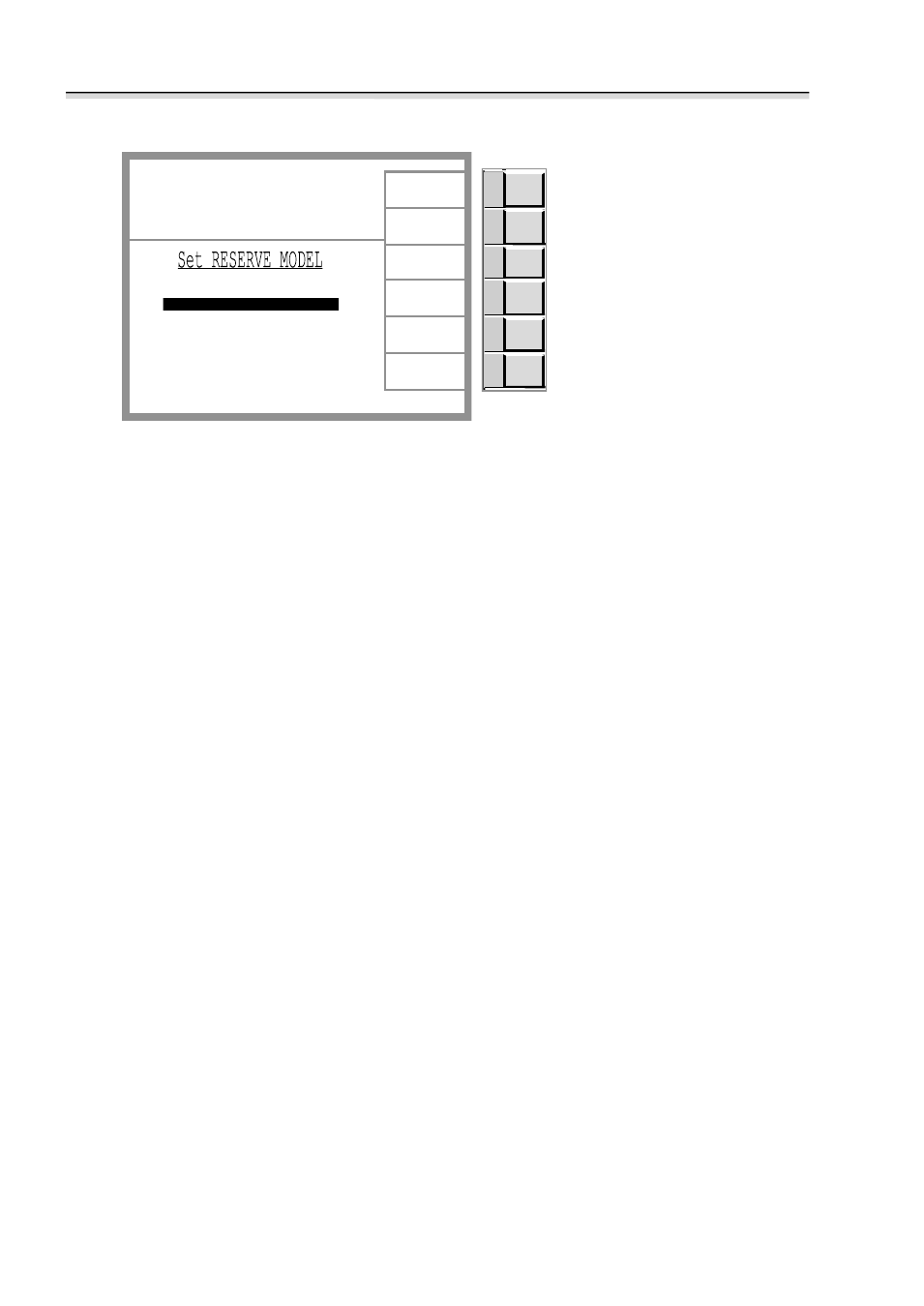

RESERVE MODEL
1
2
3
4
5
6
puts the antenna control system into
STANDBY mode and skips to the HOME
menu
skips to the Models menu
skips to the Config menu
skips to the System Setup menu
Current Mode Tracking
Control State Local
Beac Freq 11.452000 GHz
Beac Level -10.05 dB
El Angle 25.37 o
Az Angle 210.50 o
Pol Angle 27.4 o
Standby
Home
Config
System
Setup
Function
Press EN to accept selection
> IESS-412 SET <
NORAD NOT SET
skips to the Home (root) menu
Models
Next
Field
moves the highlight box to the next field
in the current menu
Path HOME - FUNCTION - MODELS -
MENU KEY 6 (x2) - ENTER
or From Configuration or System Setup
MODELS - MENU KEY 6 (x2) - ENTER
Description Once the INTRAC-305 has built an orbit model it can track
the satellite with no tracking signal for 72hrs. After this time if
there is still no signal the INTRAC deems the model to be
expired and ceases to track.
In such a situation the INTRAC can fall back into Program
Track mode using the “Reserve Model”.
The “Reserve Model” requires that valid IESS-412 or NORAD
data be loaded and that the required reserve model is
selected.
In this menu the required reserve model, IESS-412 or
NORAD is set.
Menu Key 6 (Next Field) steps through the two selections.
Pressing ENTER accepts the highlighted selection.
Note The words SET and NOT SET following IESS-412 and
NORAD refer to the previous selection. Pressing ENTER will
make the highlighted selection SET and the other NOT SET
regardless of the current displayed state.
