INTRAC-305 OPERATION
© 2011 Advantech Wireless INTRAC-305 MANUAL - Issue 3.2 Page 9
3
Example
To select “STOW SETUP” from the HOME menu :-
FUNCTION (menu key)
SYSTEM SETUP (menu key)
NEXT FIELD (menu key) press five times.
ENTER (numeric keypad)
THE MENU SCREEN

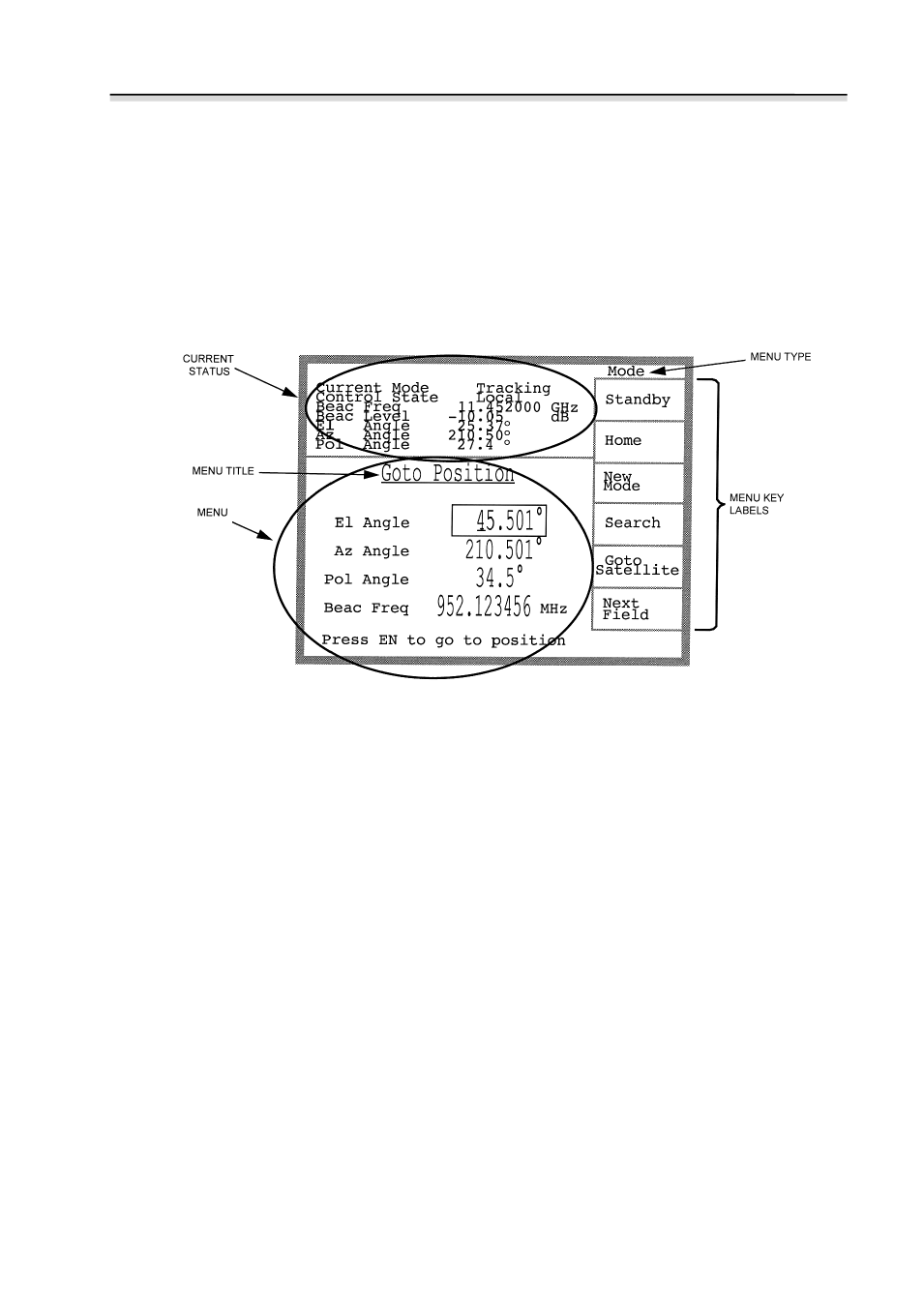

A typical menu display screen is shown above. In this
example it is the “Goto Position” used to drive the antenna to
a particular pointing angle.
The top section shows the current mode of the INTRAC,
whether the control is remote or local and the various pointing
angles of the antenna.
Note On some screens (e.g., HOME) the current status display
expands to fill the lower part of the screen.
Down the right side of the screen are the current functions of
the six menu keys.
Above the key labels is the menu type designator, i.e., one of
the six main menu headings.
The main part of the display relates to the selected menu.
The individual menus are described on the following pages in
order of the menu tree shown above. The order is from left to
right and taking the branches as they come.
