OPERATION INTRAC-305
Page 34 INTRAC-305 MANUAL - Issue 3.2 ©2011 Advantech Wireless

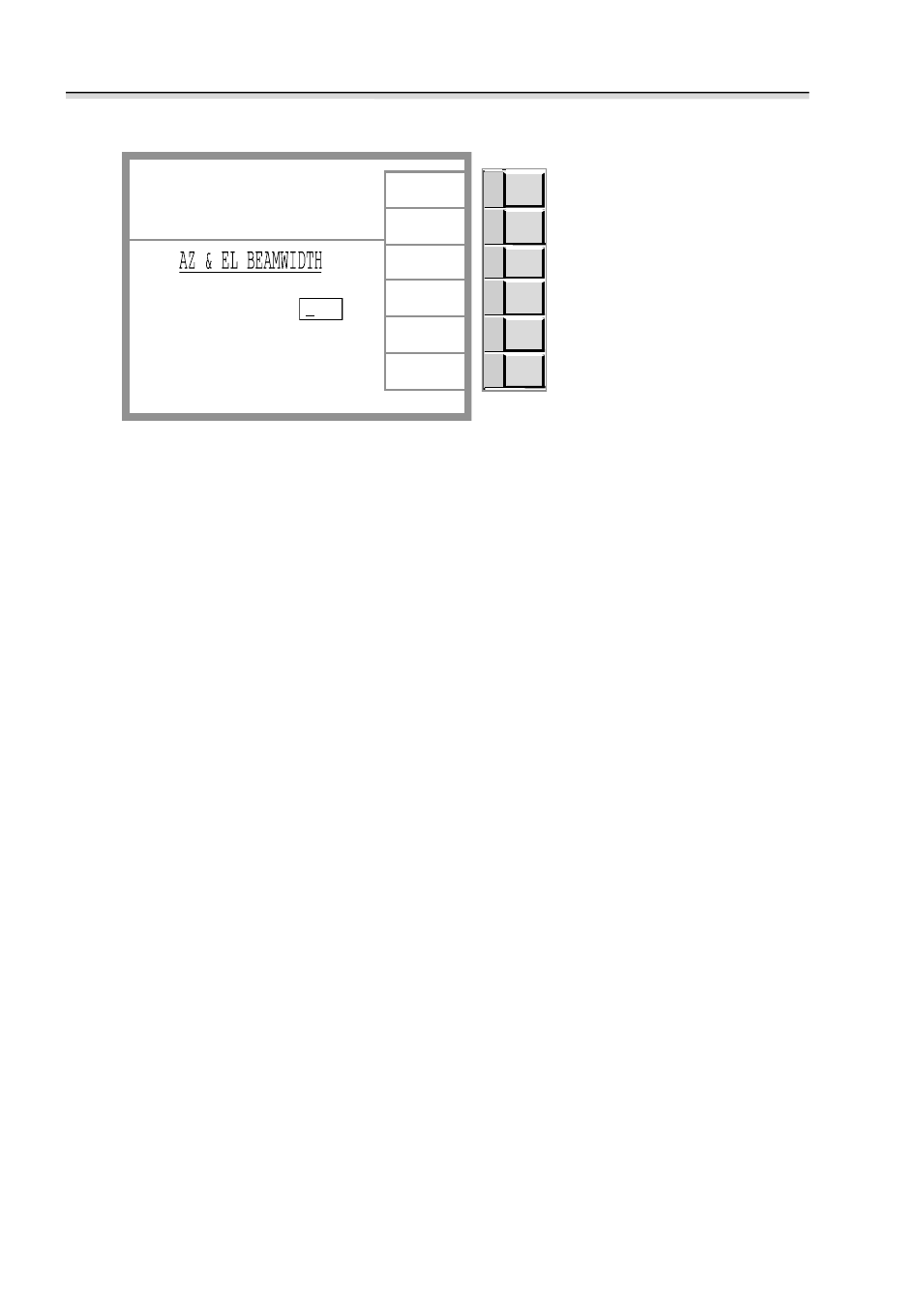

AZ & EL BEAMWIDTH
1
2
3
4
5
6
puts the antenna control system into
STANDBY mode and skips to the HOME
menu
skips to the Home (root) menu
skips to the Models menu
skips to the Config menu
skips to the System Setup menu
moves the highlight box to the next field
in the current menu
Current Mode Tracking
Control State Local
Beac Freq 11.452000 GHz
Beac Level -10.05 dB
El Angle 25.37 o
Az Angle 210.50 o
Pol Angle 27.4 o
Standby
Home
Models
Config
System
Setup
Next
Field
Function
Azimuth B/width 0.14 o
Elevation B/width 0.14 o
Press EN to accept selection
Path HOME - FUNCTION - SYSTEM SETUP -
MENU KEY 6 (x4) - ENTER
or From Models or Configuration
SYSTEM SETUP - MENU KEY 6 (x4) - ENTER
Description
This menu enables the setting of the antenna’s Azimuth and
Elevation 3dB beamwidths at the beacon frequency.
These values are used by the INTRAC-305 to calculate the
cross scan movement.
The edit box is stepped between Azimuth and Elevation with
Menu Key 6 (Next Field). The beamwidth values are entered
from the Numeric Keypad.
Pressing the ENTER key accepts the displayed values.
