OPERATION INTRAC-305
Page 18 INTRAC-305 MANUAL - Issue 3.2 ©2011 Advantech Wireless

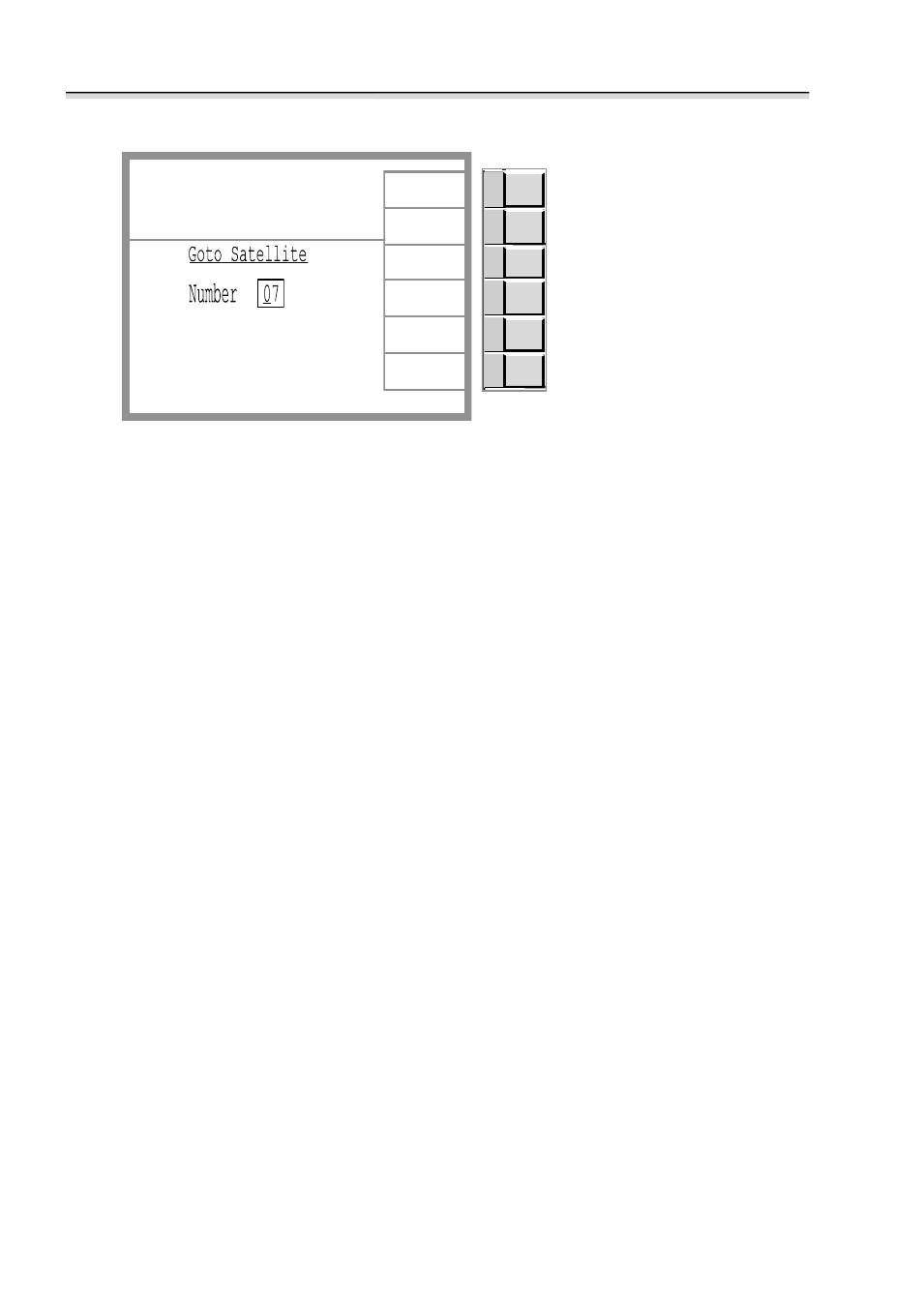

GOTO SATELLITE
El Angle 145.50 o
Az Angle 210.50 o
Pol Angle -134.5 o
Band 1
Beac Freq 950.000000 MHz
1
2
3
4
5
6
skips to the Goto Position menu
skips to the Search menu
skips to the Edit Satellite Table menu
recalls and displays the satellite table
data of the satellite whose number is
indicated in the highlight box
Current Mode Tracking
Control State Local
Beac Freq 11.452000 GHz
Beac Level -10.05 dB
El Angle 25.37 o
Az Angle 210.50 o
Pol Angle 27.4 o
Mode
Press EN to go to Satellite
Recall
Satellite
Data
Search
Home
Standby
puts the antenna control system into
STANDBY mode and skips to the HOME
menu
skips to the Home (root) menu
Edit
Satellite
Table
Goto
Position
Path HOME - NEW MODE - GOTO (Position) - MENU KEY 5
Description The INTRAC-305 can store the co-ordinates, polarisation
angle and beacon frequency of 40 satellites. With this screen
the antenna can be driven to any satellite whose parameters
have been stored.
When this screen is accessed the displayed parameters refer
to the current satellite.
To move to a ne
w satellite key in the required satellite’s
number using the numeric keypad. (Press Menu Key 6 to
view the stored parameters if required)
Press ENTER and the antenna will drive to the new satellites
co-ordinates. Select Home (Menu key 2) to leave this menu
without moving to a new satellite.
If the satellite’s parameters need to be changed Menu Key 5
switches to the Edit Satellite screen. For an explanation of
that facility see “Edit Satellite Table”.
Menu key 6 is used to view the data of a satellite after
entering the “Number”.
