OPERATION INTRAC-305
Page 20 INTRAC-305 MANUAL - Issue 3.2 ©2011 Advantech Wireless

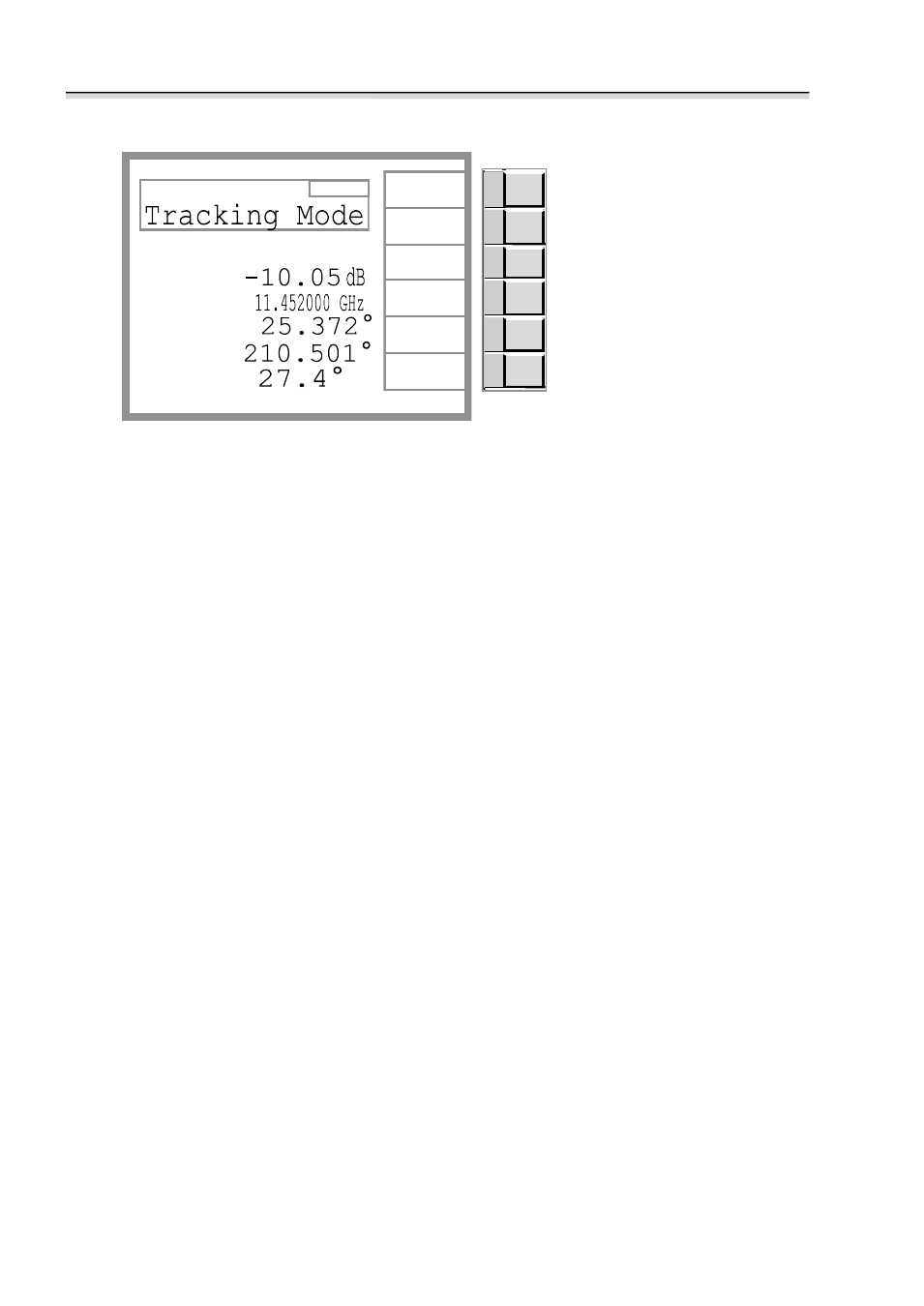

AUTO NEW MODEL
1
2
3
4
5
6
moves to the Manual/Stow menu
moves to the 1st ‘Goto’ menu ie Goto
Position
resumes tracking using the INTRAC’S
current model
clears the INTRAC’S current model and
starts learning a new model
New Mode
Auto
New
Model
Goto
Standby
Auto
Continue
Manual
/Stow
puts the antenna control system into
STANDBY mode and skips to the HOME
menu
Beac Level
Beac Freq
El Angle
Az Angle
Pol Angle
Local
Current Mode
Home
skips to the Home (root) menu
Path HOME - NEW MODE - MENU KEY 6
Description This facility does not have a screen of its own. It is a function
enabled by a menu key on the New Mode menu.
Auto New Model is used when it is required to track a new
satellite. It causes the INTRAC to clear the existing model (if
there is one) and start to build a new model of the orbit of the
satellite whose beacon signal it is receiving.
Thus before pressing the Auto New Model key the antenna
must be peaked on the required satellite’s main transmission
lobe. The peaking may be done in manual mode or
automatically using Search Mode.
On pressing Auto New Model the INTRAC will enter Learning
mode. After 24hrs of learning the orbit and building the model
the INTRAC will enter Tracking mode.
