OPERATION INTRAC-305
Page 26 INTRAC-305 MANUAL - Issue 3.2 ©2011 Advantech Wireless

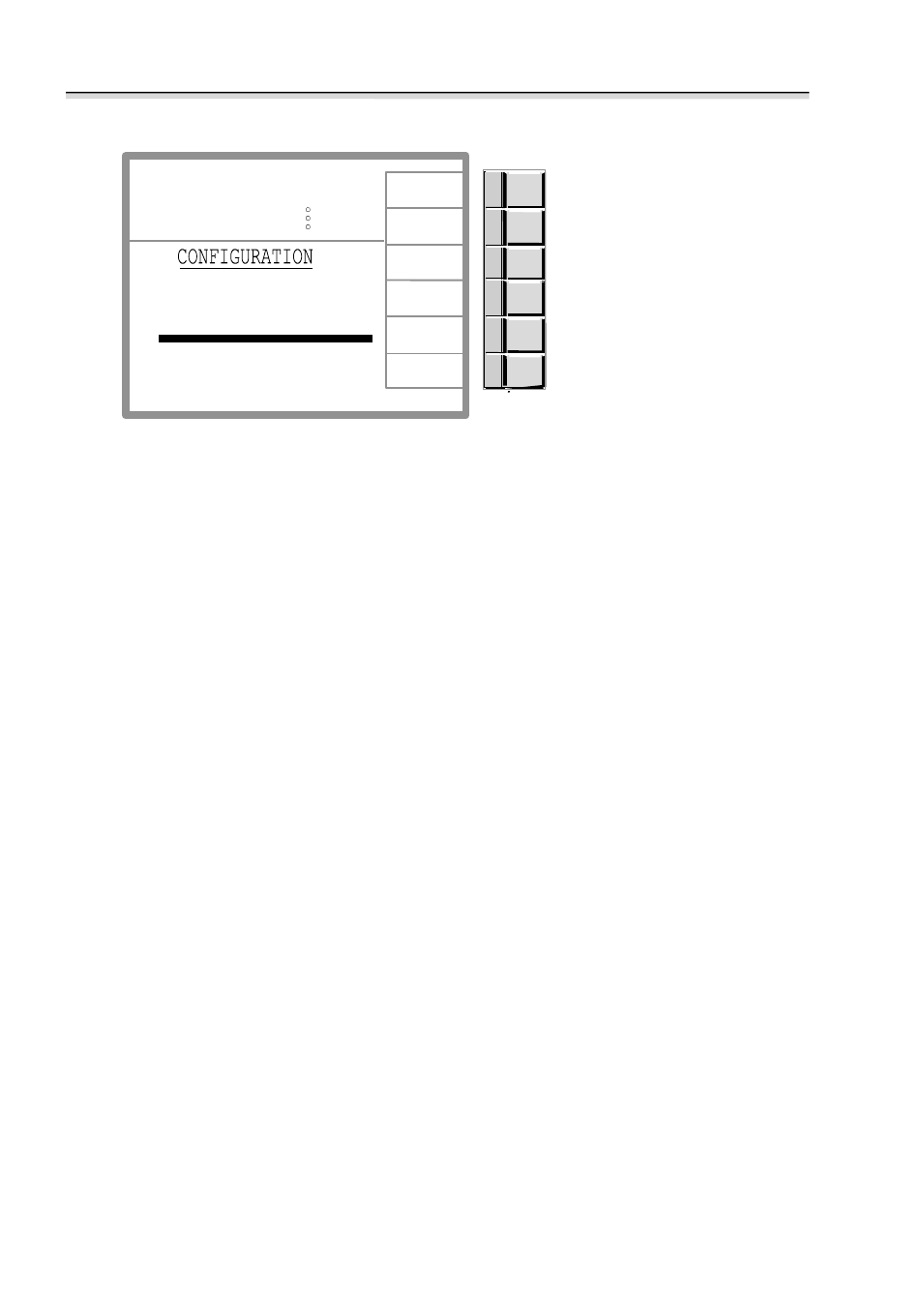

DIAGNOSTICS ON / DIAGNOSTICS OFF
1
2
3
4
5
6
Current Mode Tracking
Control State Local
Beac Freq 11.452000 GHz
Beac Level -10.05 dB
El Angle 25.37
Az Angle 210.50
Pol Angle 27.4
Standby
Home
Models
Test
Port-1
Diags
System
Setup
Function
Press EN to accept selection
Next
Field
Beacon Frequncy
Edit Satellite Table
Soft Limits
Extended Azimuth Setup
> Diagnostics On <
Diagnostics Off
Beacon Threshold
puts the antenna control system into
STANDBY mode and skips to the HOME
menu
skips to the Home (root) menu
skips to the Models menu
selects whether ‘Angles’ or ‘Diagnostics’
appear on Test Port 1
skips to the System Setup menu
moves the highlight box to the next field
in the current menu
Path HOME - FUNCTION - MENU KEY 6 (x5 for ON)
(x6 for OFF) - ENTER
or From Models or System Setup
CONFIG - MENU KEY 6 (x5 or 6) - ENTER
Description Diagnostics On & Off are used to route the INTRAC
diagnostic data to the Remote Control port.
Use Menu Key 6 to step the highlight bar to the ON or OFF
line and press ENTER to set.
Note This facility enables one PC to be used as both the remote
control terminal and the diagnostics receiving terminal.
However it cannot do both at the same time.
WHEN IT IS REQUIRED TO CONTROL THE INTRAC FROM
THE REMOTE TERMINAL DIAGNOSTICS MUST BE
SWITCHED OFF.
