Hardware features 5
Hardware features
In this section
Board components ................................................................................................................................... 5
Controller specifications ............................................................................................................................ 5

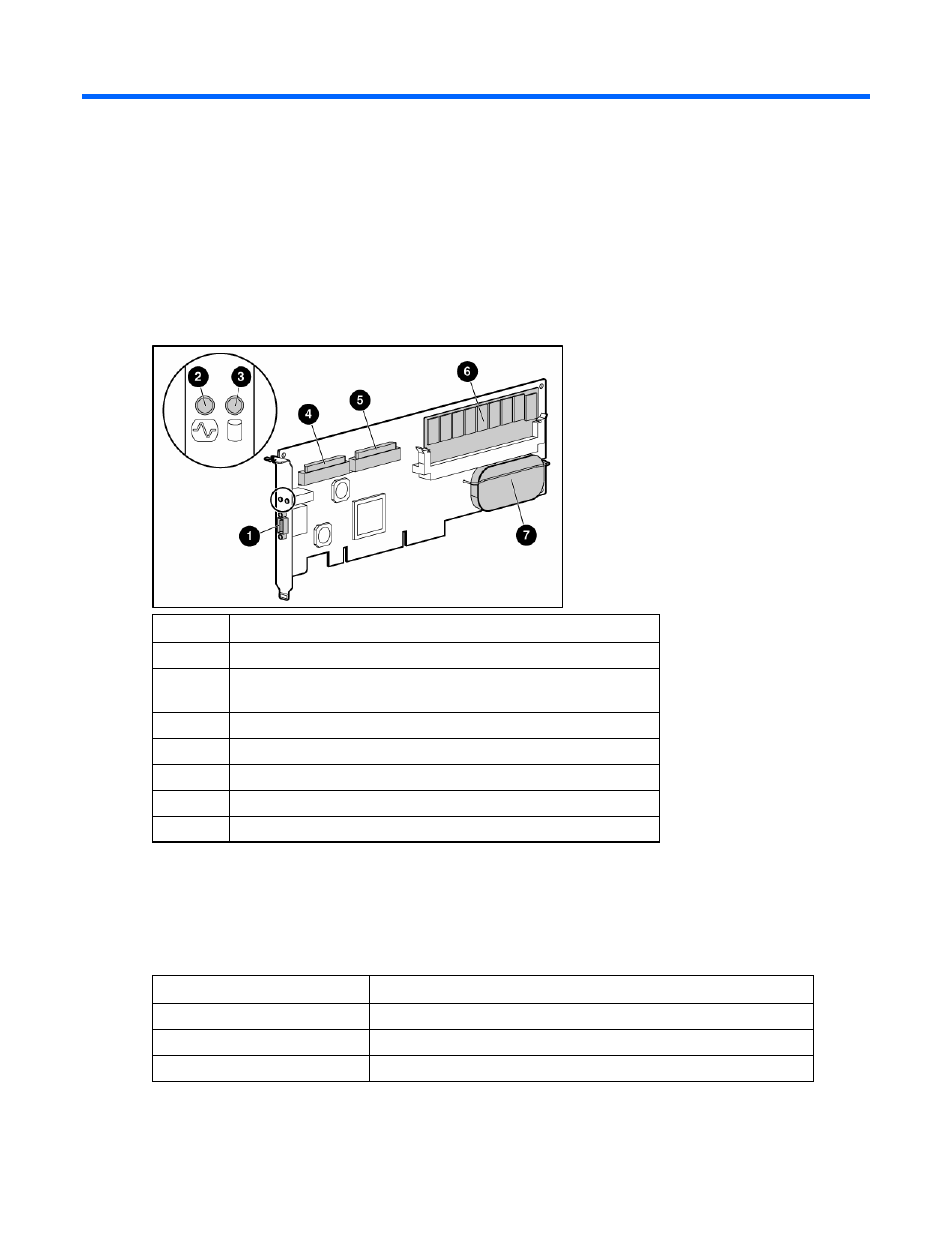

Board components
Item ID Description
1* SAS port 1E (external, shared), 4x wide
2 Controller health LED (blinking green indicates board is OK, amber
indicates board has failed)
3 I/O activity LED (indicates total activity of all ports)
4* SAS port 1I (internal, shared), 4x wide
5 SAS port 2I (internal, dedicated), 4x wide
6 Cache module (also known as BBWC or array accelerator)
7 Secondary (lower) battery for cache module
*Ports 1E and 1I share electrical circuitry. Whenever the controller is reset, it searches for devices connected to port
1E before searching on port 1I. If both these ports are connected to storage devices, the controller discovers and uses
only the devices attached to port 1E. Devices connected to port 1I are not displayed in this case.
Controller specifications
Feature Details
Card type Full-length PCI-X 133
Dimensions (excluding bracket) 31.1 cm x 10.8 cm x 1.8 cm (12.3 in x 4.3 in x 0.7 in)
Power required Approximately 28 W
