Platform overview – HP StorageWorks Scalable File Share User Manual
Page 12

•
Keyboard, video, and mouse (KVM) switch
•
TFT console display
All of the DL380 G5 file system servers must have their eth0 Ethernet interfaces connected to the
ProCurve Switch making up an internal Ethernet network. The iLOs for the DL380 G5 servers
should also be connected to the ProCurve Switch, to enable Heartbeat failover power control
operations. HP recommends at least two nodes with Ethernet interfaces be connected to an
external network.
The MDS server, administration server, and each pair of OSS servers have associated HP
MSA2000fc enclosures.

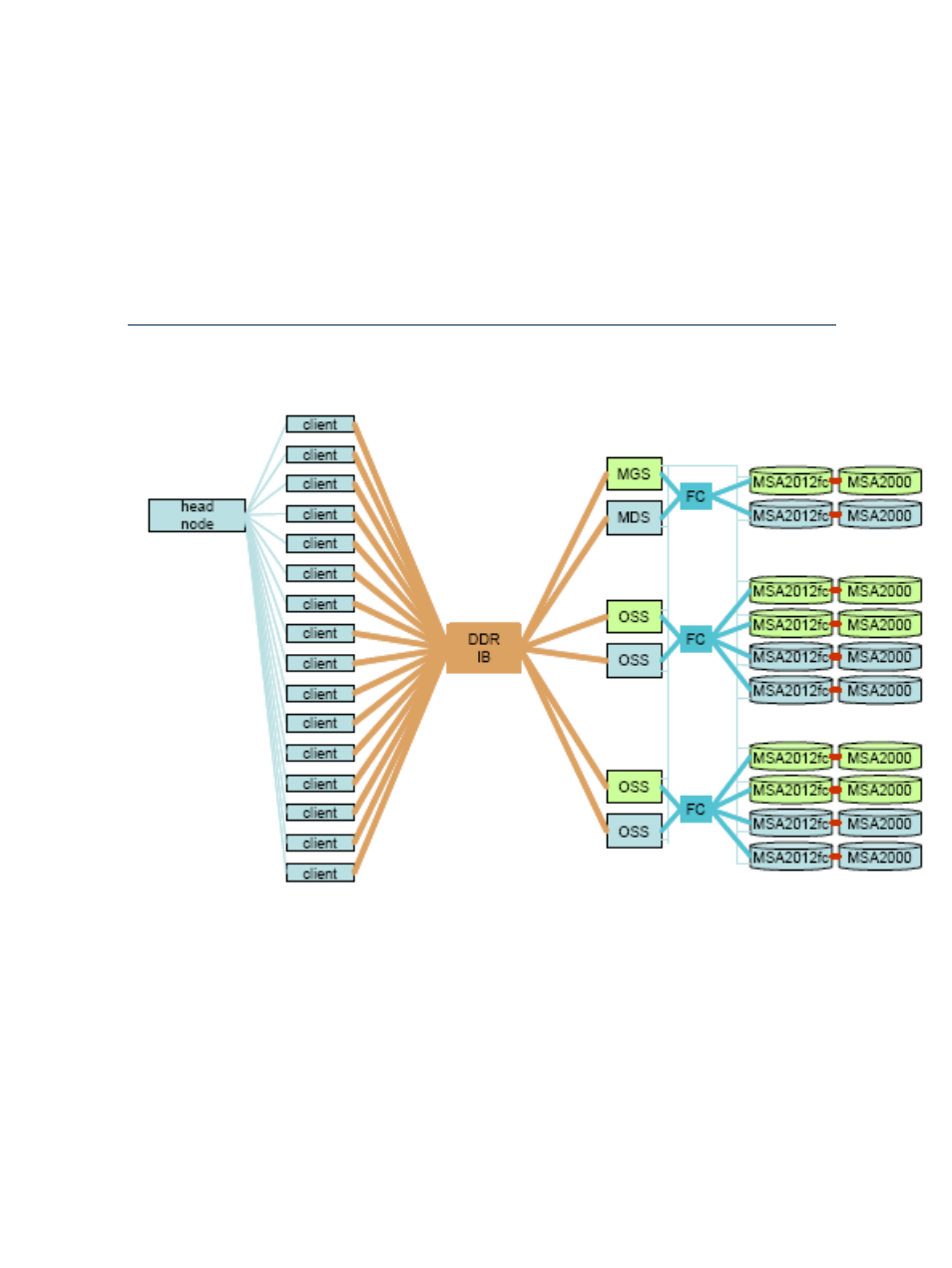

provides a high-level platform diagram. For detailed diagrams
of the MSA2000 controller and the drive enclosure connections, see the HP StorageWorks 2012fc
Modular Smart Array User Guide at:
Figure 1-1 Platform Overview
12
