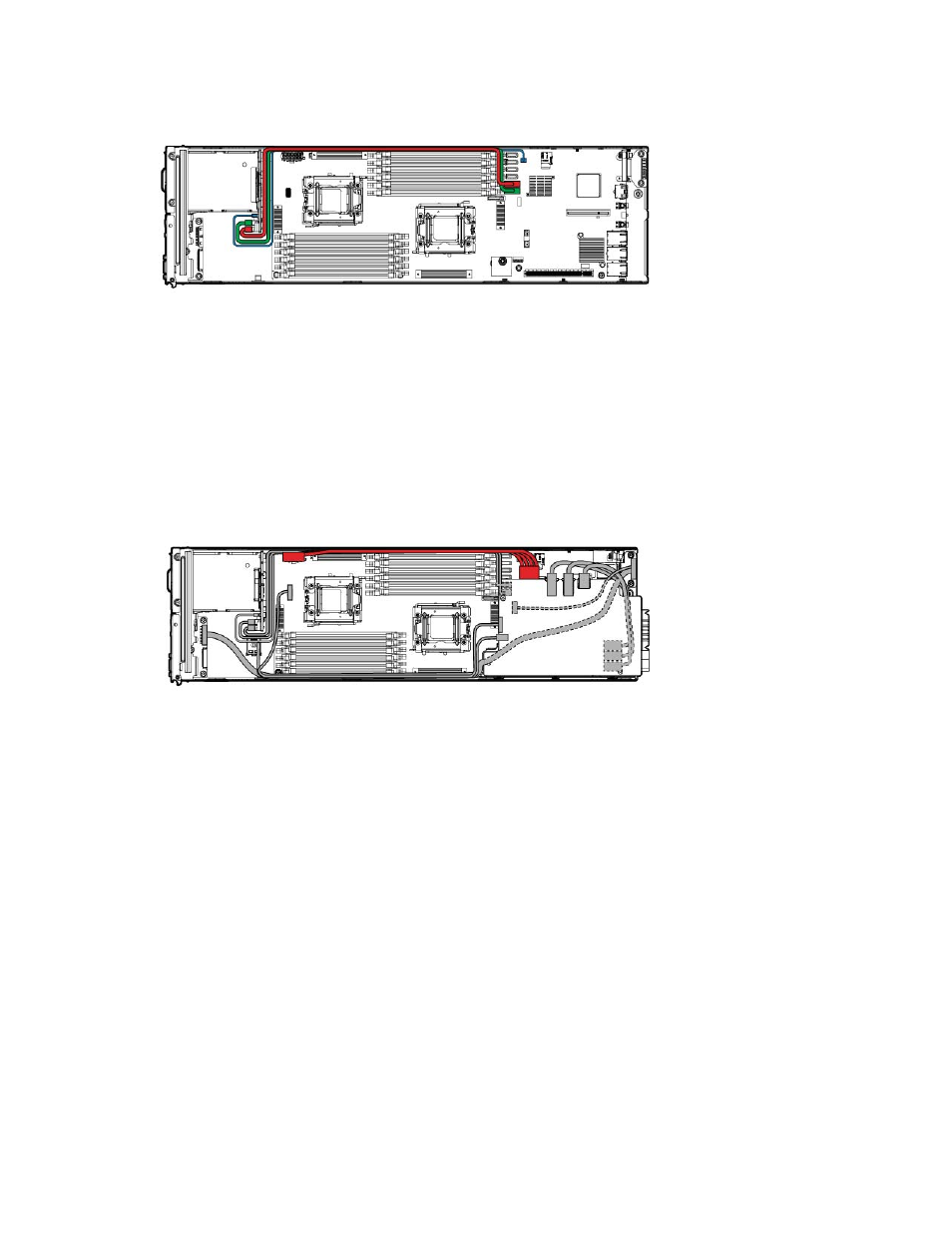

background image

Cabling 45

SATA cabling

The SATA cables route over the HDD data LED cable and underneath the power cable.
Connect and route the cables in the following order:

1.

HDD data LED cable (bottom)

2.

SATA cables

3.

Power cable

Internal power cabling

The power cable routes over the HDD LED cable and SATA cables.
Connect and route the cables in the following order:

1.

HDD data LED cable (bottom)

2.

SATA cables

3.

Power cable
