Hardware options installation 34

12.

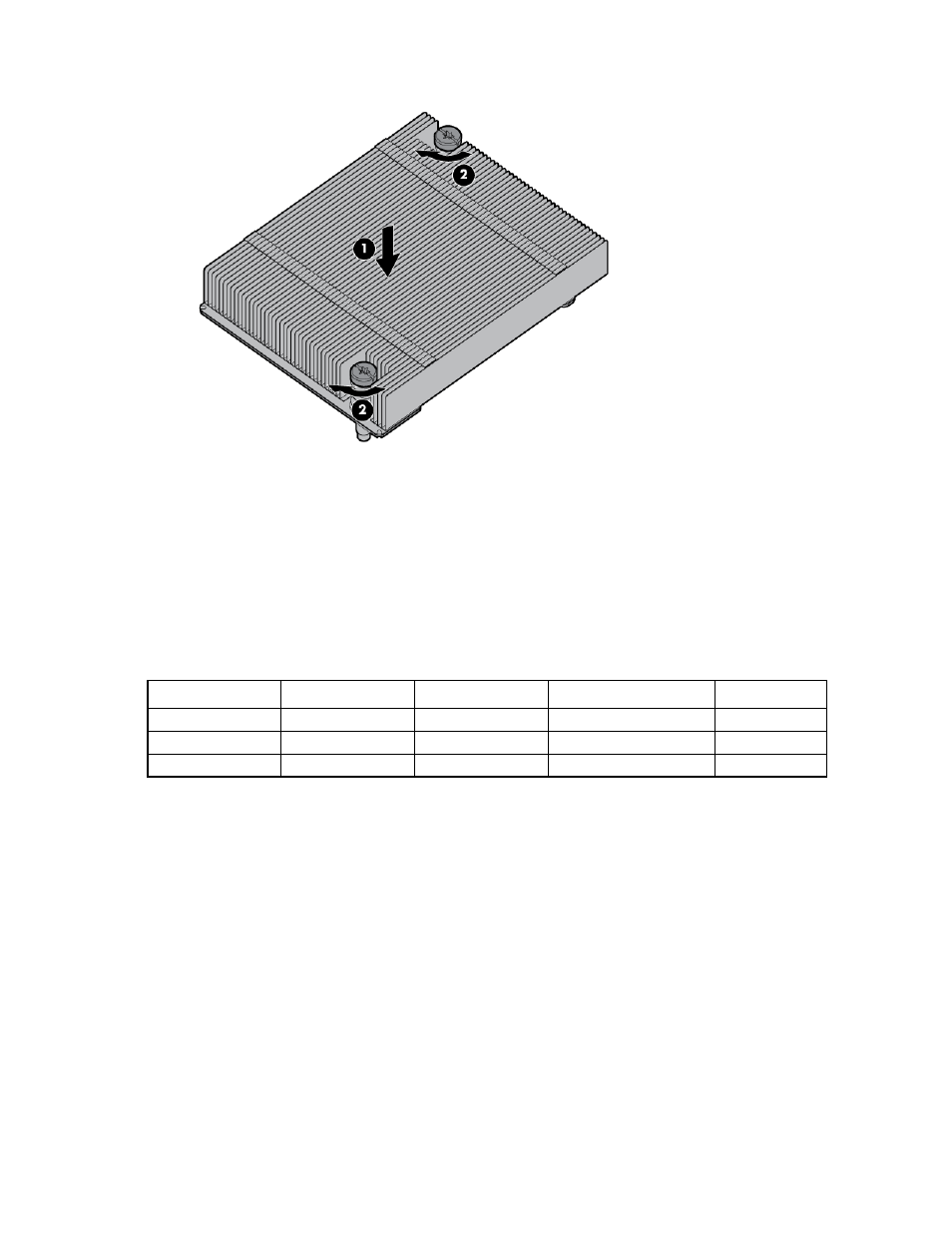

Install the heatsink.

13.

Install the access panel (on page

23

).

14.

Install the node into the chassis ("

Installing a node into the chassis

" on page

27

).

15.

Power up the node ("

Powering up and configuring the server

" on page

28

, "

Powering up the system

"

on page

21

).

Memory options

The node supports single- and dual-rank PC3L-10600 (DDR-1333) RDIMMs operating at up to 1333 MT/s.
Speed, voltage, and capacity

DIMM type

DIMM rank

DIMM capacity

Native speed (MT/s)

Voltage

RDIMM

Single-rank

4 GB

1333

LV

RDIMM

Dual-rank

8 GB

1333

LV

RDIMM

Dual-rank

16 GB

1333

LV

HP SmartMemory

HP SmartMemory, introduced for Gen8 servers, authenticates and unlocks certain features available only on

HP Qualified memory and verifies whether installed memory has passed HP qualification and test processes.
Qualified memory is performance-tuned for HP ProLiant and BladeSystem servers and provides future

enhanced support through HP Active Health and manageability software.
Certain performance features are unique with HP SmartMemory. HP SmartMemory 1.35V DDR3-1333

Registered memory is engineered to achieve the same performance level as 1.5V memory. For example, the
industry supports DDR3-1333 RDIMM at 1.5V, compared to 1.8V for DDR-2 DIMMs. DDR3 Low Voltage

DIMMs operate at 1.35V. For HP ProLiant Gen8 servers, the majority of new DDR3 DIMMs are Low Voltage

as HP SmartMemory enables the same performance as 1.5V. This equates to up to 20% less power at the

DIMM level with no performance penalty. In addition, the industry supports UDIMM at 2 DIMMs per channel
at 1066 MT/s. HP SmartMemory supports 2 DIMMs per channel at 1333 MT/s, or 25% greater bandwidth.
