Component identification 10

drivers, and applications. Many crashes can freeze a system, requiring you to do a hard reset. Resetting the

system erases any information that would support root cause analysis.
Systems running Microsoft® Windows® experience a blue-screen trap when the OS crashes. When this

happens, Microsoft® recommends that system administrators perform an NMI event by temporarily shorting

the NMI header with a jumper. The NMI event enables a hung system to become responsive again.

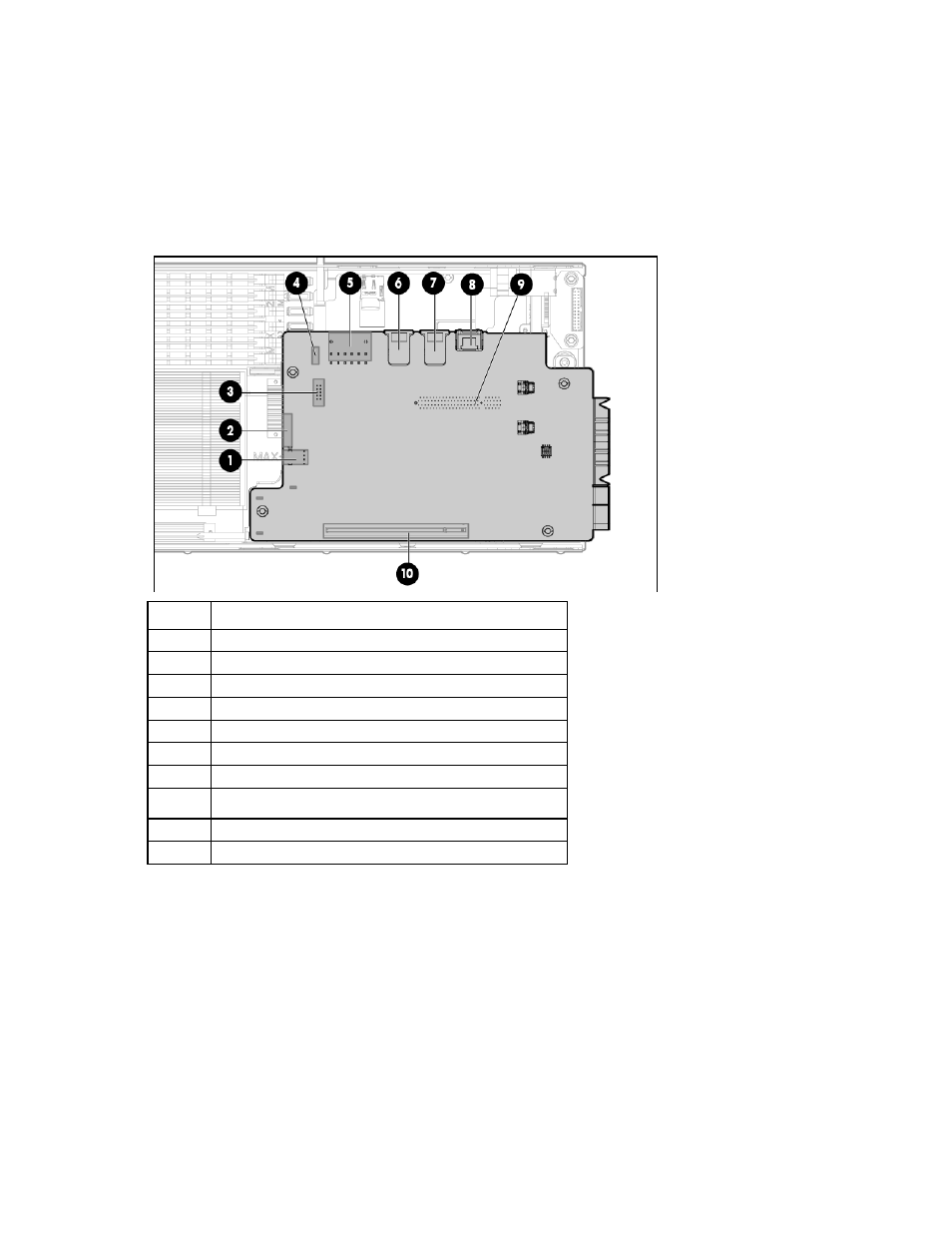

Personality board components

Item

Description

1

Drive power connector

2

RPS connector

3

Serial connector*

4

LED cable connector*

5

Power connector

6

NIC 1 connector

7

NIC 2 connector

8

iLO connector

9

x8 personality board connector

10

x16 personality board connector

* This connector is underneath the board.

Chassis component identification

The following sections provide information on chassis LEDs and connectors. For information on chassis
options installation, see the HP ProLiant SL4500 Series Setup and Installation Guide. For information on

component removal and replacement, see the HP ProLiant SL4500 Series Chassis Maintenance and Service

Guide.
