HP StorageWorks XP Remote Web Console Software - Manual (Page 52)

10. Once the device is defined using the Add Device dialog box, you must direct HCD to add
this device to a specific Processor/System-ID combination.
“Device / Processor Definition
Dialog Box − Selecting the Processor ID” (page 57) and “Define Device / Processor Dialog
Box” (page 57) show the HCD dialog boxes used to select the Processor and System-ID to
which this device will be added.
11. After you select the OS configuration on the Define Device to Operating System Configuration
dialog box (see
“Define Device to OS Configuration Dialog Box − Selecting the OS
Configuration” (page 58) ), you are prompted to select the device or disconnect the device
from the selected OS (see “Select / Disconnect Option” (page 58) ). Select option 1 (Select).
12. The Define Device Parameters / Features dialog box (see “HCD Device Parameters” (page 59) )
displays the default device parameters.
The WLMPAV parameter defaults to YES.

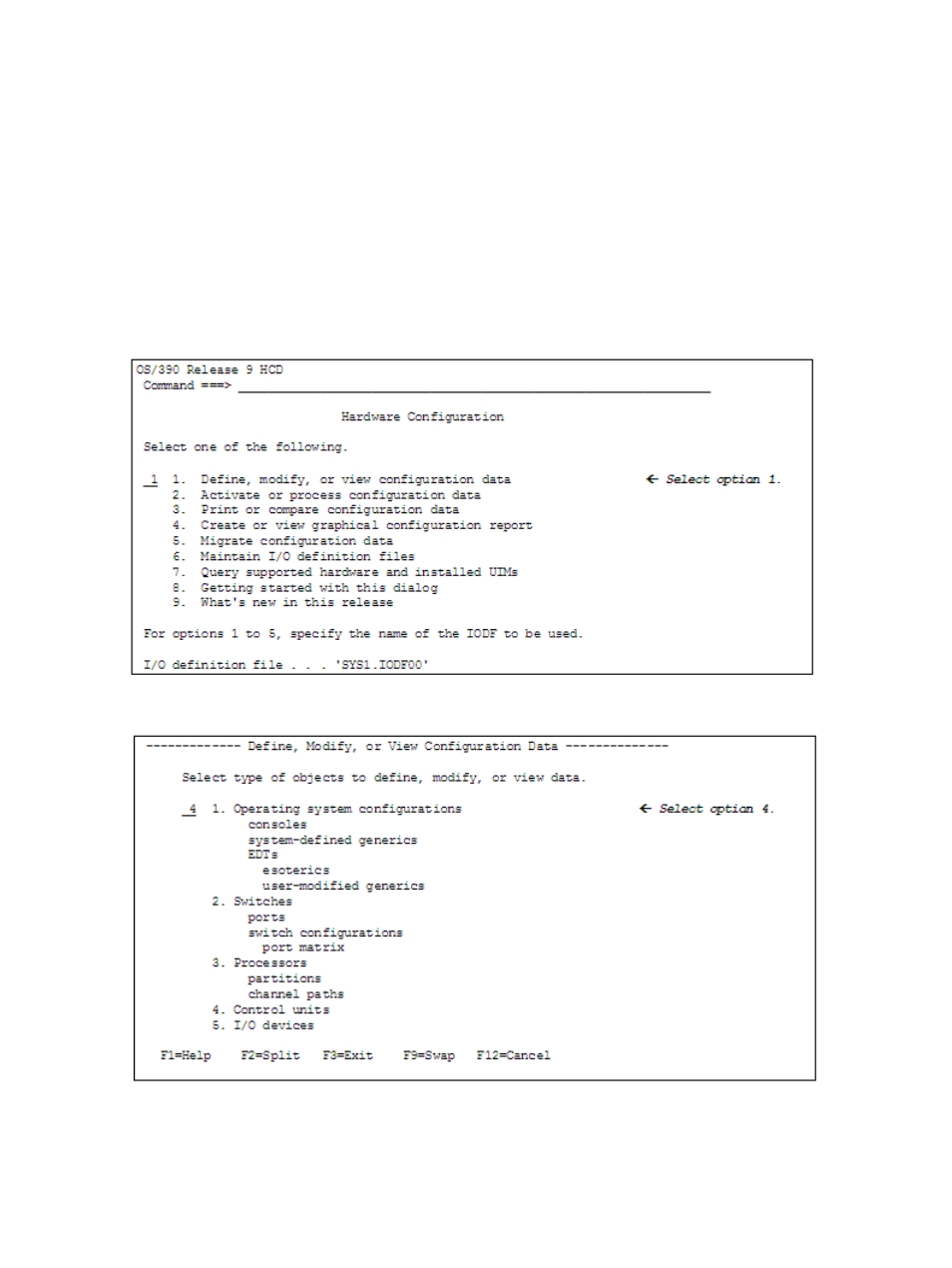

Figure 38 Basic HCD Dialog Box
Figure 39 Define, Modify, or View Configuration Data
52 Using HCD to Define and View Storage System Logical Control Units and Compatible PAV Devices
