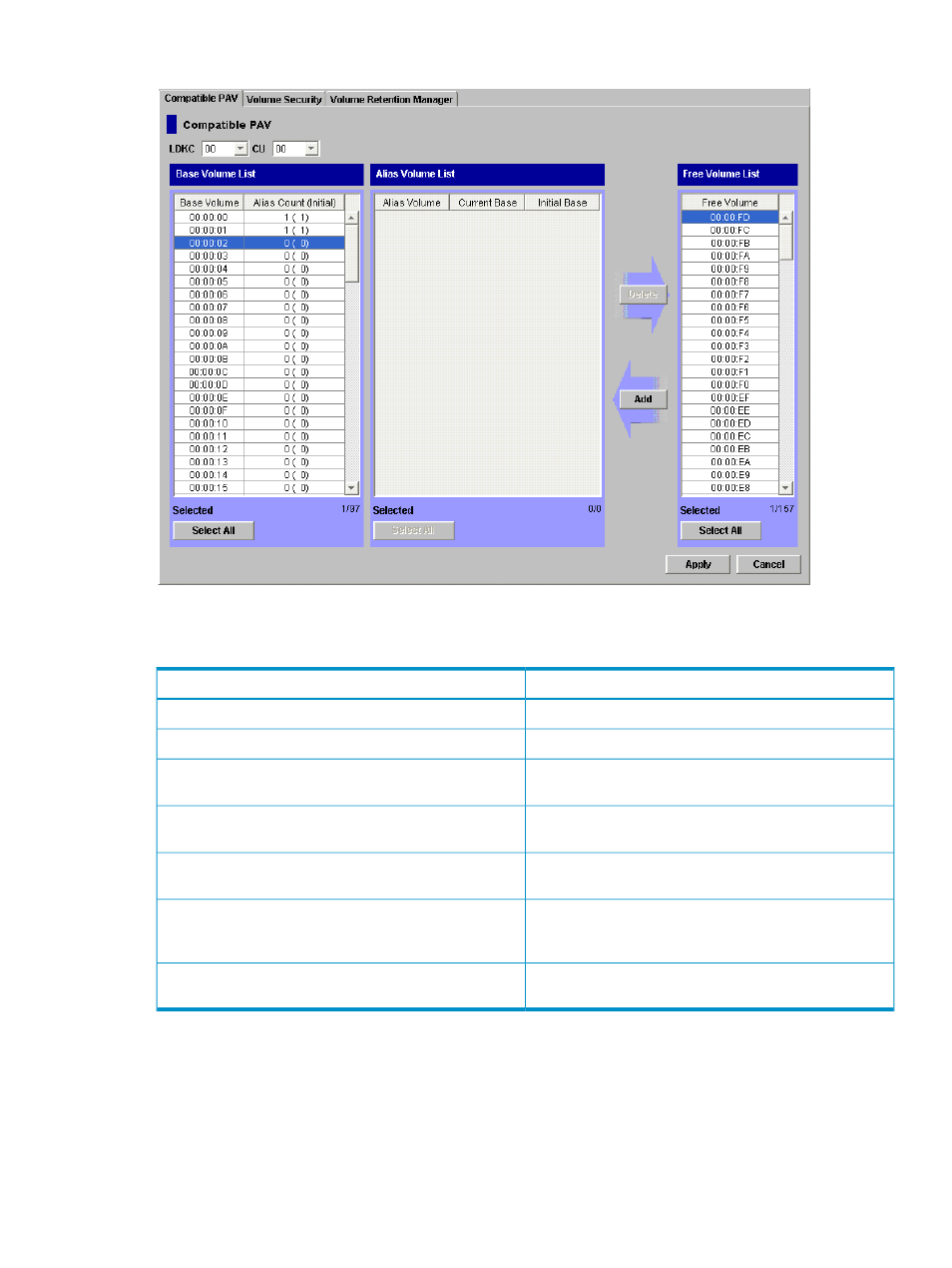

Figure 10 Compatible PAV Window
An LDEV that displays with a pound or gate symbol as a suffix (for example, 00:00:00 #), indicates
that the LDEV is an external volume. The LDKC list box allows you to select the desired LDKC number.
Description Item
Selects the LDKC and CU that contain the desired volumes. LDKC and CU lists
Shows the Compatible PAV capacity values. Compatible PAV Used Capacity
Displays the LDEVs that are currently in use in the selected
CU image. Base Volume List
Displays the alias devices assigned to the selected base
devices. Alias Volume List
Displays the LDEV IDs of unused volumes in the selected
CU. Free Volume List
Allows you to delete or cancel existing alias devices that
are assigned to base devices and add or assign new alias
devices to base devices. Delete and Add buttons
Allows you to apply or cancel the requested Compatible
PAV operation for the XP24000/XP20000 disk arrays. Apply and Cancel buttons
LDKC/CU Selection Line
Figure 11 (page 26) shows the LDKC/CU selection line, which is located in the upper left corner
of the Compatible PAV window. The LDKC/CU selection line allows you to select the LDKC and
CU that contain the desired volumes.
