Item Description Status
16 NIC 1 link/ activity LED Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
17 NIC 2 link/ activity LED Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
18 Power on/Standby button
and LED
Amber = System has AC power and is in standby mode
Green = System has AC power and is turned on
Off = System has no AC power
19 Processor memory module N/A
1 2
13 12 11 10 9 8 7 6 5
3 4
17 16
15
14

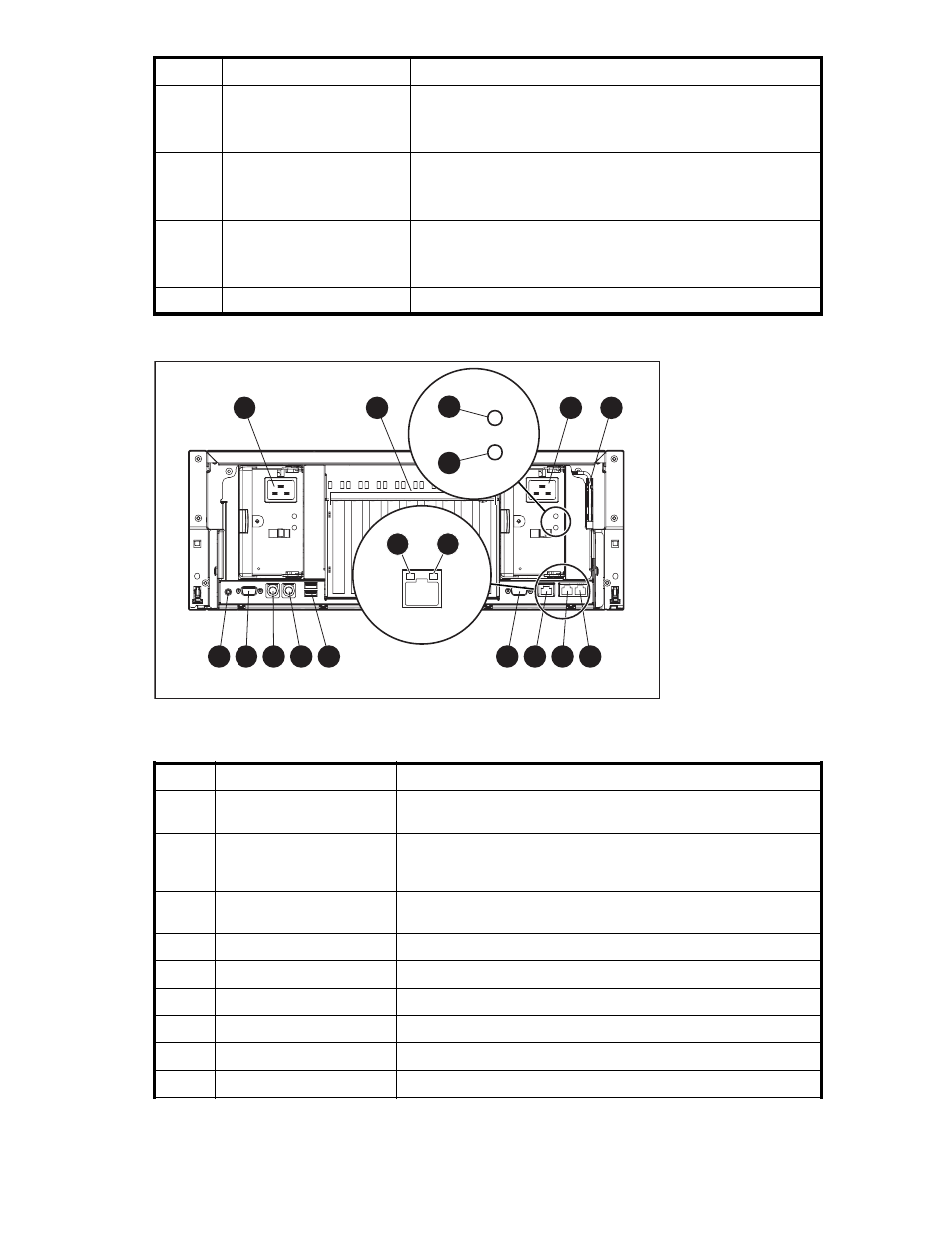

Figure 31 DL585 G2 rear panel
Table 18 DL585 G2 rear panel components
Item Description Status
1 Redundant hot-plug power
supply (optional)
N/A
2 PCI Express and PCI-X
non-hot-plug expansion
slots
N/A
3 Hot-plug power supply
(primary)
N/A
4 T-15 Torx screwdriver N/A
5 NIC connector 2 N/A
6 NIC connector 1 N/A
7 iLO 2 connector N/A
8 Serial connector N/A
9 USB connectors (two) N/A
HP ProLiant Storage Server 131
