Dl585 g2 hardware components, Dl320s rear panel, Dl320s rear panel components – HP ProLiant DL585 G2 Storage-Server User Manual

Page 129

background image

1

2

3

4

5

6

7

8

9

10

11

12

13

1

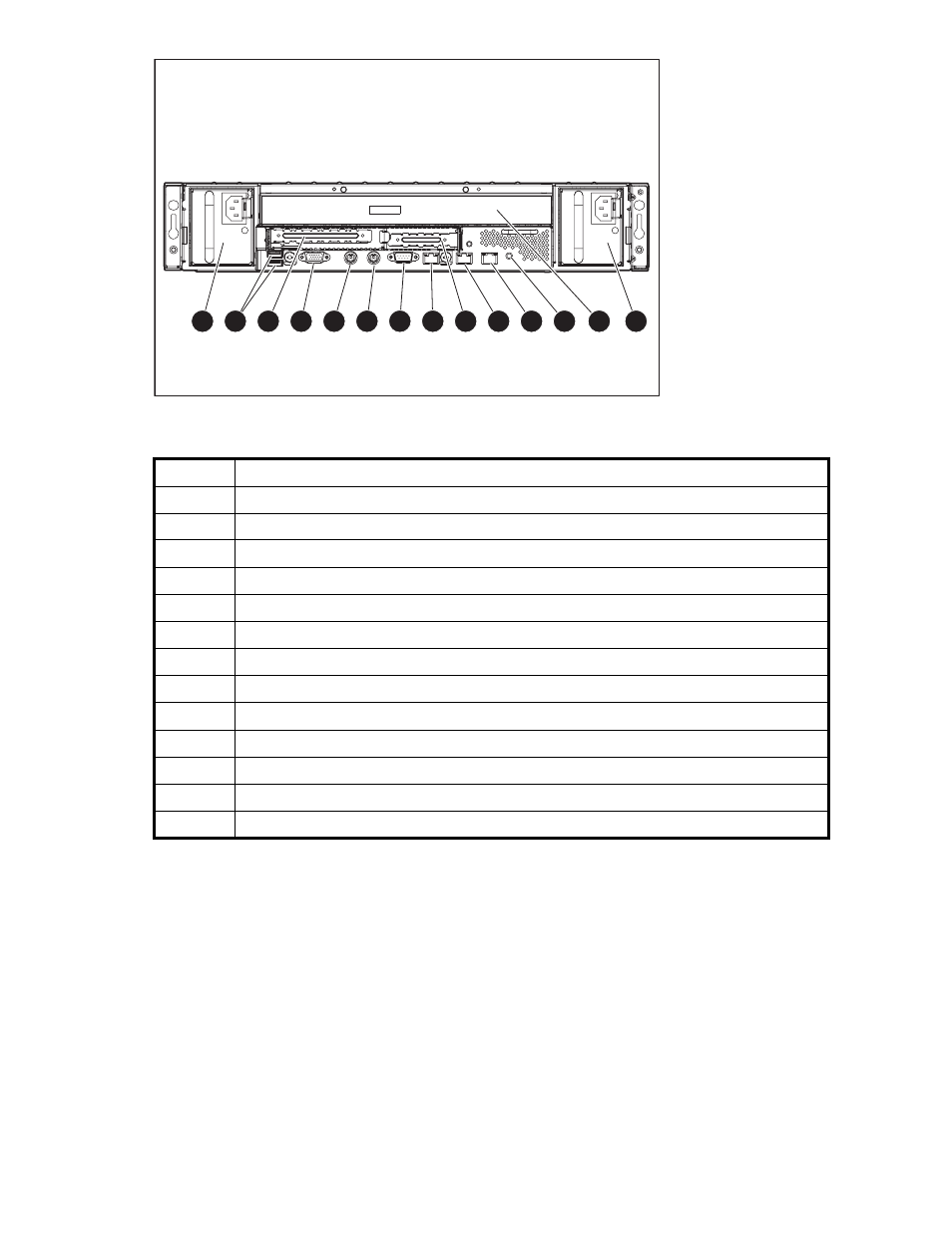

Figure 29 DL320s rear panel
Table 16 DL320s rear panel components

Item

Description

1

Power supply

2

USB connectors (2)

3

PCI Express x4 expansion slot 2 (full-length)

4

Serial connector

5

Mouse connector

6

Keyboard connector

7

Video connector

8

10/100/1000 NIC 2 connector

9

PCI Express expansion slot 1 (low-profile, half-length)

10

10/100/1000 NIC 1 connector

11

iLO 2 connector

12

UID button/LED

13

DVD-RW drive

DL585 G2 hardware components

The following figures show components, controls, and indicators located on the front and rear panels of

the DL585 G2 storage server.

HP ProLiant Storage Server

129
