NOTE:
Connectivity state information is available only for monitored switches.
Using SAN Topology
To view the graphical topology of SAN:
•
Click SAN Topology on the navigation menu. A Topology page is displayed with its component
and sub-components.
This page consists of:
◦
A graphical view of the topology depicting the connectivity as shown in
◦
A component based view is categorized based on their type and connectivity in the SAN.
NOTE:
The connectivity between any two SAN components is shown only by a single line, even
if there are multiple physical connections between the components. In case of multiple physical
connections, a hatch (||) is shown across the line at the center.
Besides the hatch number of good connections or number of total connections will be shown as
for example: || 2/3. In this example, out of 3 connections 2 are in good state. State of connections
are shown in the tool tip.

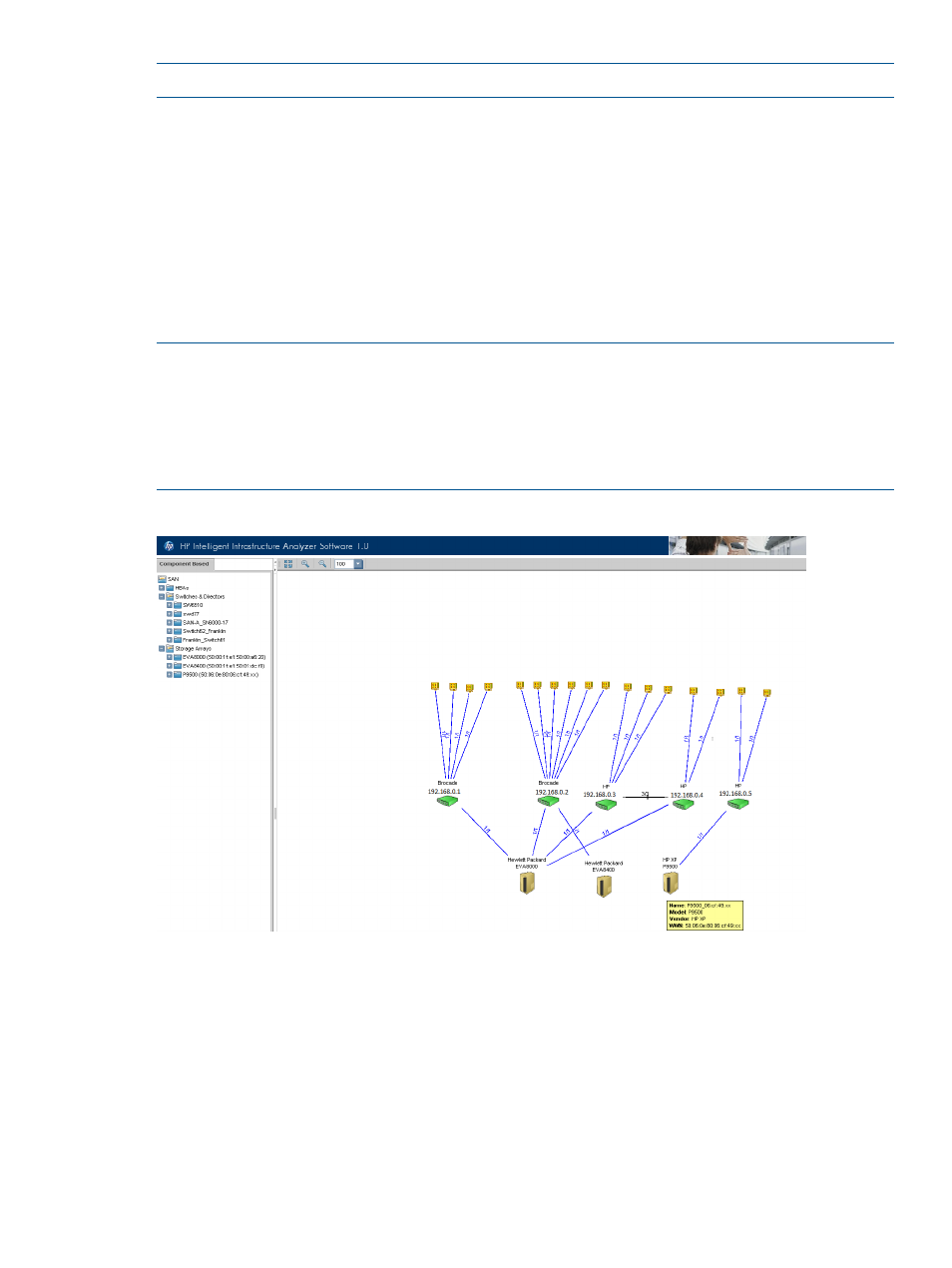

Figure 7 SAN Topology
SAN Inventory
The inventory list shows the following details:
•
SAN Switches
•
Connected Storage devices and HBAs
If you click a component, the details are displayed as shown in
.
SAN Inventory
15
