Setup 21

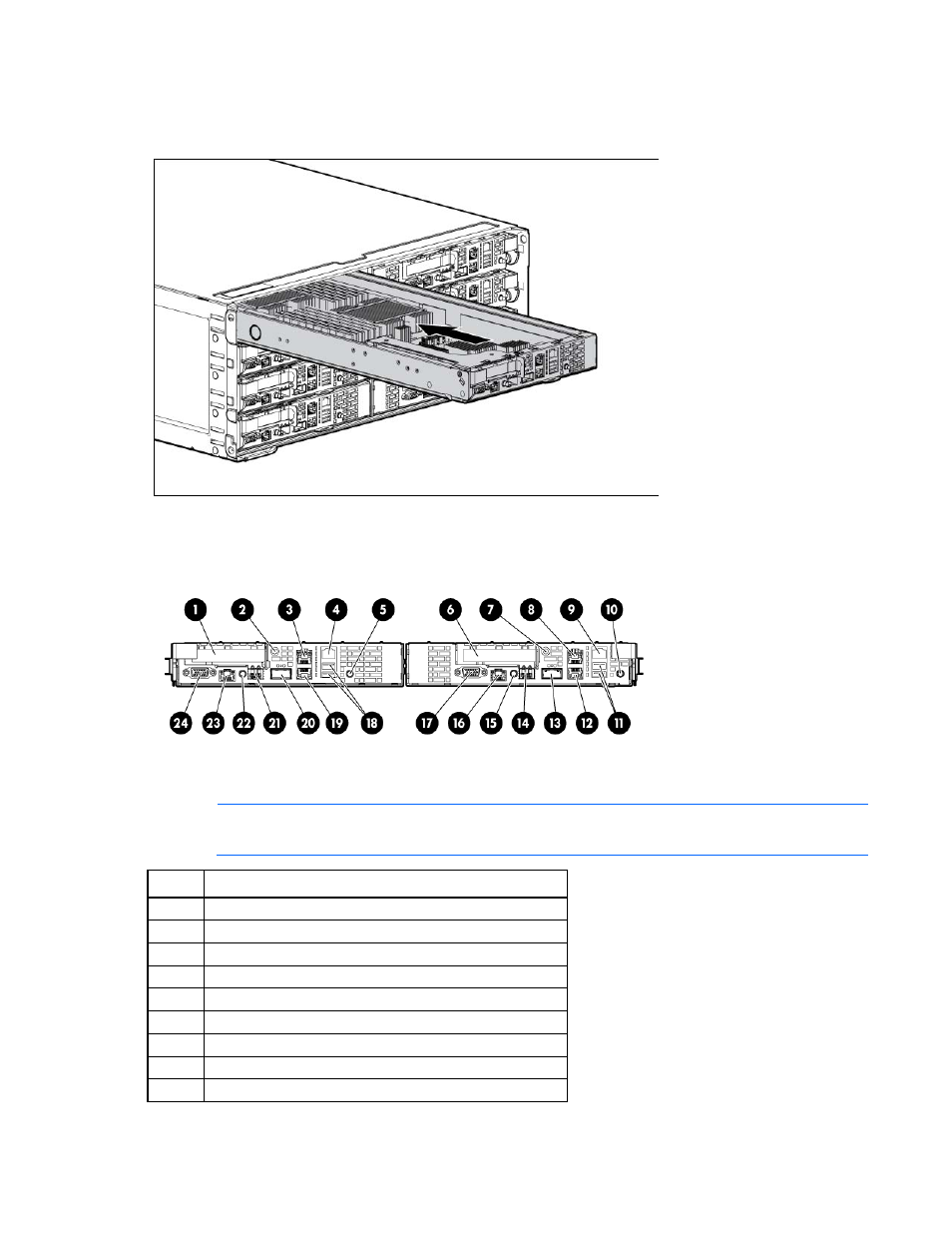

Installing the server into the chassis

1.

Insert the system tray into the chassis.

2.

Connect peripheral devices to the server.

NOTE:

This figure illustrates the left and right system trays.

Item

Description

1

Front PCIe bracket (LP slot)

2

Health LED

3

NIC 1 network port/iLO 3 sideband port

4

iLO 3 network port

5

UID LED/SW

6

Front PCIe bracket (LP slot)

7

Health LED

8

NIC 1 network port/iLO 3 sideband port

9

iLO 3 network port
