Component identification 7
Item Description Status
Red flashing = Critical condition
3 Flex 1 LED Green = Network linked
Green flashing = Network activity
Off = No link or activity
4 Flex 2 LED Green = Network linked
Green flashing = Network activity
Off = No link or activity
5 Flex 3 LED Green = Network linked
Green flashing = Network activity
Off = No link or activity
6 Flex 4 LED Green = Network linked
Green flashing = Network activity
Off = No link or activity
7 System power LED Green = On
Green flashing = Server is requesting power.
Amber = Standby (auxiliary power available)*
Off = Off
*If the Onboard Administrator denies power to the server blade, the server blade returns to Standby mode.

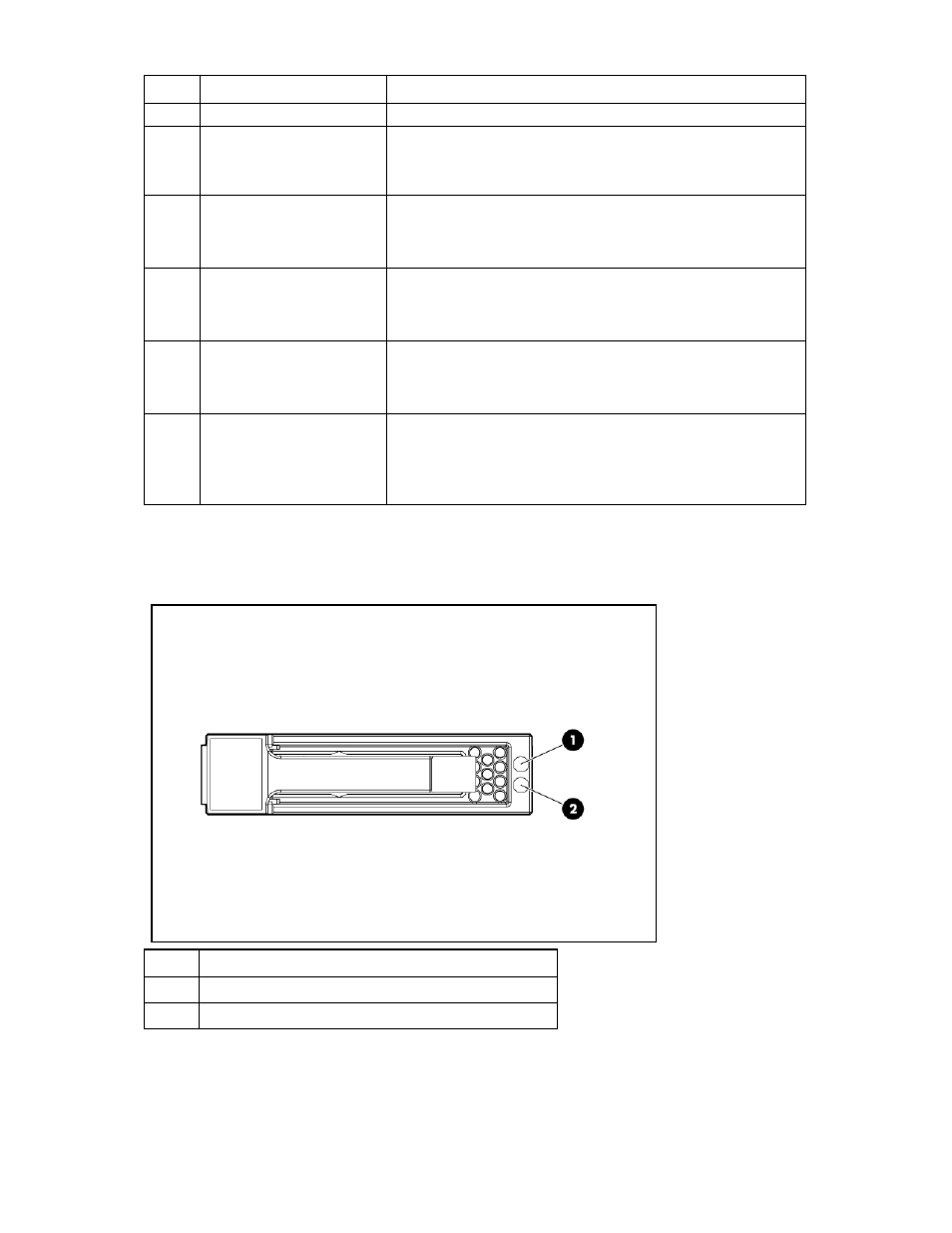

SAS and SATA hard drive LEDs
Item Description
1 Fault/UID LED (amber/blue)
2 Online LED (green)
SAS and SATA hard drive LED combinations
