Hardware options installation 31
Population order DIMM slot
2nd 5B
3rd 3C
4th 7D
5th 2E
6th 6F
7th 4G
8th 8H

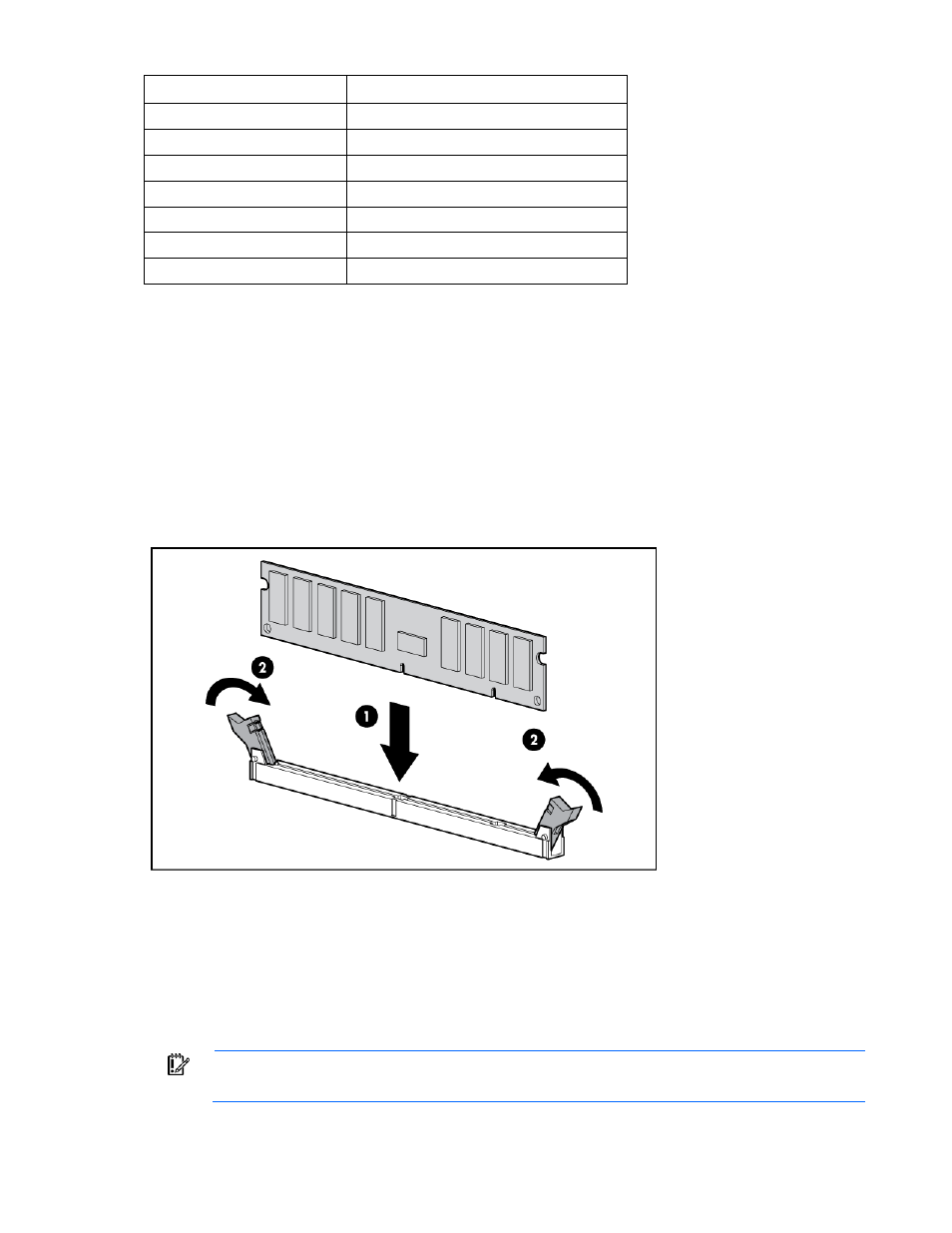

Installing DIMMs
To install the component:
1. Power down the server blade (on page 14 ).
2. Remove the server blade (on page 15 ).
3. Remove the access panel (on page 16 ).
4. Remove the DIMM baffle (" Remove the DIMM baffles " on page 17 ).
5. Open the DIMM slot latches.
6. Install the DIMM.
7. Install all DIMM baffles (" Install the DIMM baffles " on page 17 ).
8. Install the access panel (on page 16 ).
9. Install the server blade (" Installing a server blade " on page 26 ).
10. Power up the server blade (on page 14 ).
Hot-plug SAS or SATA hard drive option
IMPORTANT: To avoid improper operation, install only hot-plug hard drives in this server
blade.
