Setup 24

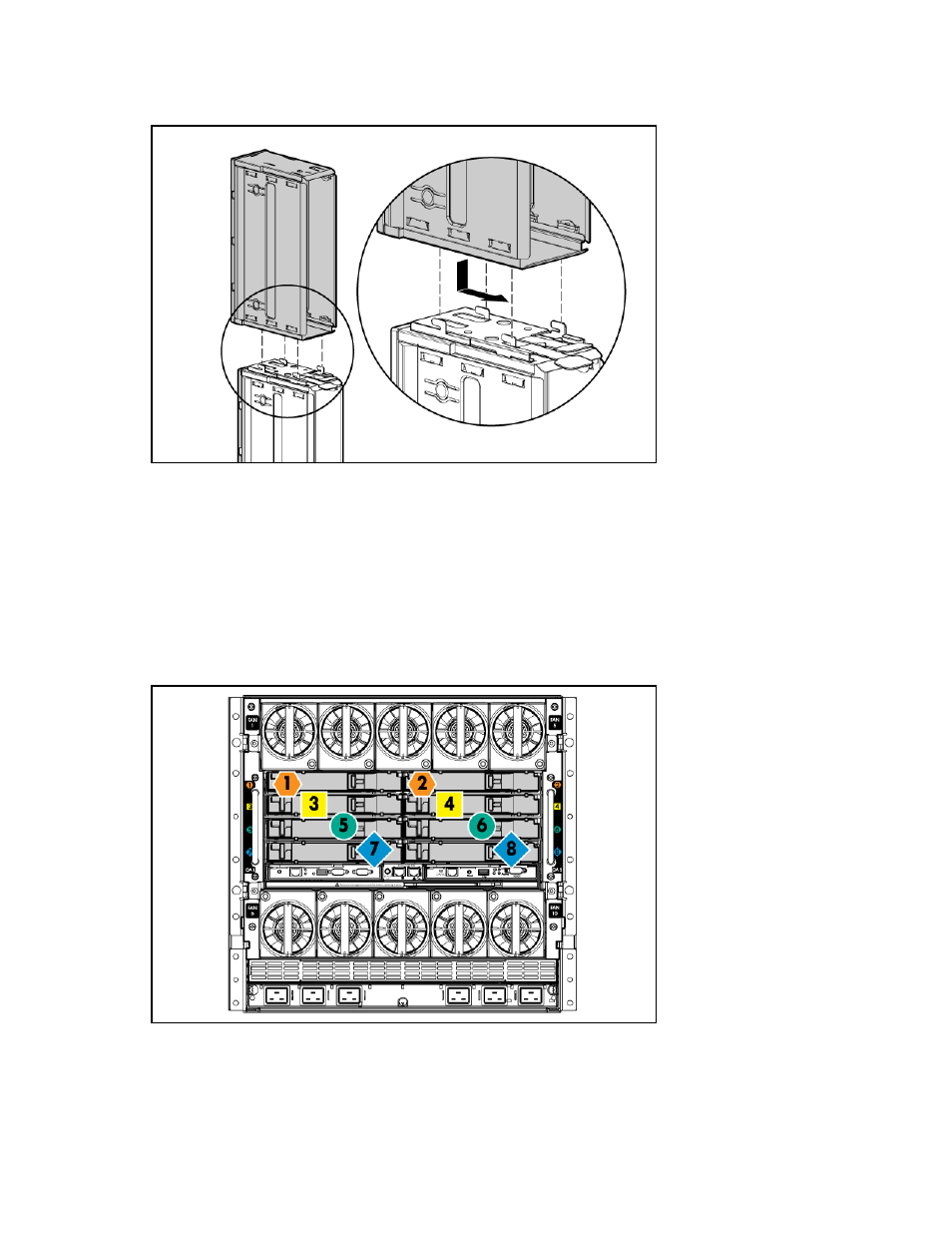

3. Fit the slots on the bottom of the second blank on to the tabs on the coupler plate, and then slide the
second blank forward until it snaps in place.
4. Install the full-height blank into the device bay.
Installing interconnect modules
For specific steps to install interconnect modules, see the documentation that ships with the interconnect
module.
Interconnect bay numbering and device mapping
• HP BladeSystem c7000 Enclosure
