HP ProLiant BL685c G7 Server-Blade User Manual
Page 21
Setup 21
2.

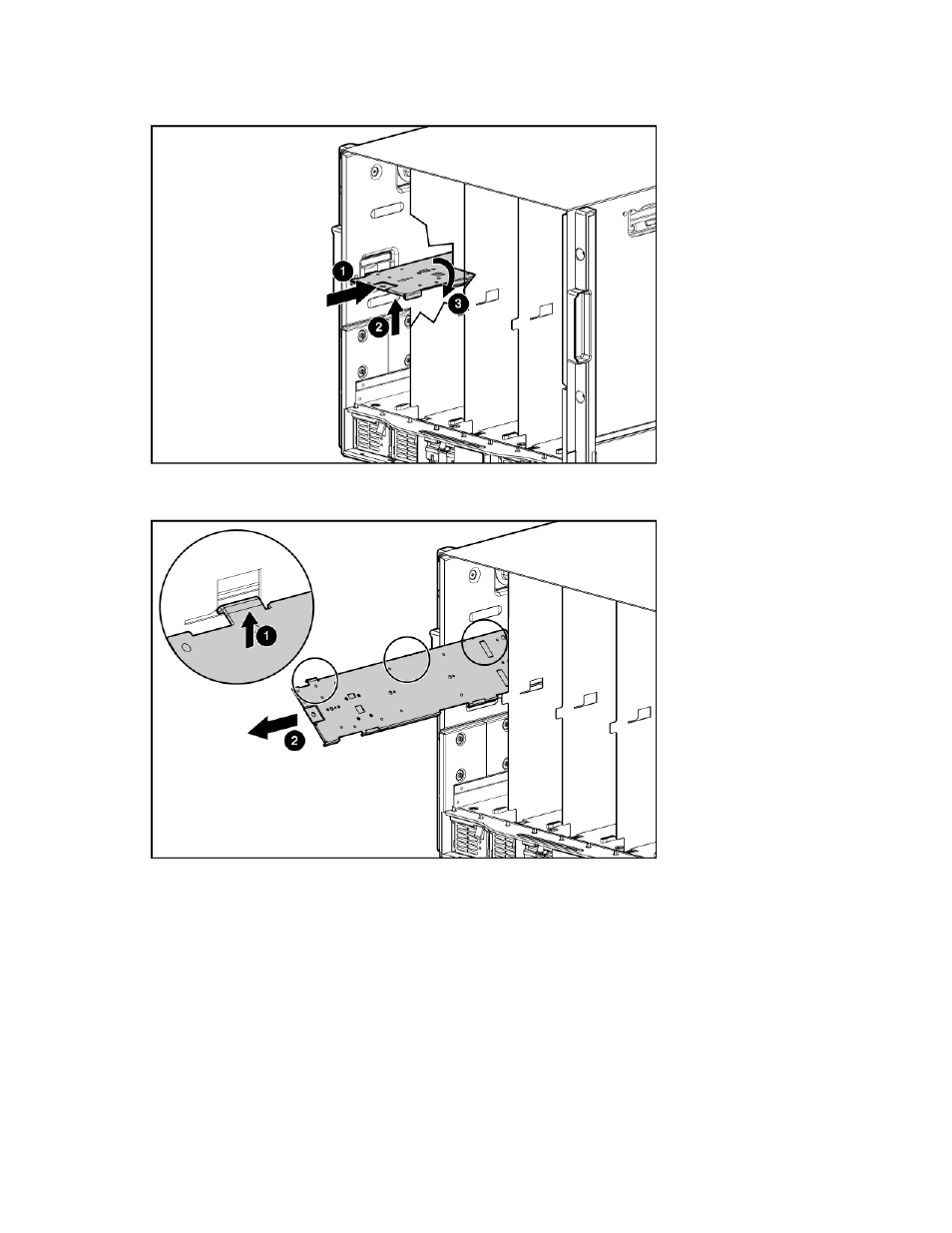

Push the device bay shelf back until it stops, lift the right side slightly to disengage the two tabs from
the divider wall, and then rotate the right edge downward (clockwise).
3.
Lift the left side of the device bay shelf to disengage the three tabs from the divider wall, and then
remove it from the enclosure.
