Cabling 47
NOTE: For this configuration, a USB hub is not necessary. To connect additional devices, use
a USB hub.
1. Connect the SUV cable to the server blade.
2. Connect the video connector to a monitor.
3. Connect a USB mouse to one USB connector.
4. Connect a USB keyboard to the second USB connector.

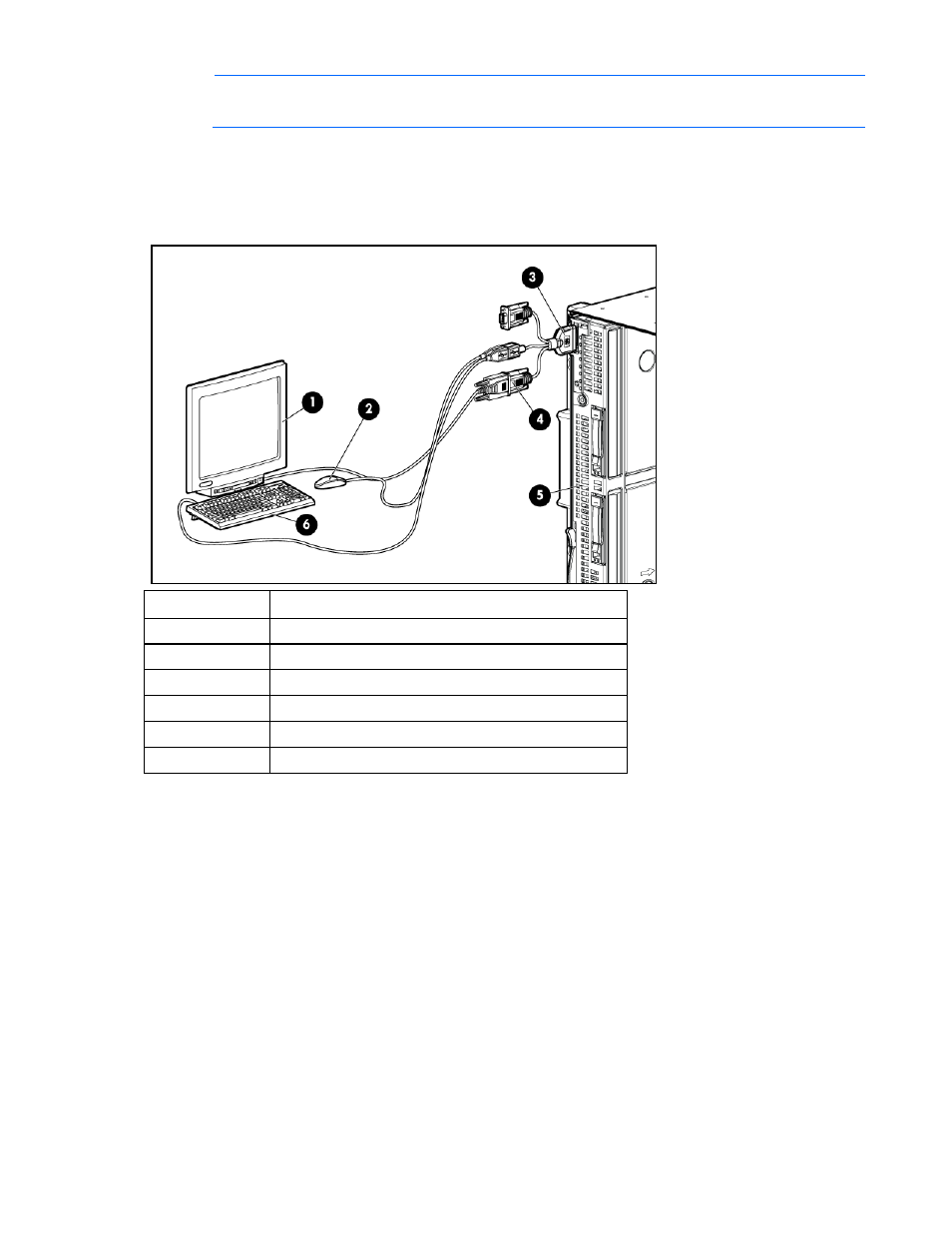

Item Description
1 Monitor
2 USB mouse
3 HP c-Class Blade SUV Cable
4 Video connector
5 Server blade
6 USB keyboard
Accessing local media devices
Use the following configuration when configuring a server blade or loading software updates and
patches from a USB CD/DVD-ROM or a USB diskette.
1. Connect the SUV cable to the server blade.
2. Connect the video connector to a monitor.
3. Connect a USB hub to one USB connector.
4. Connect the following to the USB hub:
o USB CD/DVD-ROM drive
o USB keyboard
o USB mouse
o USB diskette drive
