Hardware options installation 33
3.

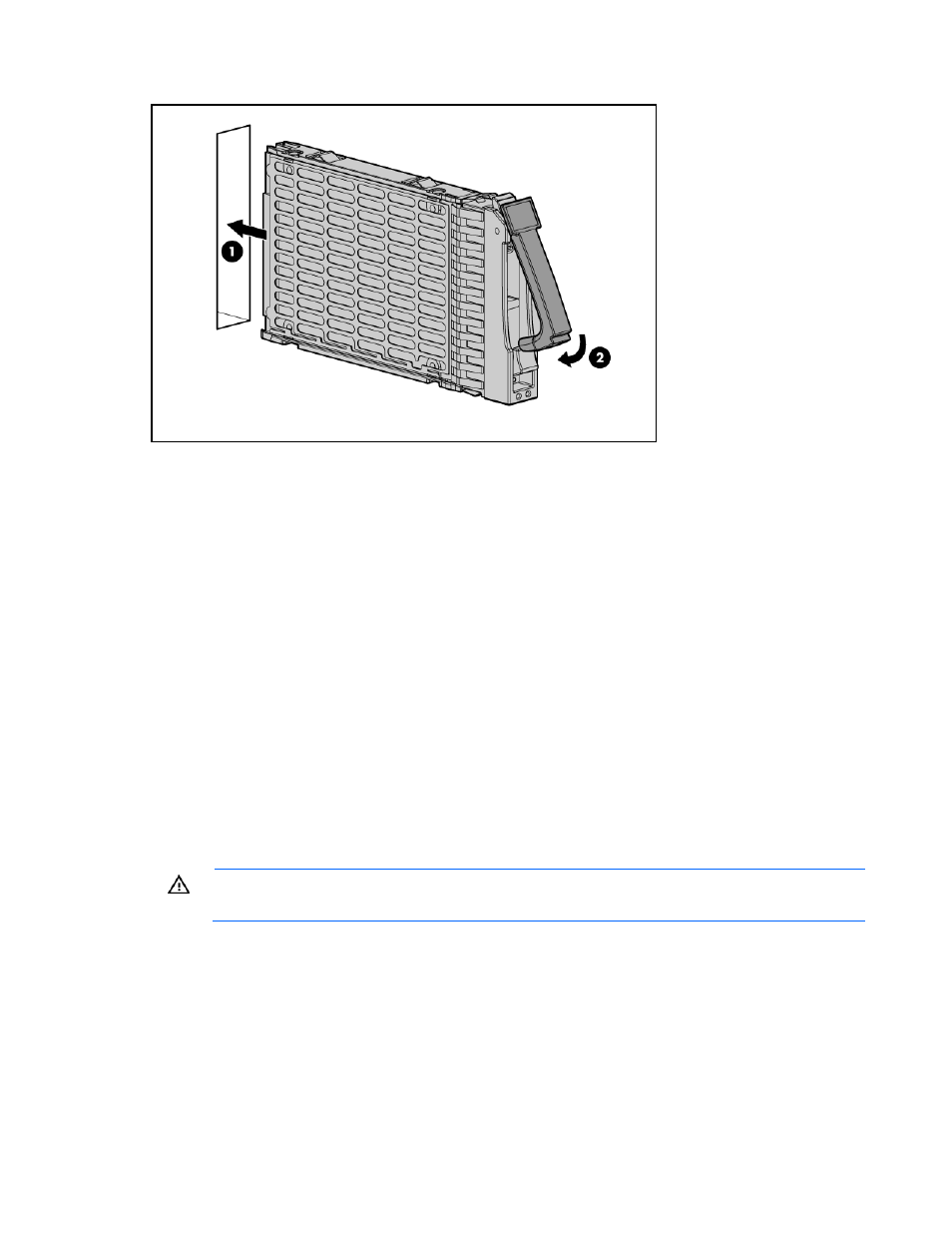

Install the hard drive.
4.
Determine the status of the hard drive from the hot-plug hard drive LEDs ("
" on page
5.
Resume normal server blade operations.
Mezzanine card option
Optional mezzanine cards provide additional I/O support. For mezzanine card locations, see "System
board components (on page
)."
For mezzanine card signal mapping, see "Interconnect bay numbering and device mapping (on page
)" and the installation instructions that ship with the server blade.
Optional mezzanine cards are classified as Type I mezzanine cards and Type II mezzanine cards. The
card type determines where it can be installed in the server blade:
•
Install Type I mezzanine cards on any mezzanine connector.
•
Install Type II mezzanine cards on Mezzanine 2 connector or Mezzanine 3 connector only.
Because mezzanine cards are supported on multiple server blade models, the mezzanine card may have
captive screws that are not required to secure it to the server blade. When installing a mezzanine card in
this server blade, only two captive screws are required.
WARNING:
To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
To install the component:
1.
Power down the server blade (on page
2.
Remove the server blade (on page
3.
