Component identification 6
Component identification

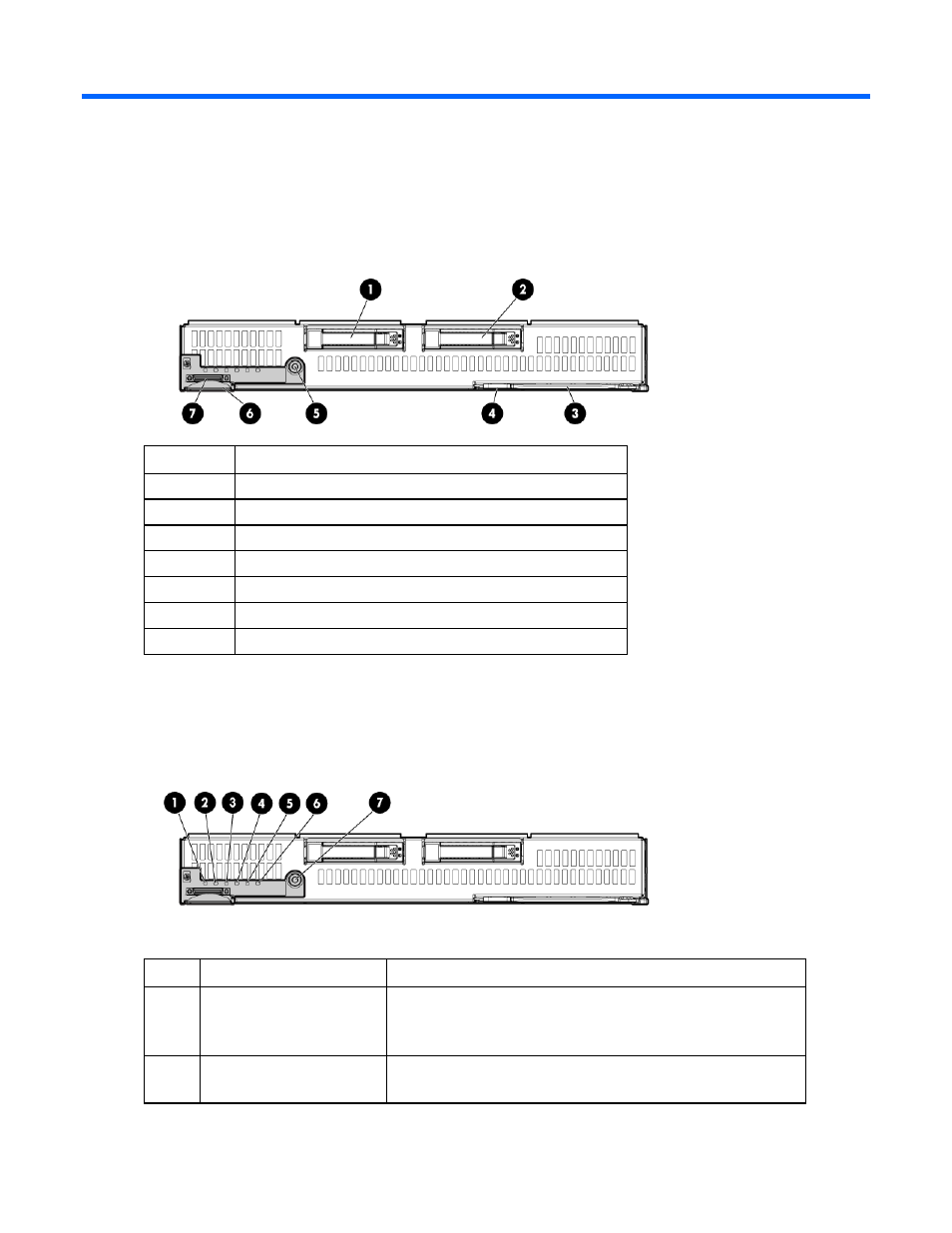

Front panel components
Item Description
1 Hard drive bay 1
2 Hard drive bay 2
3 Server blade release lever
4 Server blade release button
5 Power On/Standby button and LED
6 Serial label pull tab
7 HP c-Class Blade SUV Cable connector*
* The SUV connector and the HP c-Class Blade SUV Cable are for some server blade configuration and diagnostic
procedures.
Front panel LEDs
Item Description Status
1 UID LED Blue = Identified
Blue flashing = Active remote management
Off = No active remote management
2 Health LED Green = Normal operation
Amber flashing = Degraded condition
