S-video – HP USB Hybrid ATSC NTSC QAM FM TV Tuner User Manual
Page 24

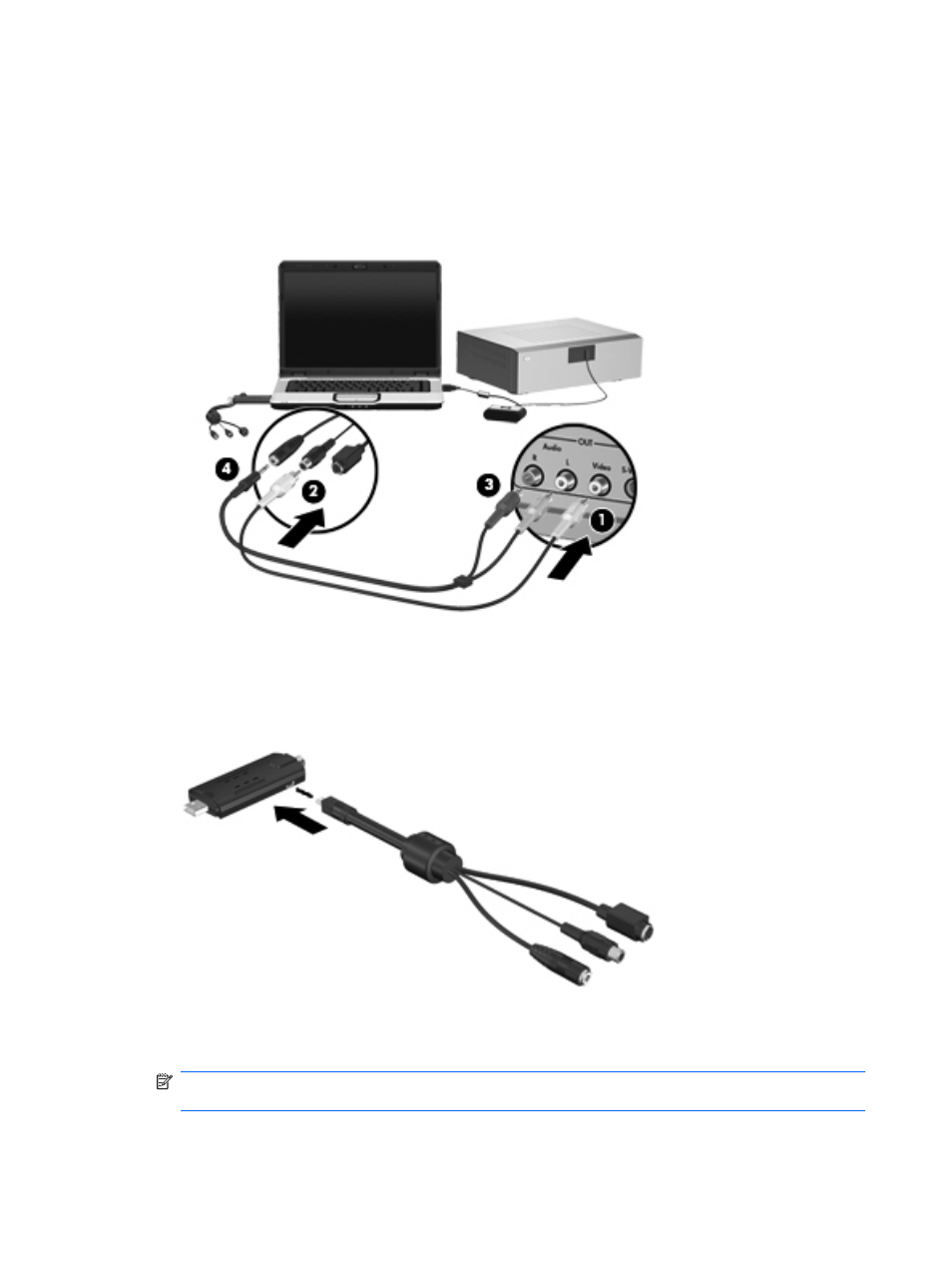

3.
Connect the other end of the composite video cable (2) to the composite-in jack on the audio/
video cable.
4.
Connect a 3.5-mm stereo cable (purchased separately) to the audio jacks on your cable or
satellite receiver (3).
5.
Connect the other end of the 3.5-mm stereo cable to the 3.5-mm stereo jack on the audio/video
cable (4).
S-Video
To connect S-Video, follow these steps:
1.
Connect the audio/video cable to the USB port on the TV tuner.
2.
Connect an S-Video cable (purchased separately) (1) to the S-Video-out jack on your cable or
satellite receiver.
NOTE:
Refer to the manufacturer's instructions provided with your cable or satellite receiver for
the exact location and labeling of jacks on your receiver.
3.
Connect the other end of the S-Video cable to the S-Video-in jack (2) on the audio/video cable.
20
Chapter 5 Advanced connections
