HP USB Hybrid ATSC NTSC QAM FM TV Tuner User Manual
Page 14
Connection 2: Connecting with regular TV or cable TV without a receiver
NOTE:
Computer features may vary. Cable lengths are not shown to scale.

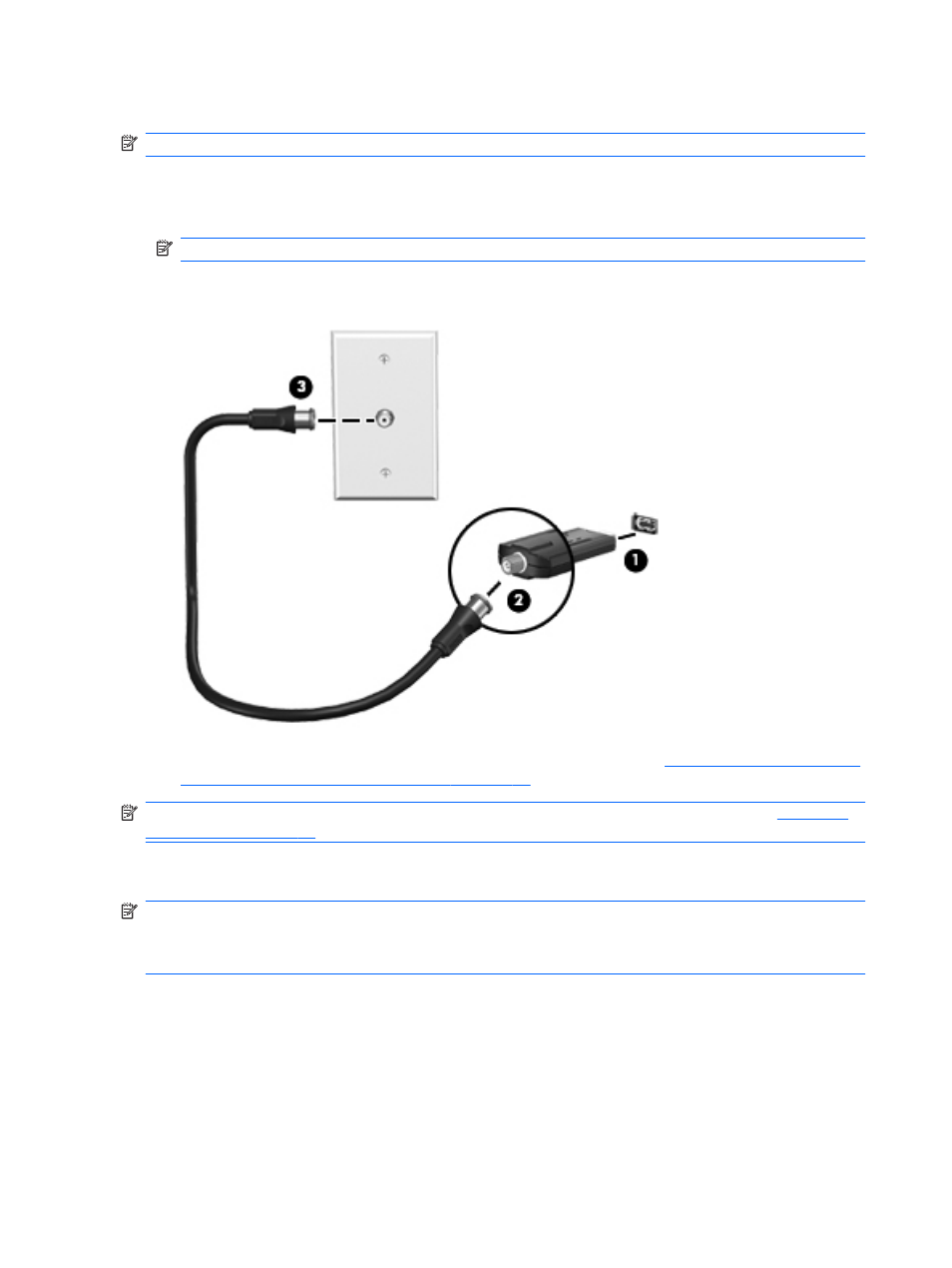

To connect the TV tuner to your regular TV or cable TV source without a receiver, follow these steps:
1.
Insert the TV tuner (1) into a USB port on the computer.
NOTE:
Due to power and bandwidth requirements, do not insert the TV tuner into a USB hub.
2.
Connect an RF coaxial cable (purchased separately) to the TV tuner (2) and then to your regular
TV or cable TV wall jack (3).
3.
Connect the remote sensor to a USB port on the computer. Refer to
sensor and infrared (IR) emitter cable on page 12
, for details.
NOTE:
For additional connection steps, such as adding a television, refer to Chapter 4,
.
Connection 3: Connecting with satellite TV or cable TV with a receiver
NOTE:
Refer to the manufacturer's instructions provided with your cable or satellite receiver for the
exact location and labeling of components on the receiver.
NOTE:
Computer features may vary. Cable lengths are not shown to scale.
10
Chapter 3 TV tuner setup
