Page 13

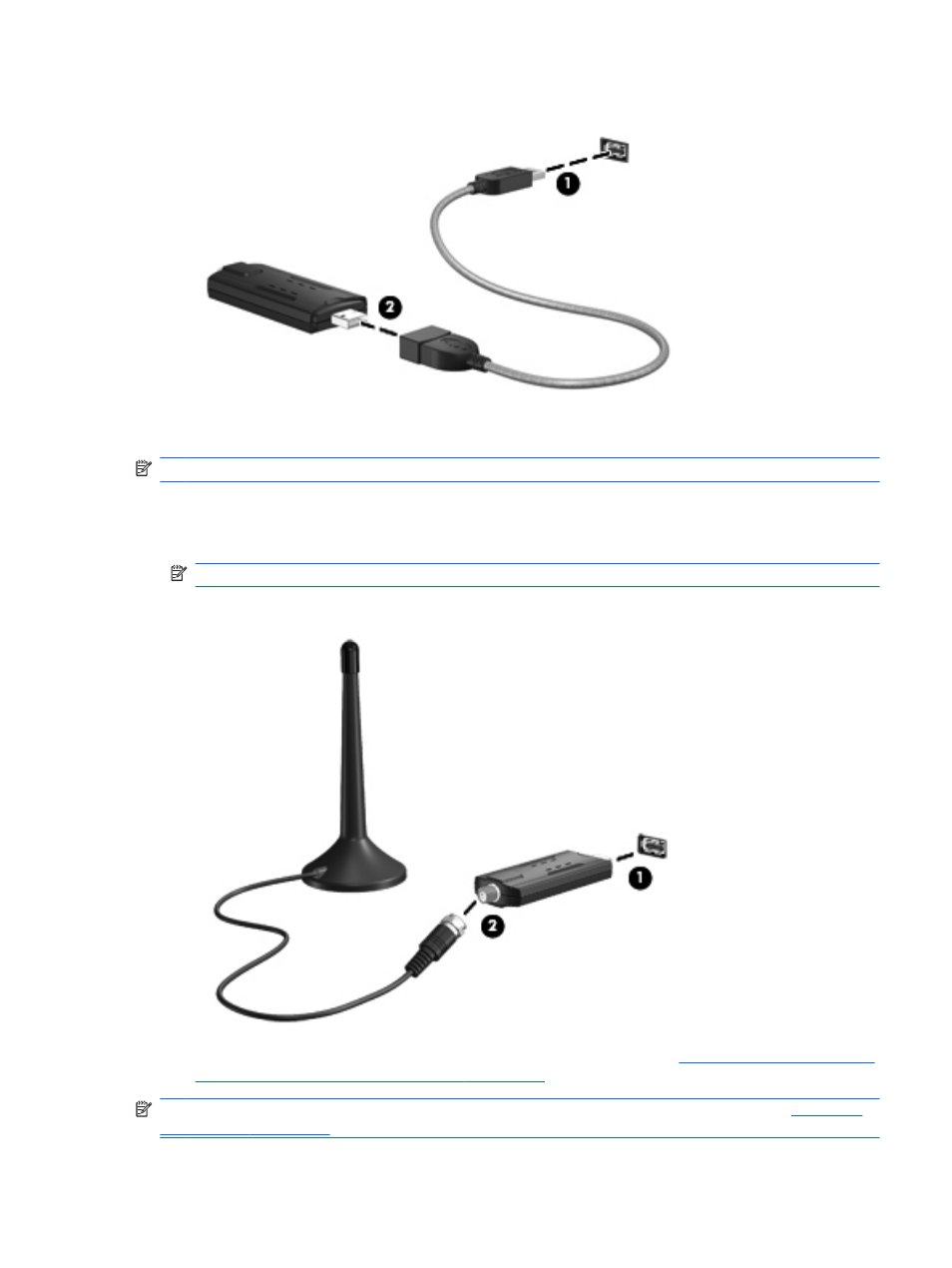

Insert the TV tuner (2) into the other end of the USB extender cable.

Connection 1: Connecting with an antenna

NOTE:

The antenna cable length is not shown to scale.

To install the TV tuner and connect it to the TV tuner antenna, follow these steps:

Insert the TV tuner (1) into a USB port on the computer.

NOTE:

Due to power and bandwidth requirements, do not insert the TV tuner into a USB hub.

Connect the TV tuner antenna cable (2) to the TV tuner.

Connect the remote sensor to a USB port on the computer. Refer to

, for details.

NOTE:

For additional connection steps, such as adding a television, refer to Chapter 4,

Step 4: Set up your audio/video connection
