Figure 2-1, Buttons and indicators – HP Integrity NonStop H-Series User Manual

Page 28

background image

Controls and Indicators

SL500 (M852x) Tape Library Installation and User’s Guide—541531-010

2 -2

Keypad

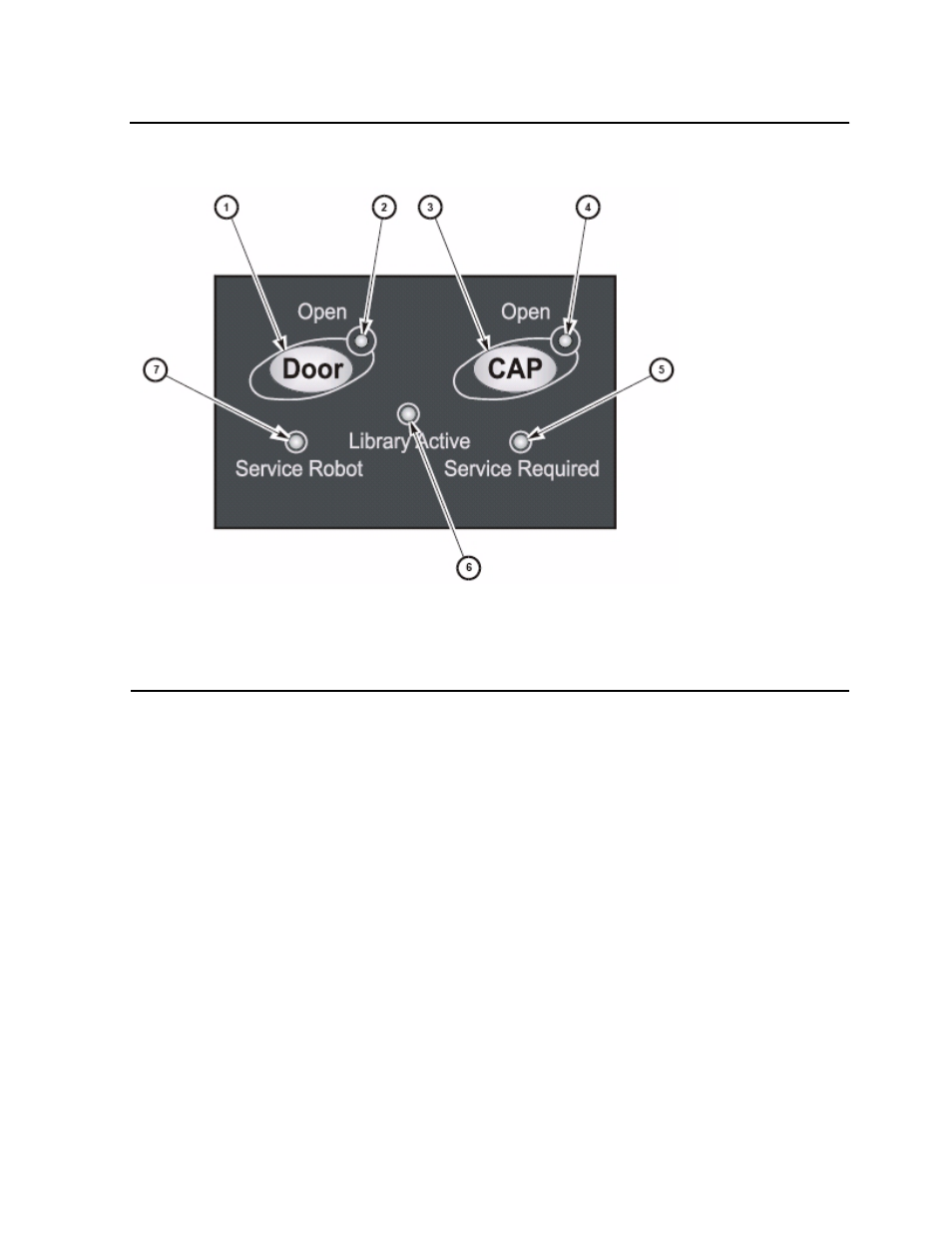

Figure 2-1. Buttons and Indicators

1. Door Open button 5. Service Required LED

2. Door Open LED 6. Library Active LED

3. CAP Open button 7. Service Robot LED

4. CAP Open LED
