Figure 1-8, Hand assembly – HP Integrity NonStop H-Series User Manual
Page 21
Overview of the Tape Library
SL500 (M852x) Tape Library Installation and User’s Guide—541531-010
1-13
Robotics Unit

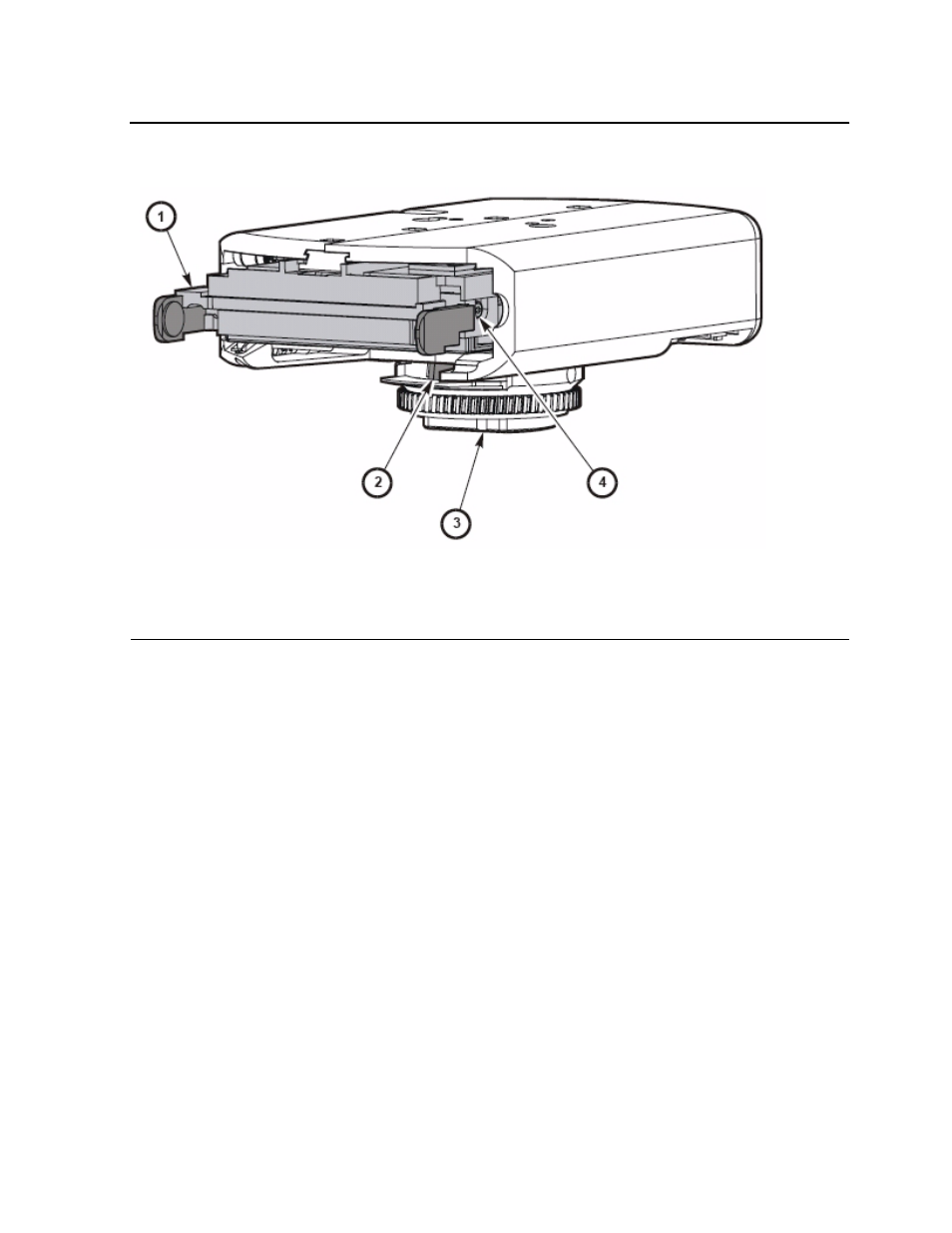

Figure 1-8. Hand Assembly
1. Gripper
2. Bar-code scanner
3. Wrist hub
4. Finger release screw
