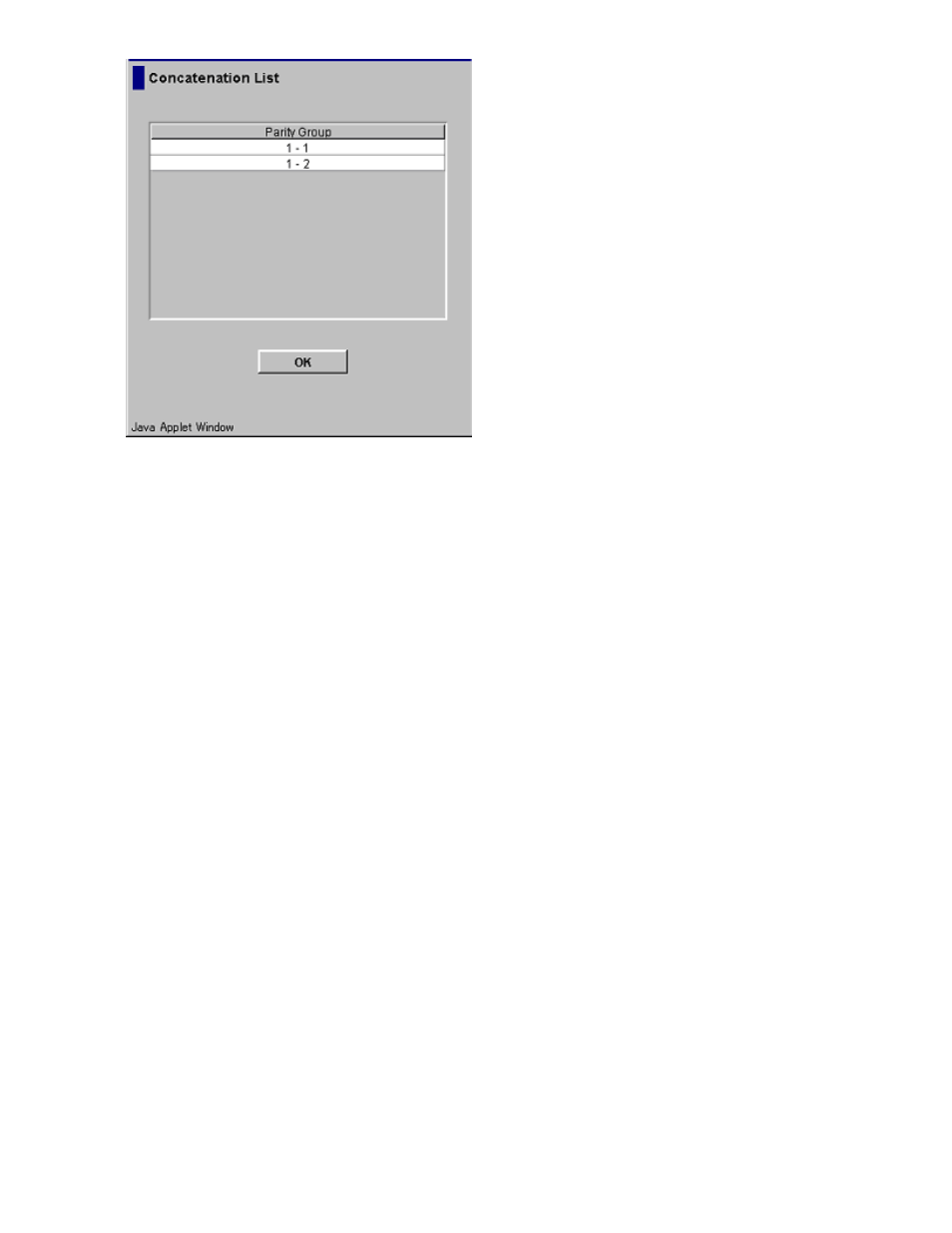

Figure 3 Concatenation List Dialog Box
Note: A parity group number that starts with a letter E indicates that the parity group consists of one or
more external LUs (for example, E1-1).
Creating a LUSE Volume
WARNING: LUSE creation is a destructive operation. Move and/or back up your data before proceeding.
There are three ways to create a LUSE volume:
• Using the LDEV Detail table (see “ Creating a LUSE Volume from the LDEV Detail Table ” on page 22)
• Using the LDEV Operation detail (Select an LDEV combo box) (see
“ Creating a LUSE Volume from the LDEV Operation Detail (Select an LDEV Combo Box) ” on page 24)
• Using the Volume Count combo box (see
“ Creating a LUSE Volume Using the Volume Count Combo Box ” on page 24) (recommended)
Creating a LUSE Volume from the LDEV Detail Table
To create a LUSE volume from the LDEV detail table:
1. Make sure that Remote Web Console is in Modify mode.
For detailed information about Modify mode, see the HP StorageWorks XP24000 Remote
Web Console User's Guide.
2. Select a CU number from the LDEV Information tree. The LDEV Detail table displays all LDEVs
in the selected CU.
3. In the LDEV Detail table, select and right-click the normal LDEVs or LUSE volumes that you want to
form the LUSE volume. This displays the Set LUSE Volume pop-up menu.
4. Select Set LUSE Volume.
A dialog box is displayed. If the displayed dialog box asks if you want to perform a LUSE
operation on a volume that has a path definition, follow step a below. If the displayed dialog
box asks if you want to perform a LUSE operation that will affect more than one SLPR or CLPR,
follow step b below. If the displayed dialog box is the Set LUSE Confirmation dialog box,
follow step c below.
a. To perform a LUSE operation on a volume that has a path definition, click OK. If a message
appears and asks if you want to perform a LUSE operation that will affect more than one
SLPR or CLPR, go to step b . If this message does not appear, go to step 5 .
22 Performing LUSE Operations
