Hardware options installation 101

b.

Disconnect each power cord from the server.

4.

For tower models, do the following:

a.

Place the server on a flat, level surface with the access panel facing up.

b.

Remove the access panel (on page

23

).

5.

For rack models, do the following:

a.

Extend the server from the rack (on page

24

).

b.

Remove the access panel (on page

23

).

c.

Release thumbscrews and remove the rack bezel.

6.

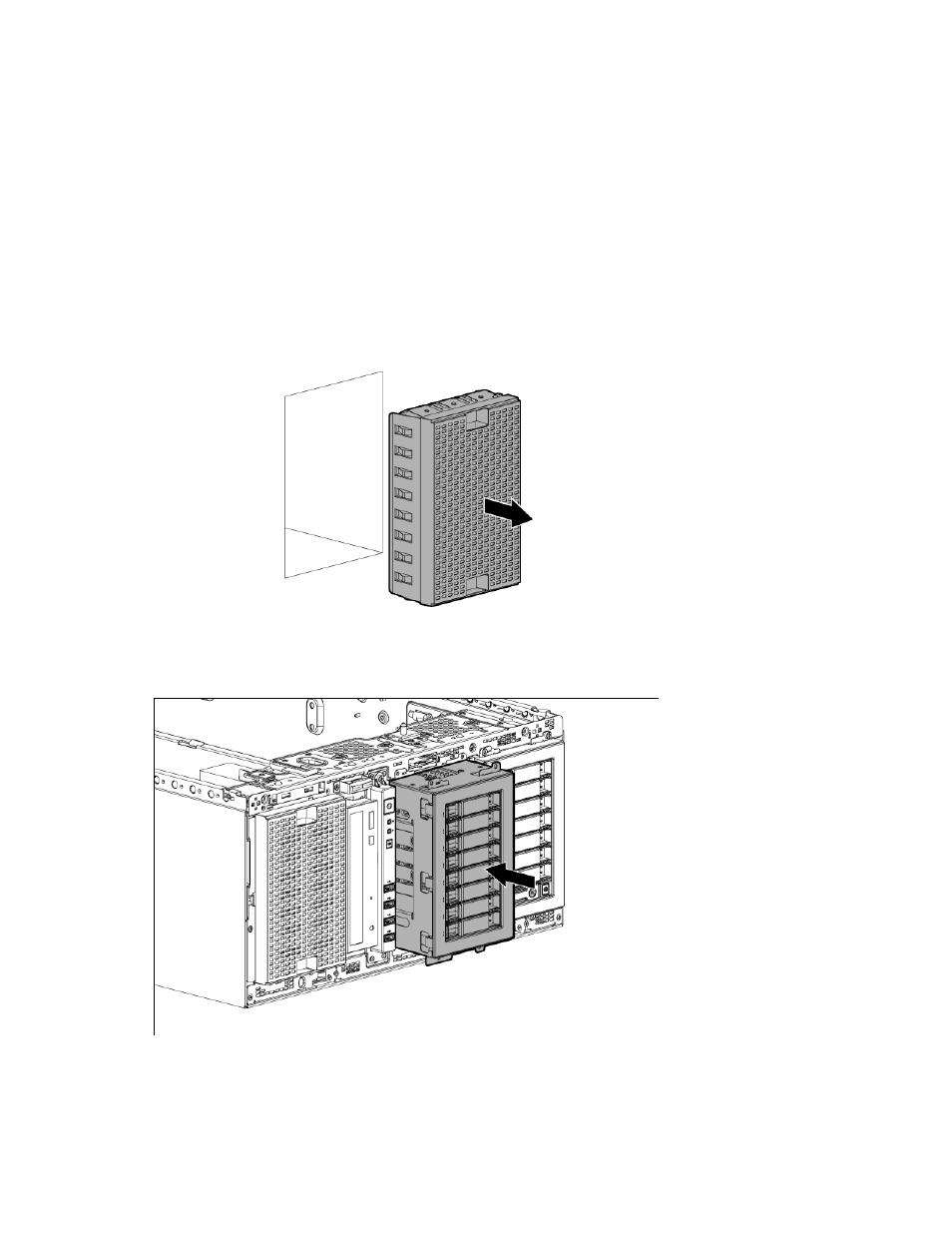

Remove the existing component cage cover for the SFF drive cage.

7.

Install the SFF drive cage with backplane expander option halfway into the server.

8.

Remove the air baffle (on page

25

).

9.

Remove the fan cage.
