Hardware options installation 72

12.

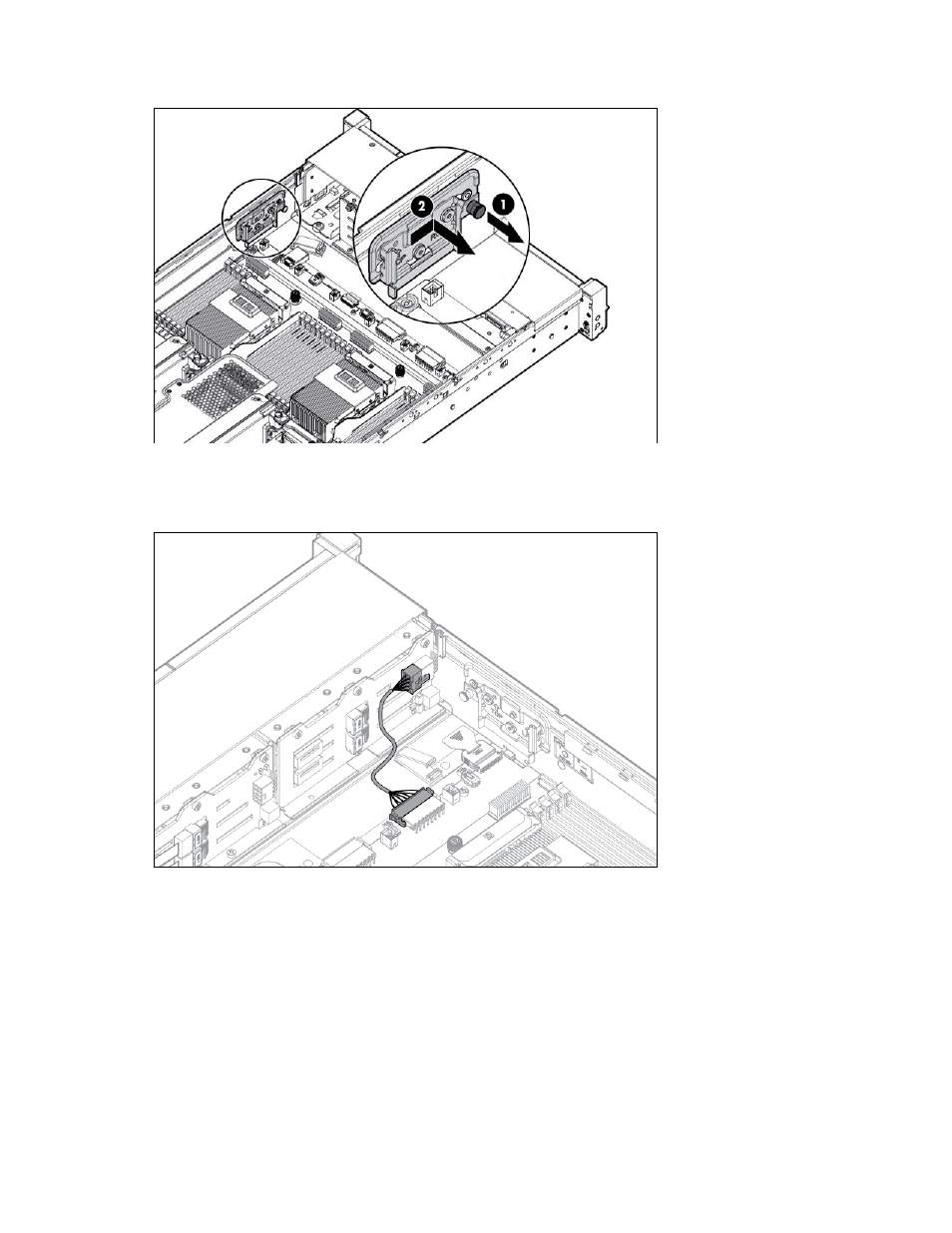

To access the cables, remove the fan bracket on the right side of the chassis.

13.

Connect the cables:

a.

Connect one end of the power cable to the SAS backplane and the other end to the power
connector on the system board.
