Component identification 7

Component identification

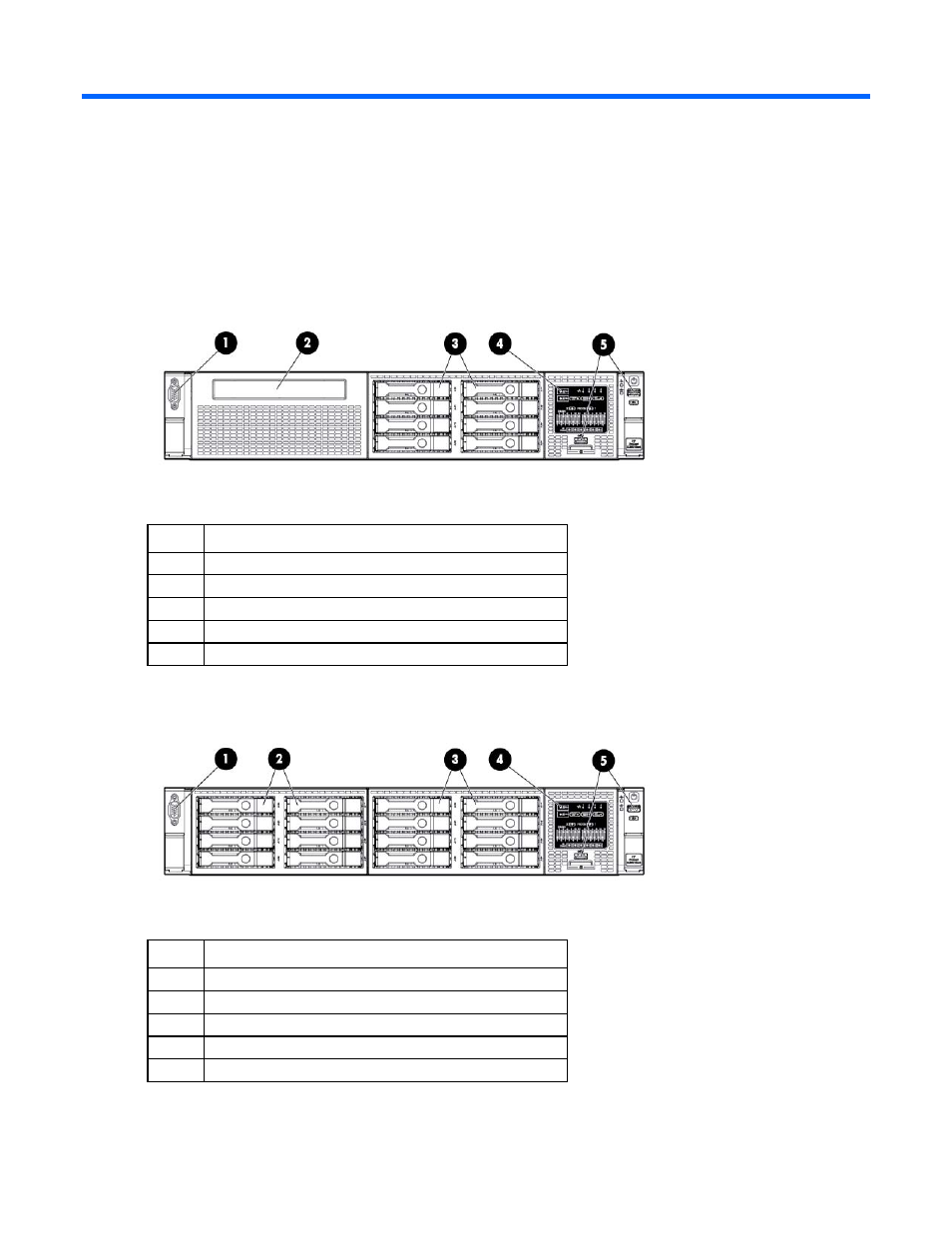

Front panel components

•

SFF model

Item

Description

1

Video connector

2

SATA optical drive bay

3

Drive bays

4

Systems Insight Display

5

USB connectors (2)

•

SFF model with optional hard drive cage

Item

Description

1

Video connector

2

Drive bays (box 1)

3

Drive bays (box 2)

4

Systems Insight Display

5

USB connectors (2)
