Systems Insight Display LEDs

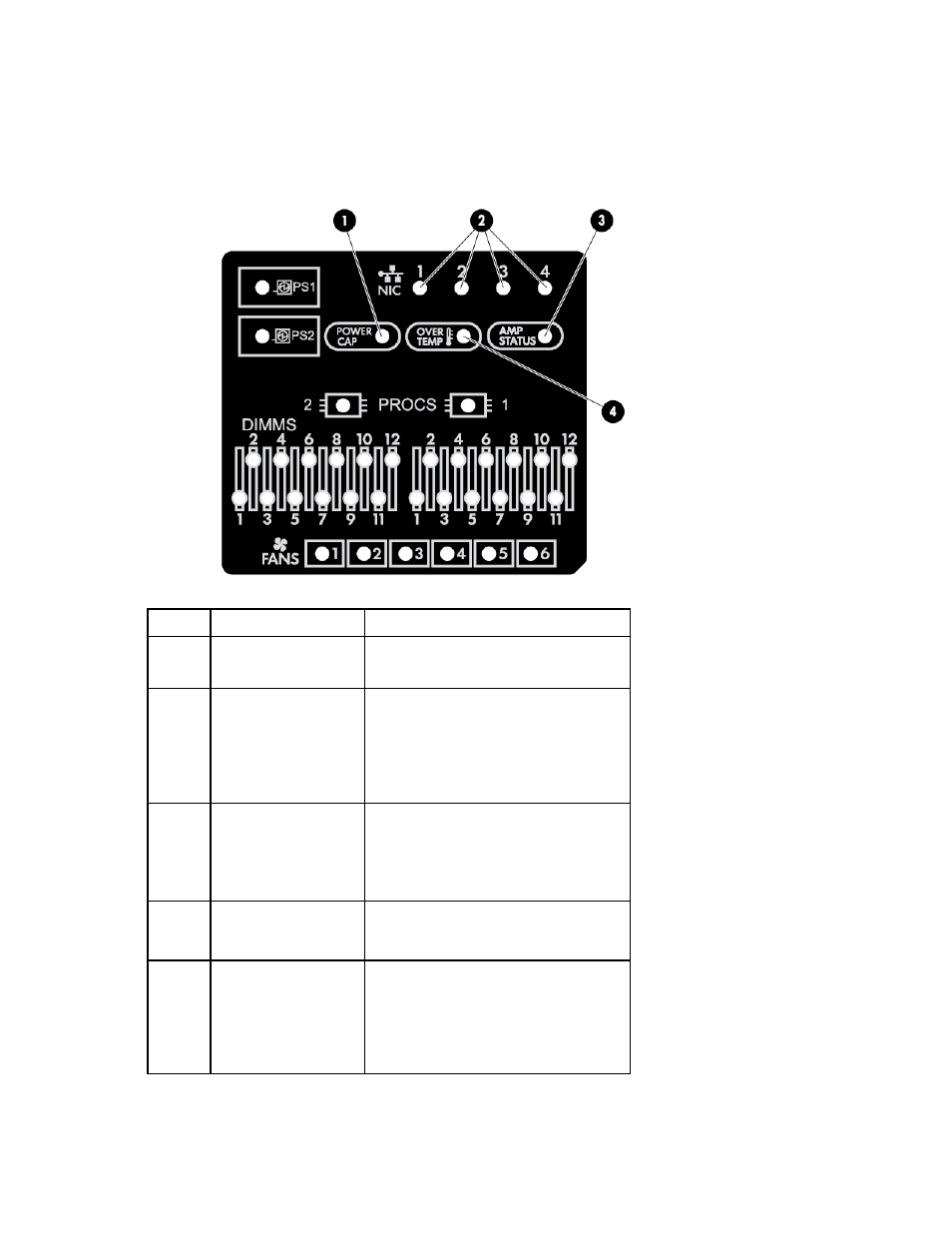

The HP Systems Insight Display LEDs represent the system board layout. The display enables diagnosis with
the access panel installed.
Item Description Status
1 Power cap Off = System is in standby, or no cap is set.
Solid green = Power cap applied
2
NIC link/activity Off = No link to network. If the power is off,
view the rear panel RJ-45 LEDs for status
("
Rear panel LEDs and buttons " on page
12 ).
Flashing green = Network link and activity
Solid green = Network link
3 AMP status Off = AMP modes disabled
Solid green = AMP mode enabled
Solid amber = Failover
Flashing amber = Invalid configuration
4 Over temp Off = Normal
Solid amber = High system temperature
detected
— All other LEDs Off = Normal
Amber = Failure
For more information on the activation of
these LEDs, see "Systems Insight Display
LED combinations (on page
11 )."
