Attaching the Feet
4 Megabit Modem 310F and 320F User Manual
The shipping carton also contains the items described in the following table.
A
TTACHING THE
F
EET

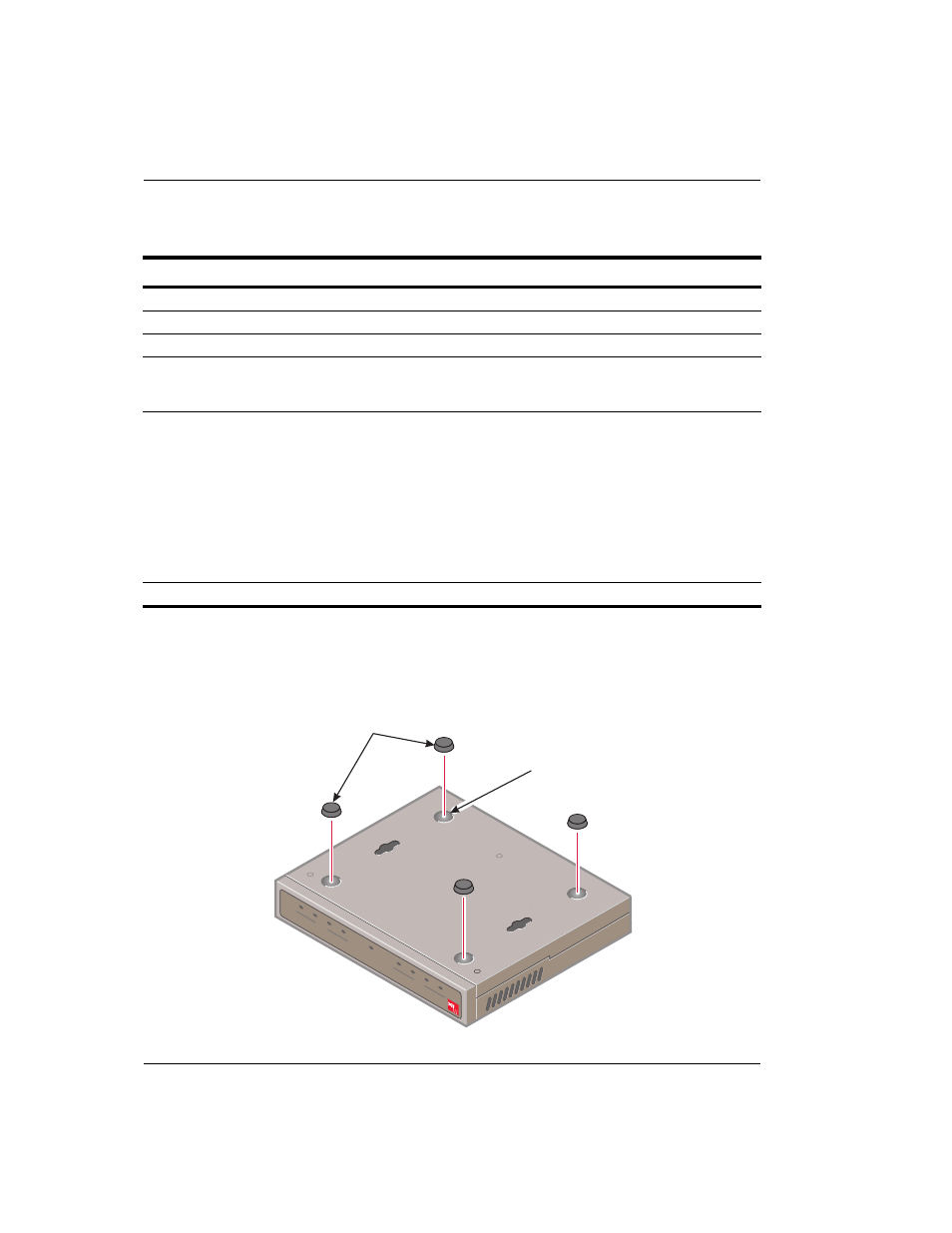

Attach four adhesive-backed rubber feet to the footprint recesses on the bottom of the modem.
Item Function
Black cable Connects the modem Ethernet port to a PC NIC using a straight-through cable.
Yellow cable Connects the modem Ethernet port to a network hub using a crossover cable.
Gray ADSL cable Connects the modem ADSL port to an RJ-11 wall jack that has DMT ADSL service.
Gray console
cable and adapter Connects the modem RS-232 port to an ASCII terminal or PC running a terminal emulation
program for configuration and management. Cable has RJ-45 connectors. The adapter
converts the RJ-45 port to a DB-9.
Universal power
supply Provides primary power to the modem and establishes a safety ground. The Megabit
Modem 310F and 320F are available with a variety of power cords. When you order your
modem, choose one of the following as the last number in the product PN (Megabit Modem
310F is PN 150-2103-7x and Megabit Modem 320F is PN 150-2102-7x) to indicate which
power cord you need:
• 2 does not include a power cord
• 3 includes a North American power cord
• 4 includes a European power cord.
• 5 includes a UK/Ireland power cord
Rubber Feet (4) Attaches to the base of the modem.
Rubber feet
Recess
LA N
S D S L
MEGABIT
MODEM
310F
LI N K
TX
R X
C O L
P W R
S Y N C
TX
R X
M A R
