Megabit Modem 310F and 320F User Manual
9
3
P
REPARING
FOR
C
ONFIGURATION
AND
M
ANAGEMENT
You configure the Megabit Modem 310F and 320F using an ASCII terminal or PC running a
terminal emulation program. This chapter provides the set up procedures.
C
ONNECTING
A
T
ERMINAL

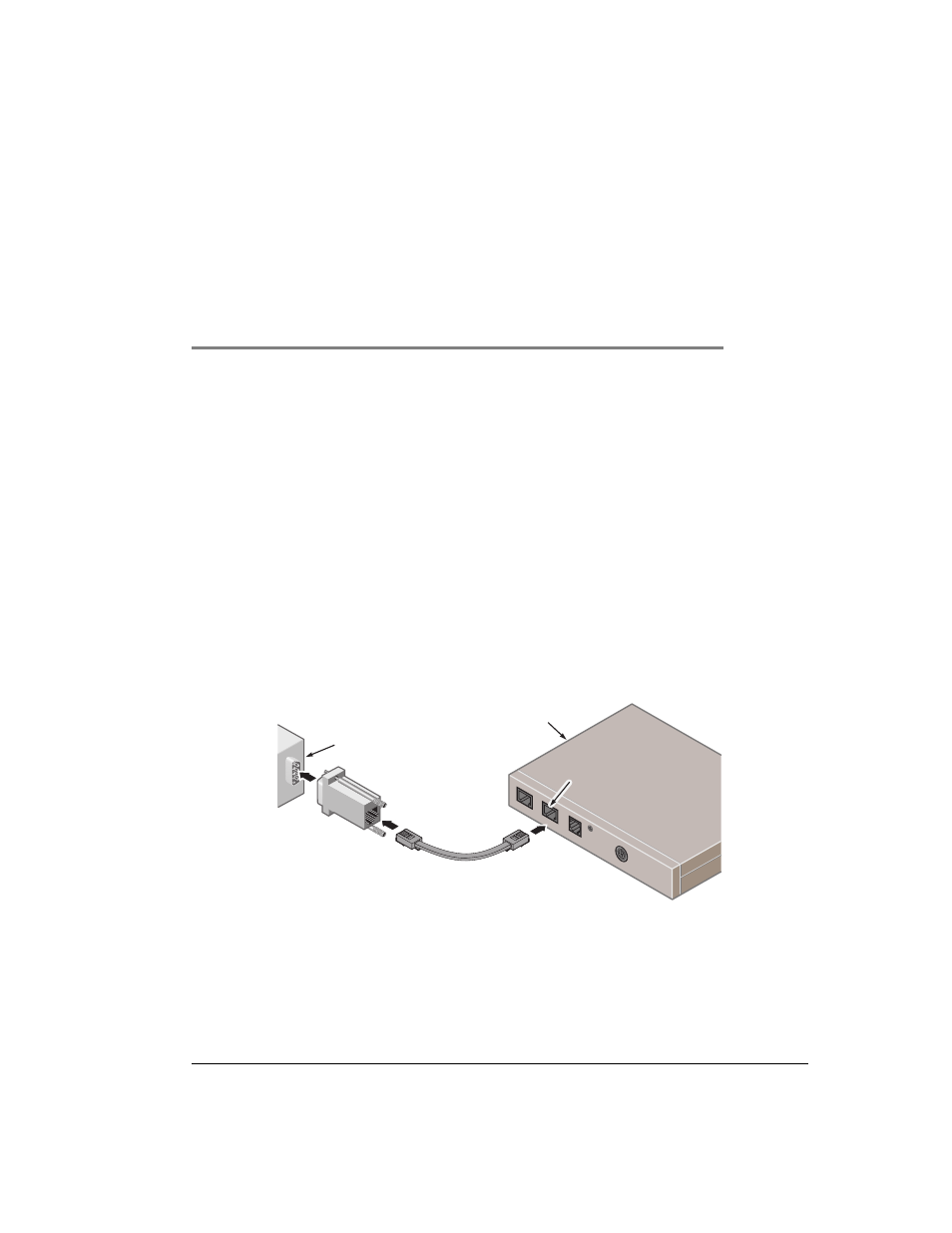

Connect the modem to an ASCII terminal or PC running a terminal emulation program:
1
Plug the console adapter into the standard 9-pin COM port on the terminal or PC and
tighten the captive screws until they are snug. (Skip this step if you are using an ASCII
terminal that has an RJ-45 jack.)
2
Connect one end of the gray console cable to the adapter or ASCII terminal RJ-45 jack.
3
Connect the other end of the gray console cable
to the modem RS-232 RJ-45 port.
Megabit Modem 310F or 320F
10BASE-T
RS-232 port
PO
W
ER
PO
W
ER
RS-232
DS
L
PC
